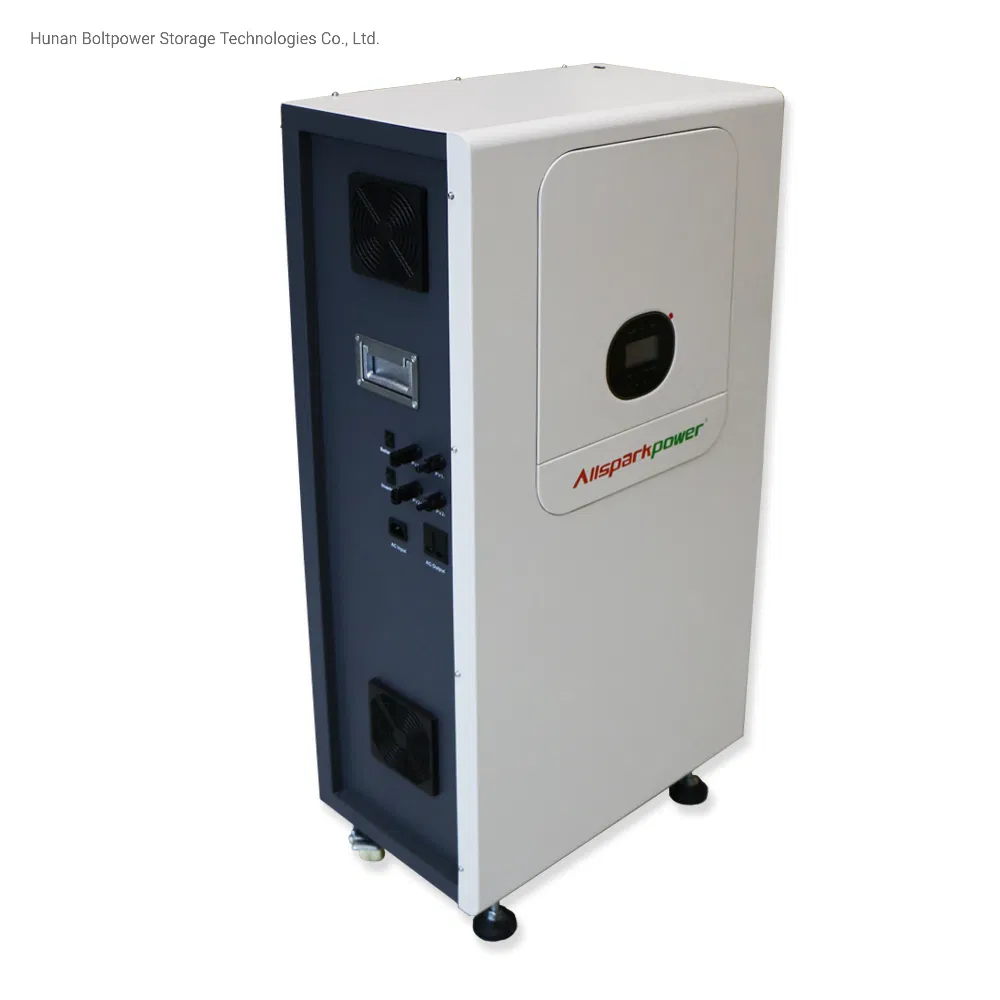

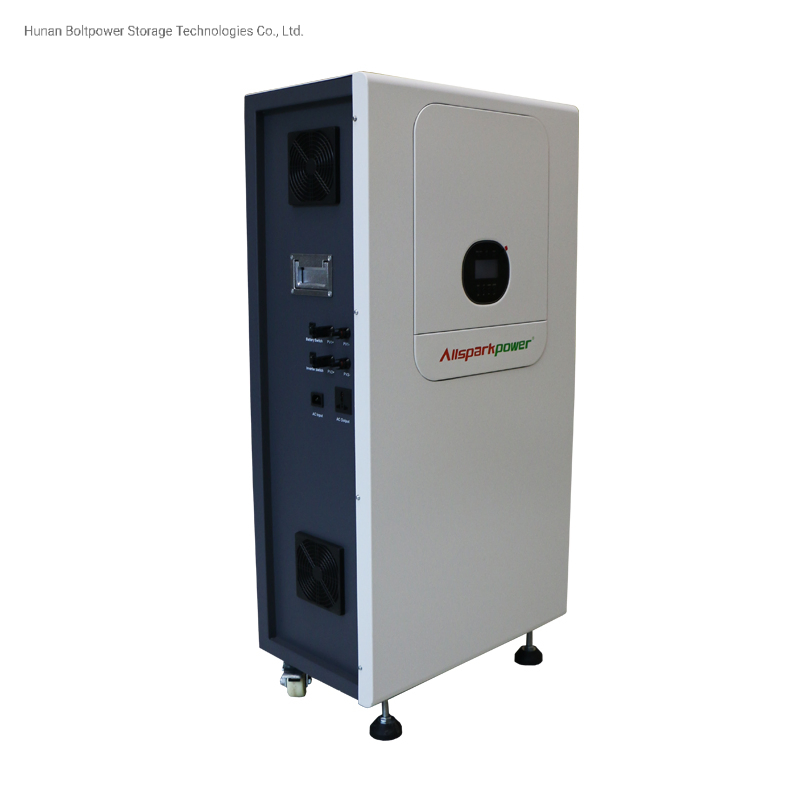

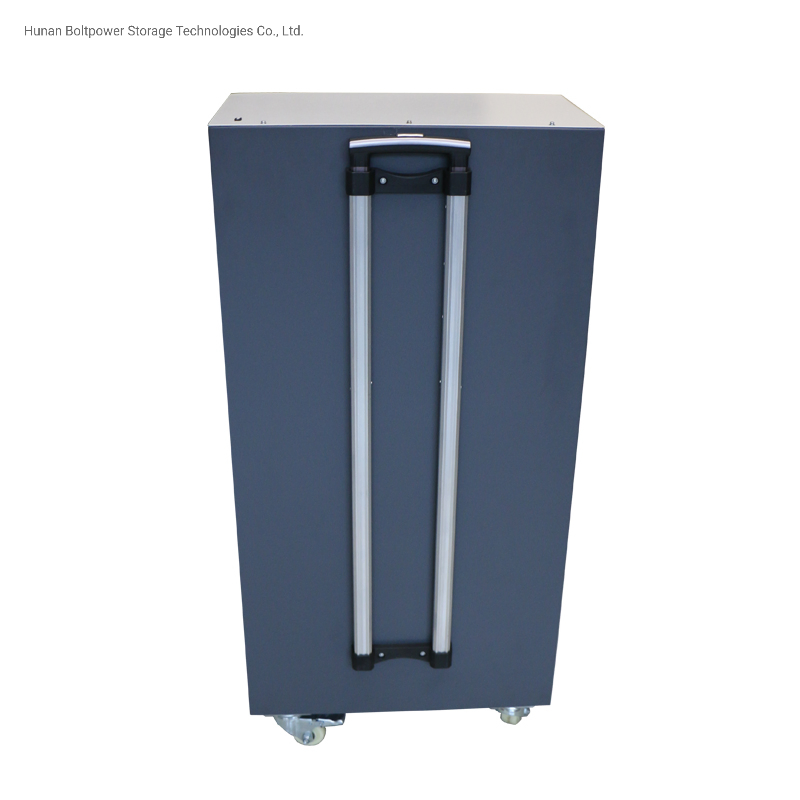

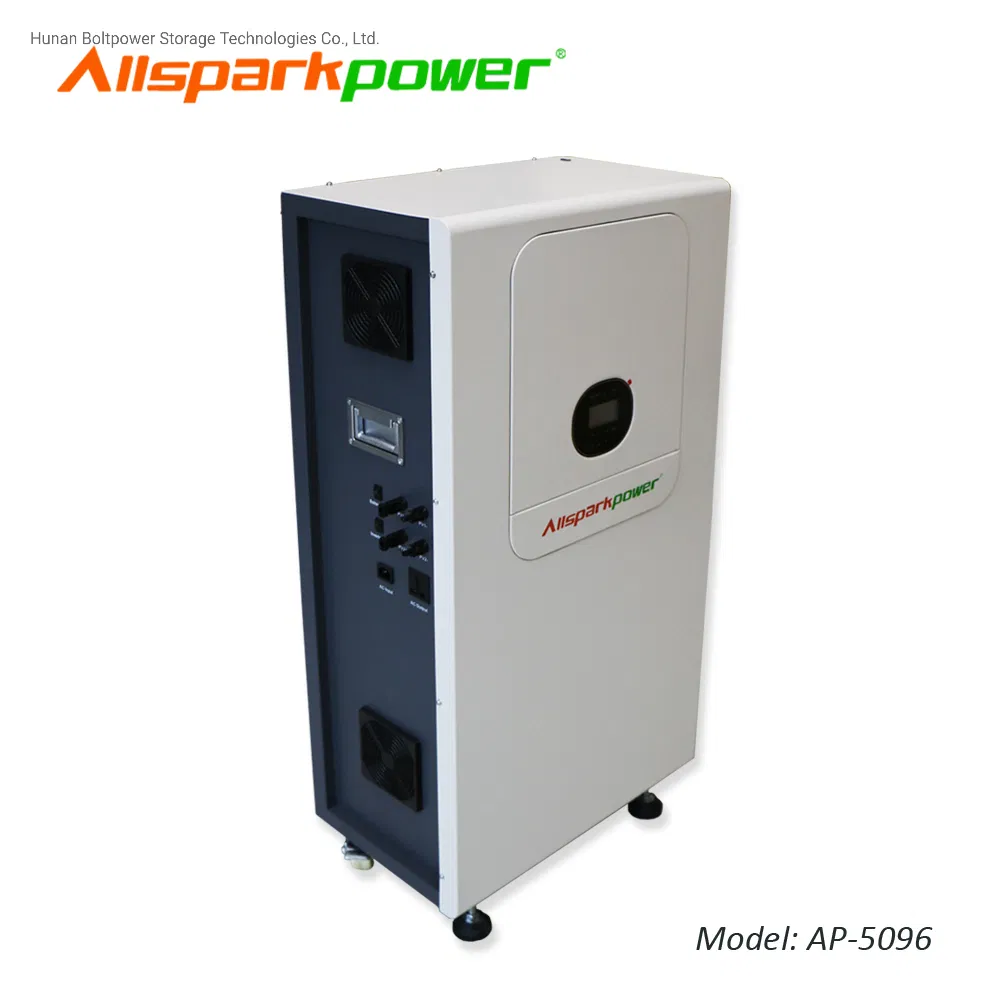

Solar Power Energy Srorage System
Allsparkpower is an integrated system including PV controller, battery packs, battery management system, inverter and charger, with home energy management and energy efficiency management system.Self-powered home Use solar and Allsparkpower to reduce reliance on the grid and run your home off solar......
Send Inquiry
Product Description
Allsparkpower is an integrated system including PV controller, battery packs, battery management system, inverter and charger, with home energy management and energy efficiency management system.
Self-powered home
Self-powered home
Use solar and Allsparkpower to reduce reliance on the grid and run your home off solar day and night.
Backup Power
Protect your home from a power outage with seamless and reliable backup power.
Energy saving
Reduce your electricity bill, if your utility offers a time-of-use rate plan.
Home energy control
Manage and control your home energy use our mobile App.
| Feed-in Type | Single & Split-Phase | ||||||||
| Output Voltage | 230 vac (charge and discharge) | ||||||||
| Storage Ability | 3.6 kwh | 4.8kwh | 9.6kwh | 4.8kwh | 7.2 kwh | 9.6kwh | 14.4kwh | ||
| Max Solar input | 2.4kwp | 2.4kwp | 2.4kwp | 4.5kwp | 4.5kwp | 4.5kwp | 4.5kwp | ||
| PV Side Max. Input Voltage | 145 VDC | ||||||||
| MPPT Voltage | 60-110 VDC | ||||||||
| PV Charging Max Current (A) | 30A | 60A | |||||||
| AC Charging Max Current (A) | 12 A | ||||||||
| Charging time | < 3 Hours | ||||||||
| Continuous Output Power | 3 kw | 3 kw | 3 kw | 5 kw | 5 kw | 5 kw | 5 kw | ||
| Peak power | 4 kw (discharge only) | 4 kw (discharge only) | 4 kw (discharge only) | 7 kw (discharge only) | 7 kw (discharge only) | 7 kw (discharge only) | 7 kw (discharge only) | ||
| Weight | 56 kg | 84kg | 130kg | 92kg | 120kg | 138kg | 178kg | ||
| Size(L*W*H) | 550*300*525mm | 550*234*1038 mm | 550*340*1130 mm | 550*340*1130 mm | 550*340*1130 mm | 550*340*1130 mm | 550*457*1126 mm | ||
| Imbalance for Single-Phase Loads | 100% | ||||||||
| Power Factor output Range | +/- 1.0 adjustable | ||||||||
| Battery DC voltage | 48V | ||||||||
| Depth of Discharge | 90% | ||||||||
| Operating Humidity(RH) | Up to 100%, condensing | ||||||||
| Operating Temperature | -10ºC-50ºC / 14°F~122°F | ||||||||
| Storage Temperature | -20ºC-60ºC / 4°F~140°F | ||||||||
| Maximum Altitude | 2000m | ||||||||
| Ingress Rating | IP 65 | ||||||||
| Noise Level @1m | <35 dBA at 30ºC | ||||||||
| Certificates | CE, MSDS, UN38.3, ISO:9001 | ||||||||
| Mounting Options | Floor | ||||||||
| Warranty | 10 years | ||||||||
| Packaging | Standard Export Carton with pallet | ||||||||
