Mono Solar Panel PV Module for Solar Power System
High Modules Conversion Efficiency, monocrystalline solar panel Accept for customize size voltage and etcProduct DescriptionHigh efficiency crystalline solar cell; Long lifetime span: 25 years;Less power decrease: Decrease in peak power of the solar modules shall be below 8% within the first 10 year......
Send Inquiry
Product Description
High Modules Conversion Efficiency, monocrystalline solar panel
Accept for customize size voltage and etc
Product Description
High efficiency crystalline solar cell; Long lifetime span: 25 years;
Less power decrease: Decrease in peak power of the solar modules shall be below 8% within the first 10 years and within the first 20 years shall be below 10%;
Advanced surface texturing process increases light absorption and efficiency;
Sealed modules with tempered glass, high transmit rate and strong mechanical resistance; EVA resin, and a waterproof film.
Applications
Solar street light
Commercial Lighting,Home Lighting,Horticultural
Residential Roof
This solar light relies on solar energy, which is clean, endless and environment-friendly. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. The charged bulb can be used as a mobile lighting lamp.
The photovoltaic panel is fixed in the roof or a place with sufficient sunlight
Energy Saving, Long Life Expectancy, Low Power Consumption. The system is mainly composed of solar panel, light source and battery(we just supply for solar panel)
Manufacture process
Company inforamtion
JuGuangNeng solar is a professional manufacturer that specialized in various solar panels from 0.1W to 375W with 20-year solar panels' production experiences.
Qualified products covers Small watt solar panel(PET/PCB laminated and Epoxy resin solar panel), Tempered glass solar panel(5W-375W). Semi flexible Solar panel (1W-120W)with SUNPOWER® solar cell, Foldable solar charger, flexible amorphous ETFE Solar Panel and etc
Accept for customize size voltage and etc
Product Description
High efficiency crystalline solar cell; Long lifetime span: 25 years;
Less power decrease: Decrease in peak power of the solar modules shall be below 8% within the first 10 years and within the first 20 years shall be below 10%;
Advanced surface texturing process increases light absorption and efficiency;
Sealed modules with tempered glass, high transmit rate and strong mechanical resistance; EVA resin, and a waterproof film.
Applications
Solar street light
Commercial Lighting,Home Lighting,Horticultural
Residential Roof
This solar light relies on solar energy, which is clean, endless and environment-friendly. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. The charged bulb can be used as a mobile lighting lamp.
The photovoltaic panel is fixed in the roof or a place with sufficient sunlight
Energy Saving, Long Life Expectancy, Low Power Consumption. The system is mainly composed of solar panel, light source and battery(we just supply for solar panel)
| Module number | JGN360W-M |
| Peak power / Pm(W) | 360±3% |
| Open circuit voltage / Voc(V) | 43.2 |
| Max. power voltage / Vmp(V) | 36.0 |
| Max. power current / Imp(A) | 10 |
| Short circuit current / Isc(A) | 10.8 |
| Solar cells origin | Taiwan |
| Solar cells efficiency | over 22.4% |
| Grade of solar cells | A grade |
| Dimensions(L*W*T) / Weight(kgs) | 1956*987*40mm / |
| Solar cell / Size of solar cells /solar cells arrangement | monocrystalline silicon 156.75*156.75*0.19mm/6*12, 72-cell in series |
| Front cover(material/thickness) | Low-iron tempered glass / 3.2mm |
| Encapsulation(material) | Ethylene Vinyl Acetate(EVA) |
| Solar backsheet(material/color) | TPT / White-color(black color is optional) |
| Frame(material/color) | Anodized aluminium alloy / Silver |
| Junction box protection degree | ≥IP65 BX2020D |
| Cable /Cable connector Model | 900mm solar cable with MC4 compatible connectors |
| Standard Testing Conditions | Irradiance:1000W/m³, Cell temperature:25ºC, AM:1.5(air mass). |
| Max. static load, front(e. g.: snow/wind) | 5400Pa |
| Max. static load, back(e. g.: wind) | 2400Pa |
| Max. hailstone impact (diameter/velocity) | 25mm; 23m/s |
| Max. series fuse rating (A) | 6pcs of 12A by-pass diodes. |
| Max. system voltage (V) | 1000V DC |
| Application Class | Class A |
| Operating temperature range | -40ºC- +85ºC |
| NOCT | 45±2ºC |
| Power temperature coefficient | -0.43%/ºC |
| Current temperature coefficient | 0.08%/ºC |
| Voltage temperature coefficient | -0.37%/ºC |
| Lifespan | 25 years |
| Warranty | Power output warranty: 10 years over 90%, 25 years over 80%; |
| Product Certifications / Standards | CE, IEC61215 |
| Other Certifications | ISO9001:2008, RoHS |

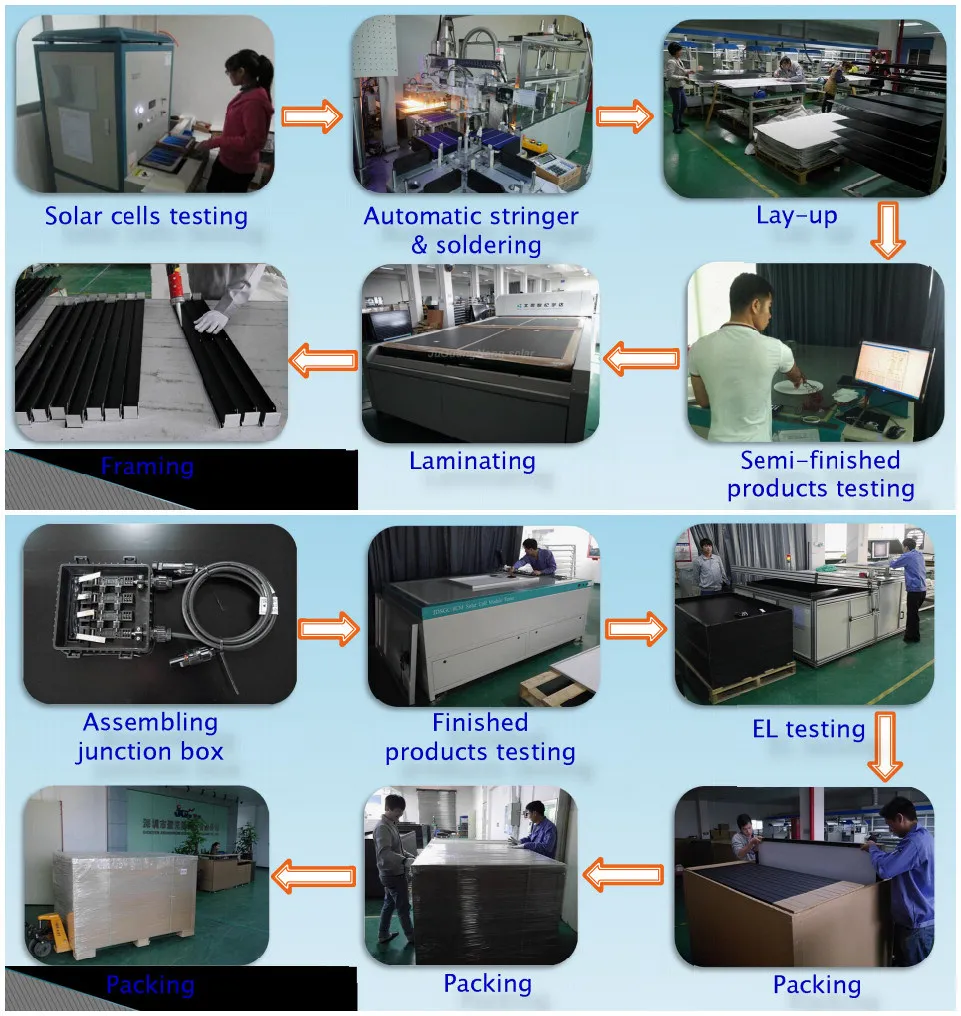

Manufacture process
Company inforamtion
JuGuangNeng solar is a professional manufacturer that specialized in various solar panels from 0.1W to 375W with 20-year solar panels' production experiences.
Qualified products covers Small watt solar panel(PET/PCB laminated and Epoxy resin solar panel), Tempered glass solar panel(5W-375W). Semi flexible Solar panel (1W-120W)with SUNPOWER® solar cell, Foldable solar charger, flexible amorphous ETFE Solar Panel and etc
