Qbh Customized Bracket Rack Mounting for Monocrystalline Solar Panel System
QBH Solar Roof Tilting Bracket System has great flexibility for the design and planning of Commercial or Civil Roof Solar System.It is used for parallel installation of common framed solarpanels on sloping roofs.Unique aluminum extrusion guide rail, inclined mounting parts, various card blocks and v......
Send Inquiry
Product Description

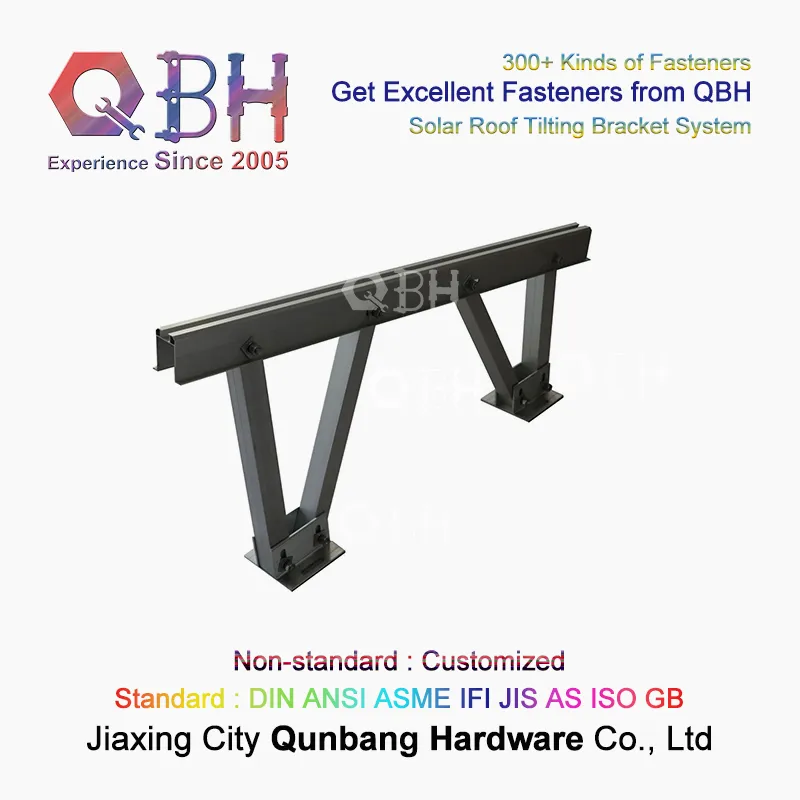

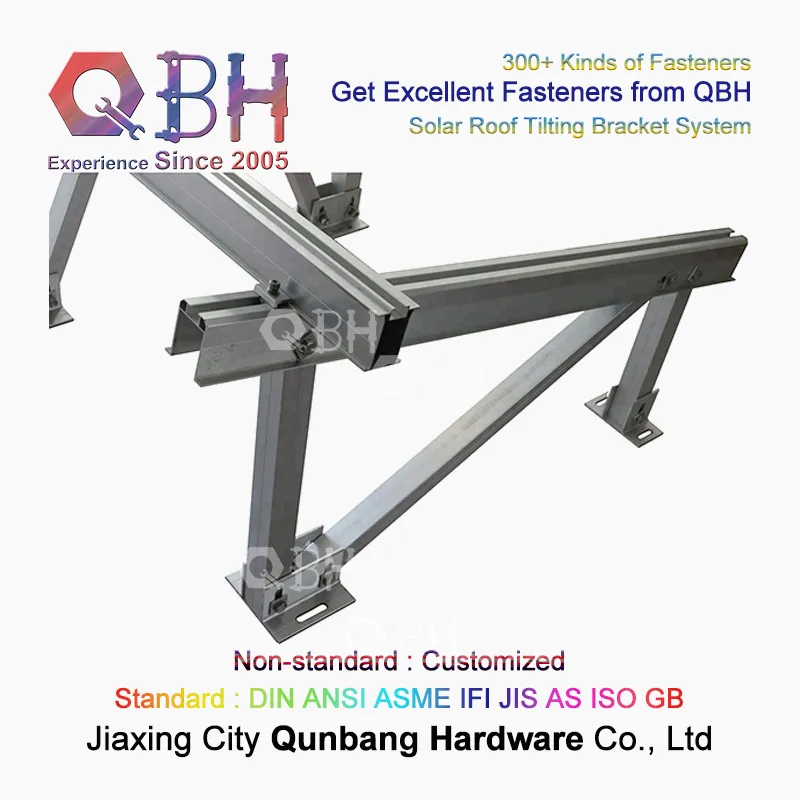

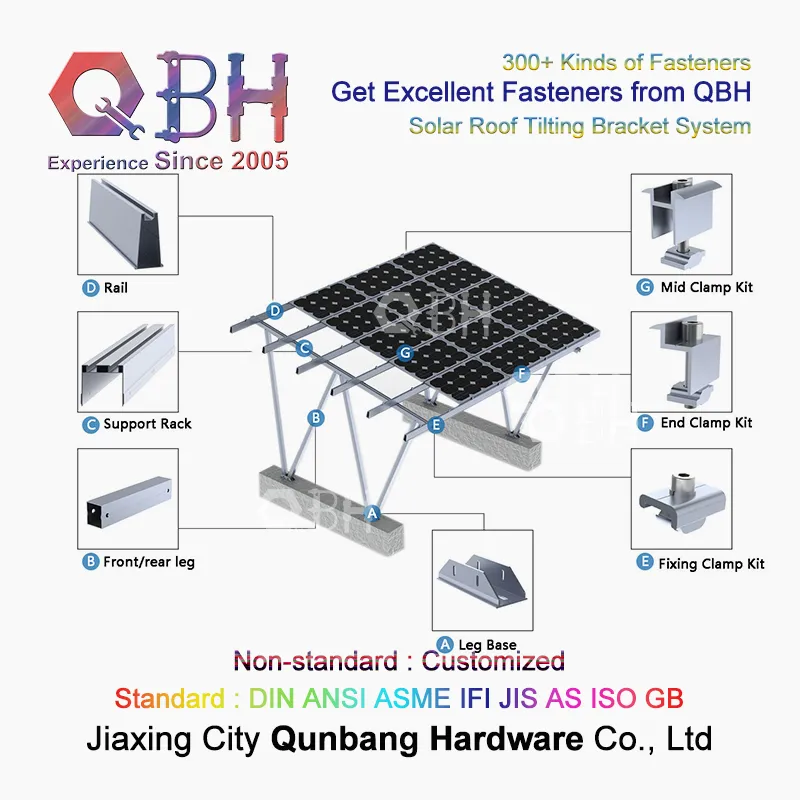

QBH Solar Roof Tilting Bracket System has great flexibility for the design and planning of
Commercial or Civil Roof Solar System.It is used for parallel installation of common framed solar
panels on sloping roofs.
Unique aluminum extrusion guide rail, inclined mounting parts, various card blocks and various roof
hooks can be pre-installed to make the installation easy and fast, Saving Your Labor Cost and
Installation Time.
The Customized Length eliminates the need for on-site welding and cutting, thus ensuring high
corrosionresistance, structural strength and aesthetics from the factory to the installation site.
QBH Adjustable Solar Panel Tilt Mount Bracket System is suitable for the flat tin roof solar panel
tilting brackets with great flexibility both for commercial and residential roof solar system. Patented
and innovative rail design, certified mounting solution. Extra tilt angle maximizes the solar panel output.
Solar panel tilt mounting brackets can be used on any flat surface. Ideal for positioning solar panels at
an angle on a rooftop. Maximum tilt angles depend on the size of the panel. Lightweight aluminum
alloy material. Ideal for easy transportation and safe mounting.
Product Features and Advantages:
1. Easy Installation.
The inclined mounting parts can be installed from Any Position of Aluminum Alloy Extrusion Guide
Rail, and pre-installed with the height of the clamping block and hook, thus minimizing the installation
time and cost.
2. High Durability.
With the design concept of 20 Years' Service Life and 10 Years' Quality Assurance, all structural
parts are high-strength stainless steel and anodized aluminum alloy to ensure the high durability of
materials.
3. Withstand Extreme Weather.
The grid solar energy inclined roof support system is designed by experienced engineers according
to AS/NZS 1170 and other international common standards to withstand extreme weather conditions.
The main stress components of the system are tested in various ways to ensure its structural bearing
capacity.
4. Wide Applicability.
The grid solar energy inclined roof support system is applicable to all kinds of Universal Framed
Solar Panels installed on all types of Roofs in the Existing Market, ranging from Small Solar
Energy Systems to Large and Even Several Megawatt Systems.
Specifications:
Material: 304.
High-quality with AS/NZS 1170.
Competitive price from QBH.
Roof hook 304 material.
Choosing an ideal solar mounting system is an important for the installation.
The objective is a solidly mounted roof hook that will last for many years and withstand all kinds of weather.
QBH company provides you the products:
Special designed for solar panel on the roof.
Solar roof hook features an enormous load capacity.
State-of-the-art production processes guarantee the cost-efficient manufacturing of the roof hook.
Well and high-quality control from QBH company.
Easy to install.
These substantial stainless steel brackets are used to secure the mounting rails to the roof beams.
These are suitable for tiled roofs only, but versions for slate roofs and metal roofs are also available.
Materials and Chemical Compstition
| CHEMICAL COMPOSI(% ) | |||||||||
| Type | C | Si | Mn | P | S | Ni | Cr | Mo | Cu |
| ≤ | ≤ | ≤ | ≤ | ≤ | ≥ | ≥ | ≥ | ≈ | |
| 201Cu | 0.08 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 14.0-17.0 | 2.0-3.0 | |
| 201 | 0.15 | 1.00 | 8.50 | 0.06 | 0.03 | 3.50-5.50 | 16.0-18.0 | ||
| 202 | 0.15 | 1.00 | 7.5-10 | 0.06 | 0.03 | 4.00-6.00 | 17.0-19.0 | ||
| 301 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 5.00-8.00 | 16.0-18.0 | ||
| 302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | ||
| XM7 (302HQ) | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.5 | 17.0-9.00 | 3.0-4.0 | |
| 303 | 0.15 | 1.00 | 2.00 | 0.20 | ≥0.15 | 8.00-10.0 | 17.0-19.0 | ≤0.60 | |
| 304 | 0.07 | 1.00 | 2.00 | 0.035 | 0.03 | 8.00-10.0 | 18.0-20.0 | ||
| 304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-10.0 | 17.0-19.0 | 1.0-3.0 | |
| 304M | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.50-10.0 | 18.0-20.0 | ||
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (12Ni) | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L (10Ni) | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 9.00-13.0 | 17.0-19.0 | Ti≤5*C% | |
| 2520 | 0.08 | 1.00 | 2.00 | 0.035 | 0.03 | 19.0-22.0 | 24.0-26.0 | ||
Ground Mounting System Earth Screw Product Description:
| Item | Solar Panel Bracket Ground Screws |
| Supplier | QBH |
| Web | qbfastener.en.made-in-china.com |
| 1.Outer diameter | 48 60 68 76 89 114mm |
| 2.Length | 600-3500mm |
| 3.The flange diameter | 150-220mm |
| 4.The flange thickness | 8mm |
| 5.Material | Q235 Carbon Steel |
| 6.Thickness | 3mm-4mm |
| 7.Nut aperture | 3-M16 uniform distribution |
| 8.Surface treatment | Hot galvanizing DIN EN ISO 1461-1999 Average thickness≥80micron |
| 9.Drawing force parameter | 20.05-28.5KN |
| 10.parameter of bearing capacity | 35-40KN |
| 11.Horizontal torsion parameter | 8-10.5KN |
| 12.Packaging | Steel Pallet and heat shrinkage film |
| 13.Range of Application | Solar power station, Fence, The simple house, Advertising board, Checkmark field. |
Free Samples for standard fastener from Jiaxing City Qunbang Hardware
Advantages of Ground screws
1. Ground screw doesn't need water, it can be normally work in places far away from the water.
2. Ground screw low cost the cement pile, the cost is about 1/3 than of the cement pile.
3. High speed of construction can shorten the construction period.
4. It does not need to coagulation and is not affected by temperature, can be used in winter as well.
Application Field
1.Photovoltaic Power Station:
embedded pile foundation for photovoltaic power generation. Its performance is better than that of
cement pile foundation of fast construction efficiency, energy saving and low cost, and greatly reduce
the extent of damage to vegetation. Ground crew is the preferred of photovoltaic power plant.
2.Building Foundation Engineering:
The ground screw used on construction is a new discovery. Not only a green energy, but also a good
solution to the cement pile restrictions on the use of time and geographical. It can use in winter and
permafrost area.
Packing
QBH BULK
20-25KG/CTN,36CTNS/PALLET
20-30KG/BAGS,36BAGS/PALLET
ONE TON/BOXES
50KG/ IRON DRUM,12 IRON DRUMS/PALLET
QBH Small Packing
6boxes/CTN,36CTNS/PALLET
Packing in small boxes according to customer's requirements
Packing in plastic bag according to customer's requirements
QBH Pallet Type
SOLID WOOD FUMIGATION PALLET
EURO Pallet
THREE SPLINT PALLET
WOODEN BOX
The Advantages of QBH
- QBH brand sales to the main quality assurance.
- Years of export trade management, excellent service, word-of-mouth guarantee.
- By working with TUV,escort for quality.
- Customization of non-standard parts can be made according to customer's requirements and drawings.
- For quality customers,we can provide a certain credit period.
Certifications
Our Services
Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers'specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with professional factory supply
Perfect fastening solution with 15+ years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: customized services according to the samples and drawings offered.
Free Samples for Standard Fastener from Jiaxing City Qunbang Hardware
We Promise:
1.High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
FAQ
1.What's your experience like?
Our general manager has been engaged in the export of fasteners since 2005.
Our team can provide you with professional fasteners selling and smooth export services.
2.How about your price?
High quality products with reasonable price. Please give me a inquire, We will quoted you a price for you
refer at once.
3. How do you control your quality?
We require the quality control department to inspect every production link of each shipment. And we can provide you MTC and mill certificate when the goods is finished.
4.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container, we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce
your goods.
5.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers'
requirement.
6.What is your payment term?
We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order.
Awaiting for your kind inquiry! Thanks & best regards!
For more information: http://qbfastener.en.made-in-china.com
