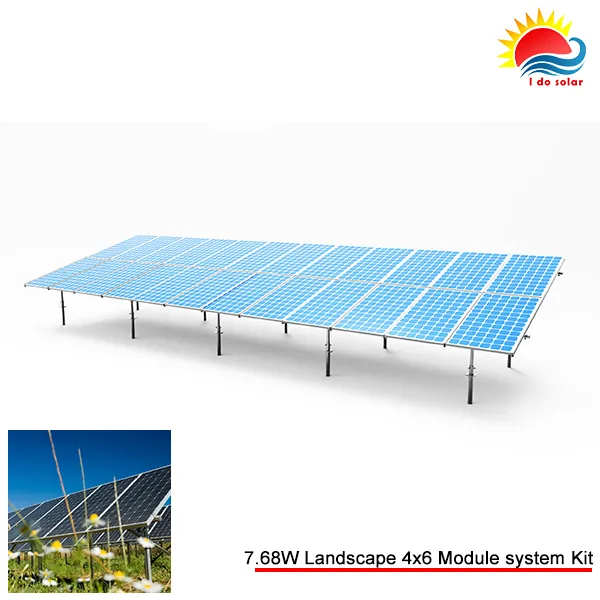

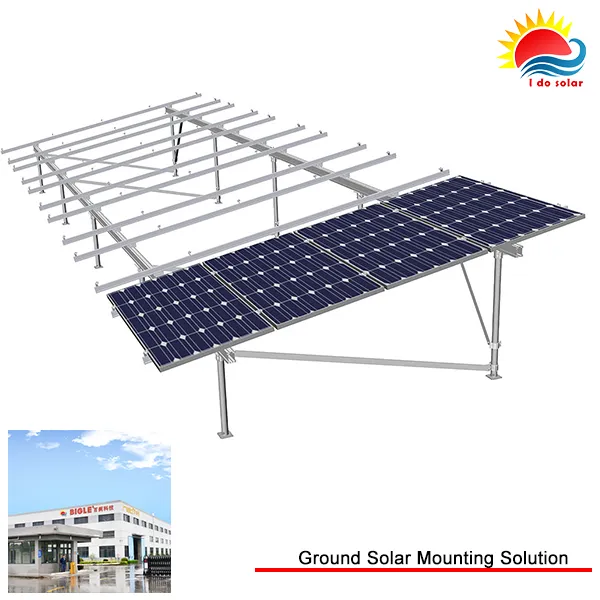

PV Panel Solar Ground Mount for Solar Power (SY0085)

Product Description

Manufacturing	25 Years' Experience	Ease of Installation
Our group has more than 30 years experience in manufacturing Aluminum and steel components and works strictly under ISO 9001 manufacturing standards with Quality always at the forefront of I Do Solar's manufacturing program.	At Solar Solutions, we believe we are well credentialed to be a voice of the industry. We are an integral component of the brilliance Group, with nearly 25 years of service to Australia and New Zealand, which makes us the largest distribution and support network of this kind in the country.	Understanding that the most important part of solar pv solar installations is 'time', all of our products are carefully designed with fast installation always in mind.Time is money and with years of experience in dealing with solar installers we understands just how important it is to have a safe and reliable system that can be installed quickly and efficiently

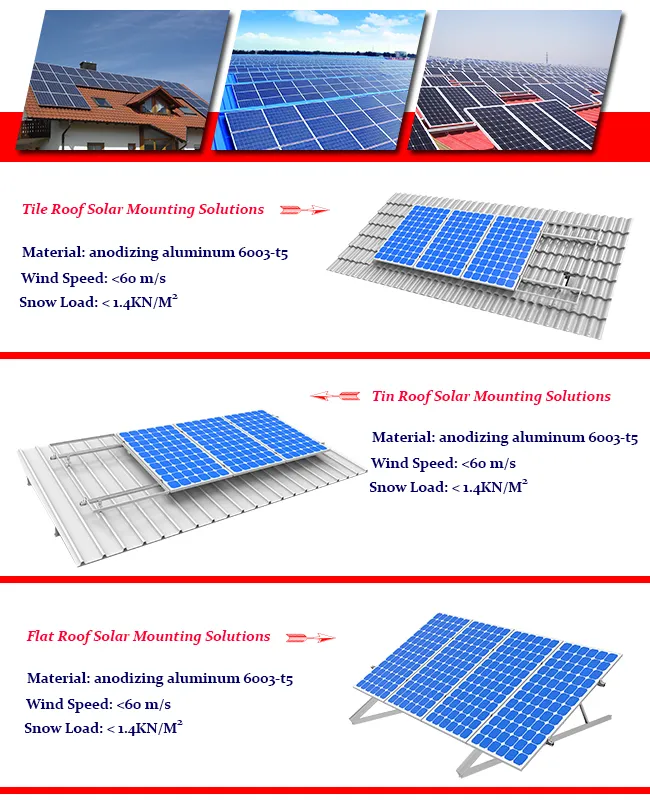

--------Roof Solar Mounting System
1. Unmatched Durability---10 year warranty.
2. Easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.
3. All Weather
PV Panel Solar Ground Mount for Solar Power (SY0085)

PV Panel Solar Ground Mount for Solar Power (SY0085)

--------Specification:

Type:	Roof solar mounting Kit
Installation site:	According to Roof Type
Material:	Aluminum6005-T5;Steel
Fasten material:	Aluminum
Anticorrosive:	Hot-dip galvanized
Survival Wind Speed:	< 60m/s
Design Snow load:	Up to 1.4KN/ Square meters
Solar panel type:	Framed or Frameless
Panel Orientation:	Transverse or vertical
Design Standard:	CE;IOS9001
Quality warranty:	25 years
Duration:	More than 20 years
Delivery time:	7-15 days
Package:	Standard Packing

--------Australian Standard:
AS 1170.0-2002 Structural Design Action Part 0: General Principle.AS 1170.0-2002 Structural Design Action Part 2: Wind Action.
AS 3566.1-2002 Self-drilling screws for the building and construction.
AS 3566.2-2002 Part 2:Corrosion resistance requirements.
AS 4600-2005 Cold formed Steel Structures.
ISO 3506:1-2009 Mechanical Properties of Corrosion-Resistance Stainless Steel Fastener.

--------European Standard:
BSEN 1990:2002+A1:2005
Eurocode-Basis of structural design.
BSEN 1991-1-3:2003.
Eurocode 1-Actions on structrues-Part 1-2:General actions-Snow loads.
BSEN 1991-1-4:2005.
Eurocode 1:Actions on structures-Part 1-2:General actions-Wind actions.

--------Warranty:
I DO SOLAR is backed standard by a 25 year guarantee. This can also be extended up to 25 years for large scale and commercial projects.
PV Panel Solar Ground Mount for Solar Power (SY0085)
I DO SOLAR MOUNTING PARTS:

OEM Name	Material	Code	Size
standard pan tile	stainless steel,303	105-0000
mid clamp earth washer	stainless steel,303	106-0001
earth lug earth washer	stainless steel,303	106-0002
universal mid clamp	T5-5999series anodised aluminium,ss fixings	300-0001	31mm to 50mm
universal mid clamp with earthing	T5-5999series anodised aluminium,ss fixings	300-0002	31mm to 50mm
universal end clamp	T5-5999series anodised aluminium,ss fixings	302-0001	50mm
rail joiner	T5-5999series anodised aluminium,ss fixings	303-0001	100mm
L-Bracket 6.3mm with rubber	T5-5999series anodised aluminium	304-0001	40mm
L-Bracket M8mm hole	T5-5999series anodised aluminium	304-0002	40mm
earthing lug 4-6mm core	T5-5999series anodised aluminium,ss fixings	305-0000	4mm and 6mm
T-head rail connector with nut	stainless steel,303		17mm
klip-lok 700 bracket	T5-5999series anodised aluminium,ss fixings	314-0000	80mm
klip-lok 600 bracket	T5-5999series anodised aluminium,ss fixings	314-0001	80mm
klip-lok 406 bracket	T5-5999series anodised aluminium,ss fixings	314-0002	80mm

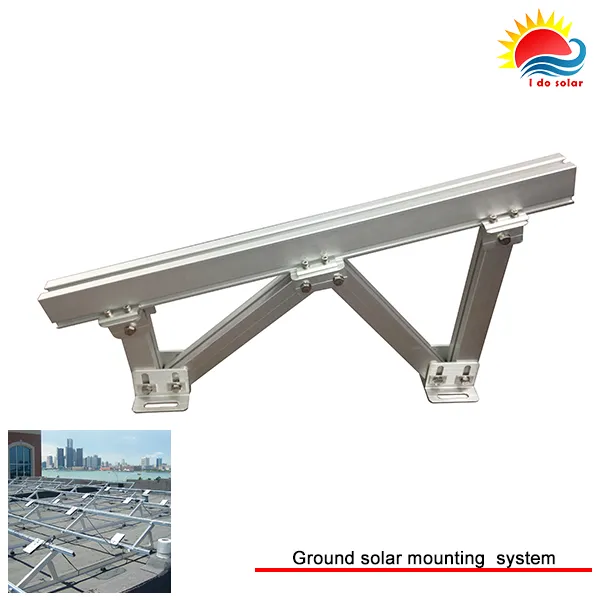

folded tripod tilt	T5-5999series anodised aluminium,ss fixings	317-0000	1200mm/10 to 30 degree
cross rail bracket assembly	T5-5999series anodised aluminium,ss fixings	318-0000	1200mm/30 to 60 degree
hanger bolt-L bracket- wood	T5-5999series anodised aluminium,ss fixings	320-0000	200mm M10
hanger bolt-L bracket- steel	T5-5999series anodised aluminium,ss fixings	320-0001	200mm M10
roofing screw	Carbon steel,decromat coating with EPDM seal	100-0002	Type 17 Point - 6.3mm x 75mm
steel tube front leg	Galvanised steel	307-0000	700mm x 60mm
steel tube rear leg	Galvanised steel	310-0001	1200mm x 60mm
steel tube cross section pipe	Galvanised steel	310-0002	2500 mm/3500 mm/2700 mm/3700 mm
aluminium slot rail	T5-5999series anodised aluminium	308-0000	4000mm
Clamped Rail Piece	T5-5999series anodised aluminium	308-0001	4200mm
T-pipe connector piece	Galvanised steel,ss303 fixings	309-0000	7 M10 Hex Nuts
riail to cross pipe connector	T5-5999series anodised aluminium	310-0000
bottom cap piece	Galvanised steel,ss303 fixings	311-0000	3 x M12 Hex screws
diagonal braces sleeve	Galvanised steel,ss304 fixings	312-0000	M10 nuts and bolts
brace arm piece	Galvanised steel	313-0000	40mm x 40mm

--------Company Informations:
IDO SOLAR is a professional solar engineering company specializing in the best quality solar mounting structures money can buy. IDO SOLAR was formed by a team of solar energy experts from USA, Germany and Australia with, collectively more than 25 years experience in the solar EPC industry. Modraxx other founding partner is a Chinese company with more than 30 years experience in manufacturing. This combination of partners is the cornerstone of our business and offers any potential solar customer the very best solar experience. Many years of manufacturing experience, makes I DO SOLAR the number one solar mounting partner for both Design, Quality, and Competitive price.
1.Our group has more than 30 years experience in manufacturing Aluminum and steel components and works strictly under
ISO 9001 manufacturing standards with Quality always at the forefront of ModRaxx's manufacturing program. I DO SOLAR will always work with our customers and our team to get the best quality products on time every time

2.IDO SOLAR has a team of engineers ready to not only assist our customer but also their customers with any solar mounting solution design whether it be a small roof or large scale utility solar farm. We have years of experience in layout design, dealing with different soil and wind conditions, and rooftop design Understanding that the most important part of solar pv solar installations is 'time', all of ourproducts are carefully designed with fast installation always in mind. Time is money and with years of experience in dealing with solar installers IDO SOLAR understands just how important it is to have a safe and reliable system that can be installed quickly and efficiently

--------Future Developments:
1. Enables easy,fast and cost-effective installation.
2. Flexible post spacing withstands different wind&snow loads.
3. High quality material in Aluminum 6005-T5 and SUS 304.
4. Highly corrosion resistant surface treatment.
5. Screws and nuts go with every componts needed.
6. Fasteners and rail nut fully configured to save extra parts purchasing.
7. Mechanical calculation and reliability tested to ensure highset product quality.
8. 12-25 years system and structural guarantee.

--------Packing&Shipping
1. Aluminum rail adopt membrane of the inner packing, wear prevention.Steel frame or wooden cases in outer packing rely on Length
2. All accessories installing, and Carton packaging in outer packing,each tier separation by paperboard, save cost.100PC/box.
3. Maximize the use of space, Professional documents follow up orders for shipment
4. Accept packing requests from buyer
PV Panel Solar Ground Mount for Solar Power (SY0085)

--------FAQ
1.What is your pv panels dimension?--------------------------------------------------------_________mm Length x____mm Width x___mm Thickness
2.How many panel are you going to mount?-----------------------------------------------________Nos.
3.What is the tilt angle?-------------------------------------------------------------------------_________degree
4.What is your planned pv assmebly block?------------------------------------------------ _______Nos. in a row
5.How is weather there,such as wind speed and snow load?---------------------------- ______m/s anit-wind speed and____KN/m2 snow load.
6.What is the height from the lowest point of the panel to the ground?----------------______mm.

--------How to order?
Buyer Send Enquiry →Get our Quotation → Order Confirmation → Buyer Arrange 30% Deposit → Production Started upon Receipt of Deposit → Strict Inspection during Production → Buyer Arrange Balance Payment → Packing → Delivery as per Trade Terms (FOB/CFR/CIF)
