Must Big Power off Grid Inverter 10kw 12kw with 200A MPPT Solar Charge Controller Inbuilt
10KW 15KW 20KW 30KW off grid solar energy system solar power systemExample of 10KW Off grid hybrid system designItemModuleDescriptionQuantity1SW450W-144M MONO HALF CUT CELL,450W20pcs2Off Grid solar charge controller10kw 96VDC1 PC3Off Grid InverterOut put power 10KW110VAC/220VAC/380VAC1 PC4Batteries ......
Send Inquiry
Product Description

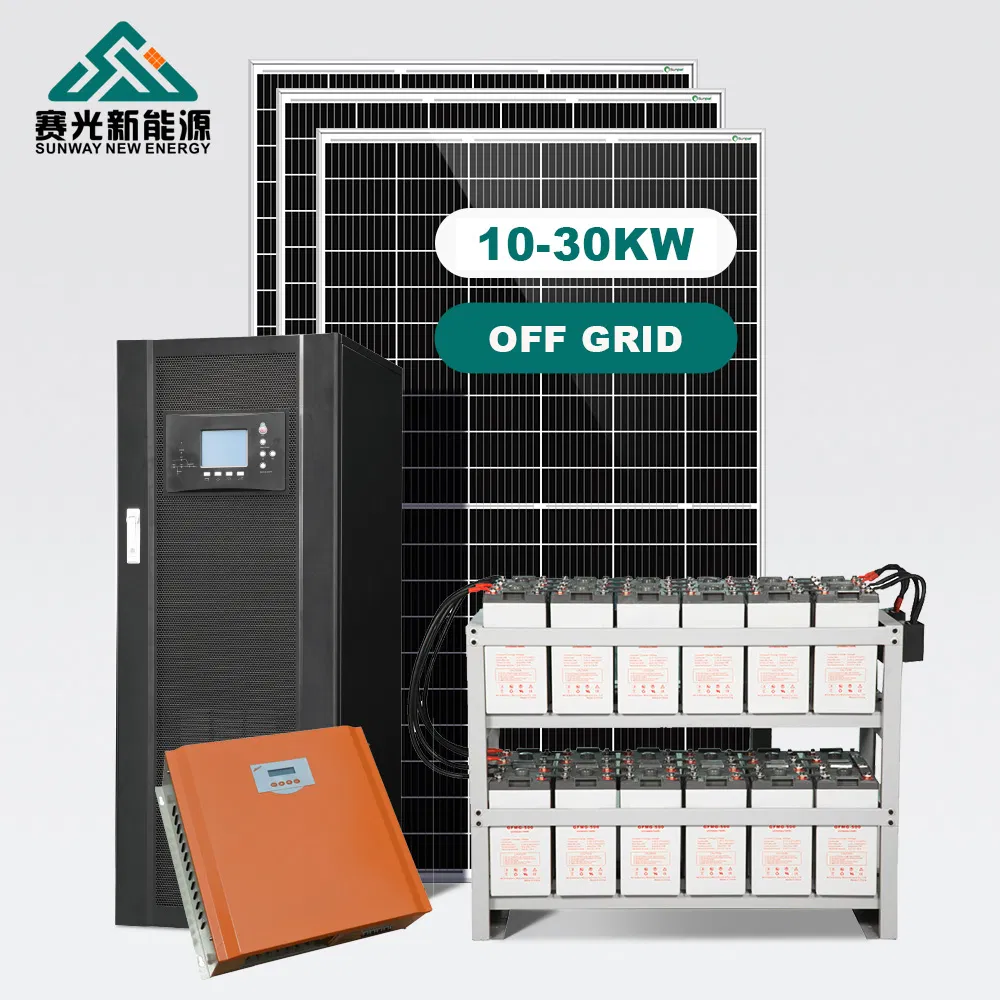

10KW 15KW 20KW 30KW off grid solar energy system solar power system
Example of 10KW Off grid hybrid system design | |||
Item | Module | Description | Quantity |
1 | SW450W-144M
| MONO HALF CUT CELL,450W | 20pcs |
| 2 | Off Grid solar charge controller | 10kw 96VDC | 1 PC |
| Off Grid Inverter | Out put power 10KW | 1 PC |
4 | Batteries
| 12V200AH Lead acid gel battery or 96V 200AH lithium iron battery | 8pcs |
5 | Mounting Structure | Customized for 15pcs panels | 1set |
5 | PV Cables | 4mm2 | 100m |
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunway new energy reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

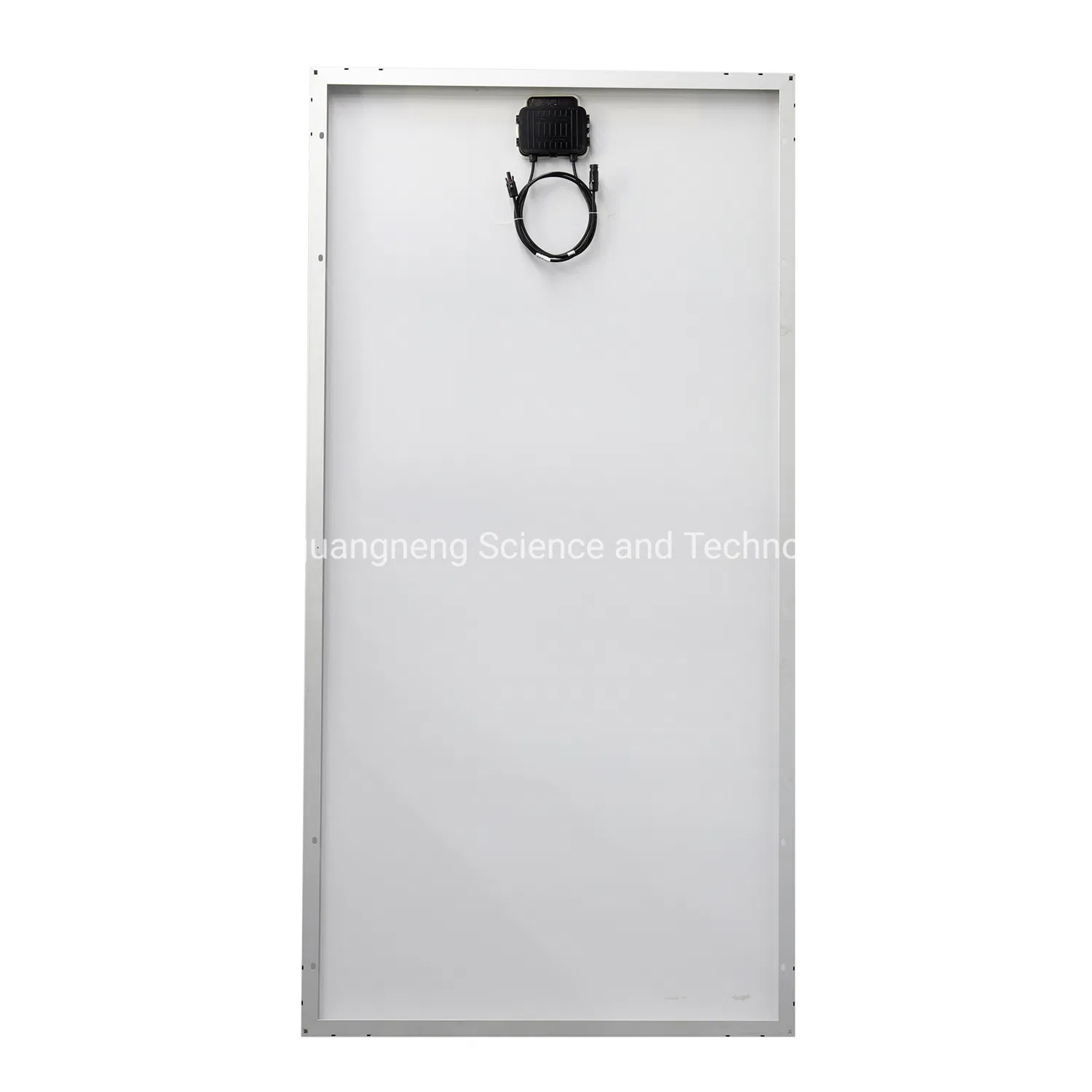

Solar Panels
> 25 years Warranty
> Highest conversion efficiency of 25%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
> Highest conversion efficiency of 25%
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
Solar charge controller
IGBT design
10KW-30KW PV input
Battery voltage suit for 96-540VDC
Battery
> Agm Battery
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together
> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together
Off Grid Inverter
> Input Voltage from 12V to 384V
> Input Ampere 5A to 200A
> Output voltage 110/220V/380v/400V
> Single phase and Three phase
>US standard dual voltage output also optional
> Input Ampere 5A to 200A
> Output voltage 110/220V/380v/400V
> Single phase and Three phase
>US standard dual voltage output also optional

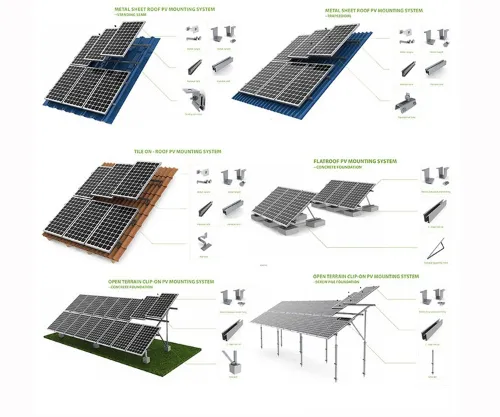

Mounting structure
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system.
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system.

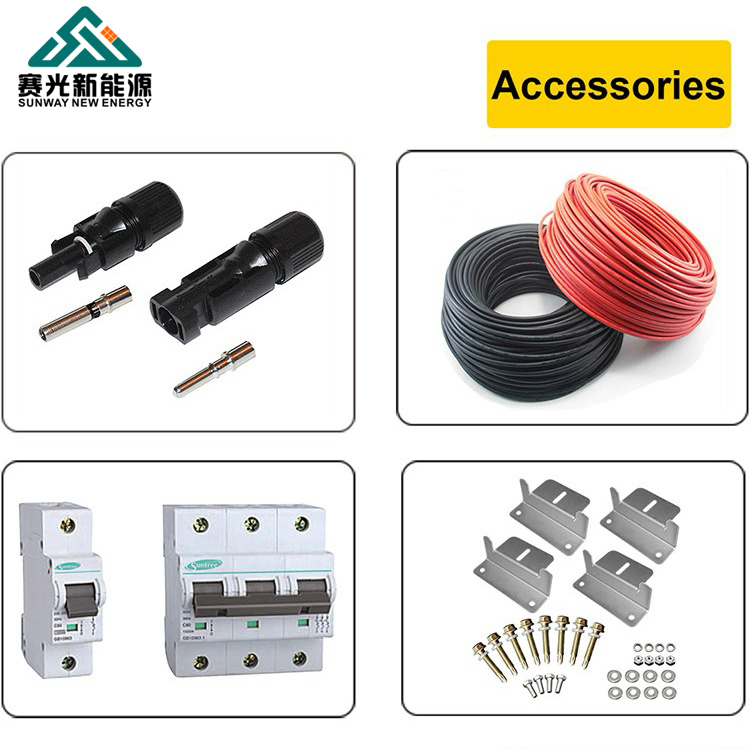

DC combiner box and distribution box
All insides are DC breaker, SPD etc protection device
All insides are DC breaker, SPD etc protection device
Packing & Delivery
PROJECT CASE
Factory off grid system in Jamaica,25KW
Location: Kingston,Jamaica
Developed: 2018
Purpose: Clients factory area often cut off power every day, it has serious problems for their production. Built this off grid
hybrid type system resolve their problem perfectly.
Haiti Hospital off grid in Bonne Fin
Location: Southern Haiti, Hospital Lumiere
Developed: 2019
Purpose: In order to alleviate these issues, SUNWAY spearheaded the construction of a off grid solar system. We designed
the AC-coupled microgrid with the goal of enhanced resiliency for the critical medical center.
EcoStar Hotel
Solar Photovoltaic Grid-Tied 5 kWp - Hotel
Location: Ibague, Tolima, Colombia
Developed: 2018
Purpose: Supply, Installation and commissioning of 5 kWp grid-tied system for self-consumption
