Latest Technology Solar Pump System Solar Irrigation with CE ISO
Technical Performances Module TypePNG60P-270PNG60P-275PNG60P-280PNG60P-290Rated Output(Pmp/Wp)270 275 280 290 Short CircuitCurrent (Isc/A)9.06 9.18 9.29 9.38 Open CircuitVoltage (Voc/V)37.2 38.0 38.5 38.7 Max. PowerCurrent (Impp/A)8.65 8.76 ......
Send Inquiry
Product Description
Technical Performances

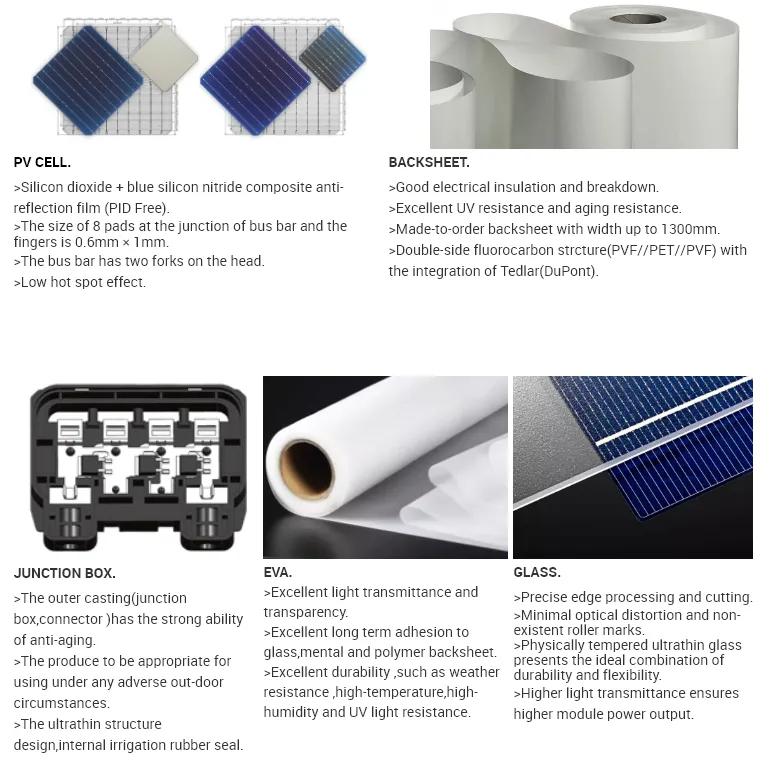

Materials

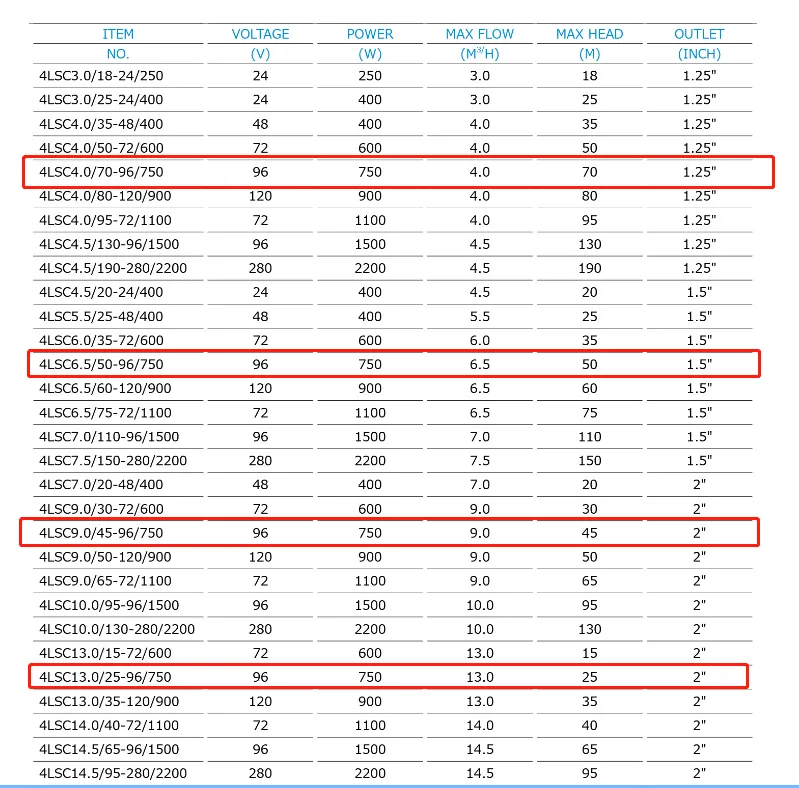

Model of DC Pump

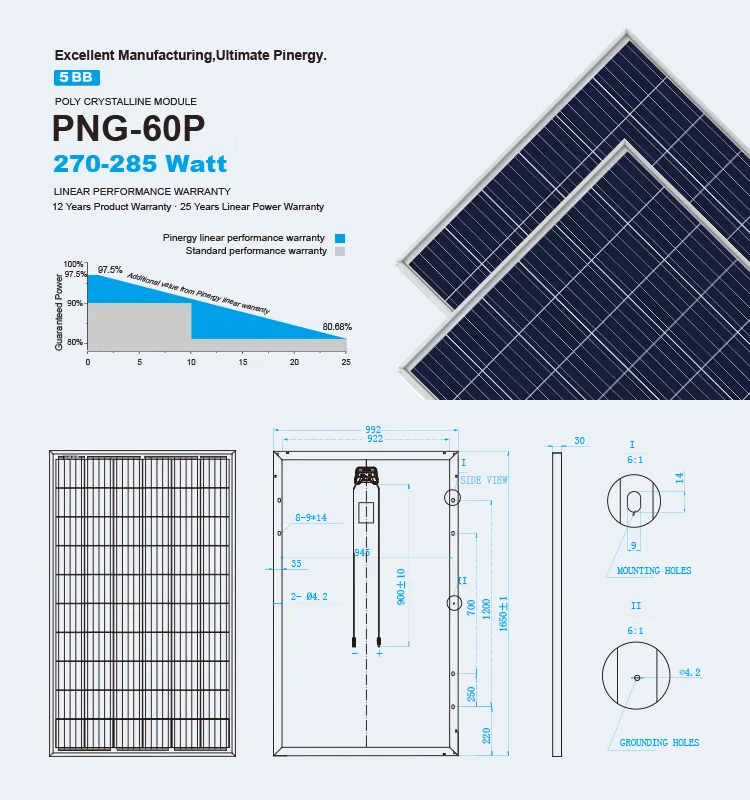

| Module Type | PNG60P-270 | PNG60P-275 | PNG60P-280 | PNG60P-290 |
| Rated Output (Pmp/Wp) | 270 | 275 | 280 | 290 |
| Short Circuit Current (Isc/A) | 9.06 | 9.18 | 9.29 | 9.38 |
| Open Circuit Voltage (Voc/V) | 37.2 | 38.0 | 38.5 | 38.7 |
| Max. Power Current (Impp/A) | 8.65 | 8.76 | 8.86 | 8.96 |
| Max. Power Voltage (Vmpp/V) | 31.2 | 31.4 | 31.6 | 31.8 |
| Module Efficiency | 16.50% | 16.80% | 17.11% | 17.41% |
| Tolerance | 0~+5W | |||
| Standard Test Condition(STC): Irradiance 1000w/m2. Cell Temperture 25ºC. AM 1.5 | ||||
| Module Type | PNG60P-270 | PNG60P-275 | PNG60P-280 | PNG60P-290 |
| Rated Output (Pmp/Wp) | 200.0 | 203.7 | 207.4 | 211.1 |
| Short Circuit Current (Isc/A) | 7.33 | 7.43 | 7.52 | 7.59 |
| Open Circuit Voltage (Voc/V) | 34.4 | 35.1 | 35.6 | 35.8 |
| Max. Power Current (Impp/A) | 6.89 | 6.99 | 7.07 | 7.14 |
| Max. Power Current (Vmpp/A) | 29.0 | 29.2 | 29.3 | 29.6 |
| Nominal Module Operating Temperature (NMOT) : Irradiance 800W/m2, Ambient Temperature 20ºC. Am1.5. Wind Speed 1m/s. | ||||
Materials
Model of DC Pump
