Hot Sales! 300W 500W 1000W Inbuilt Energy Storage Battery Portable Solar Power System
SNAT Hot Sales! 300W 500W 1000W 1500W inbuilt Energy Storage Battery Portable Solar Power System Product DescriptionMain featuresExcellent performance because of an MCU intelligent control technology A wide range of applicable loads because of pure sine wave AC outputconvenient and practical 5VDC-US......
Send Inquiry
Product Description

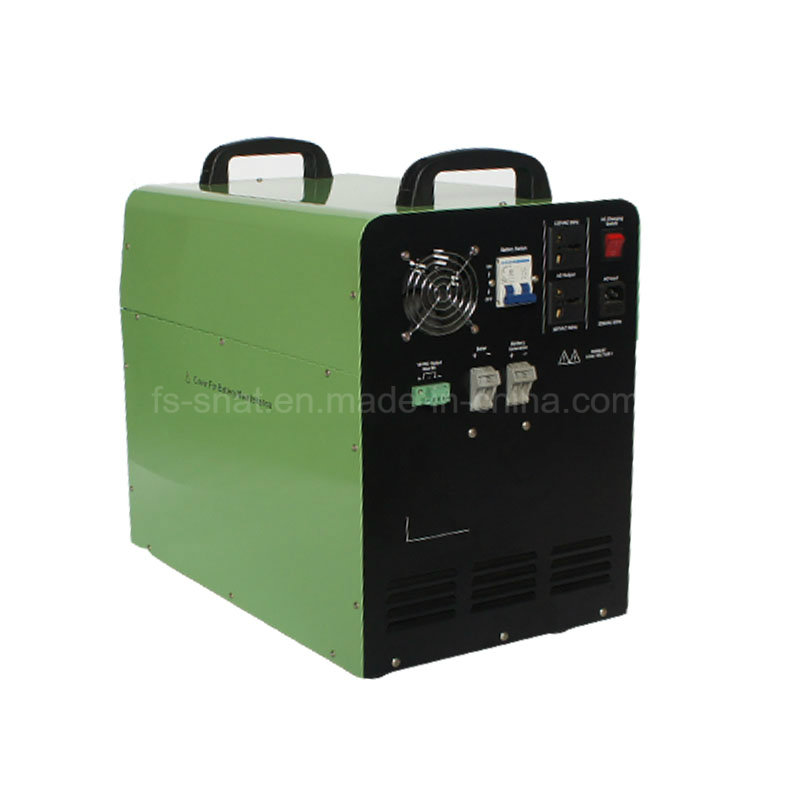

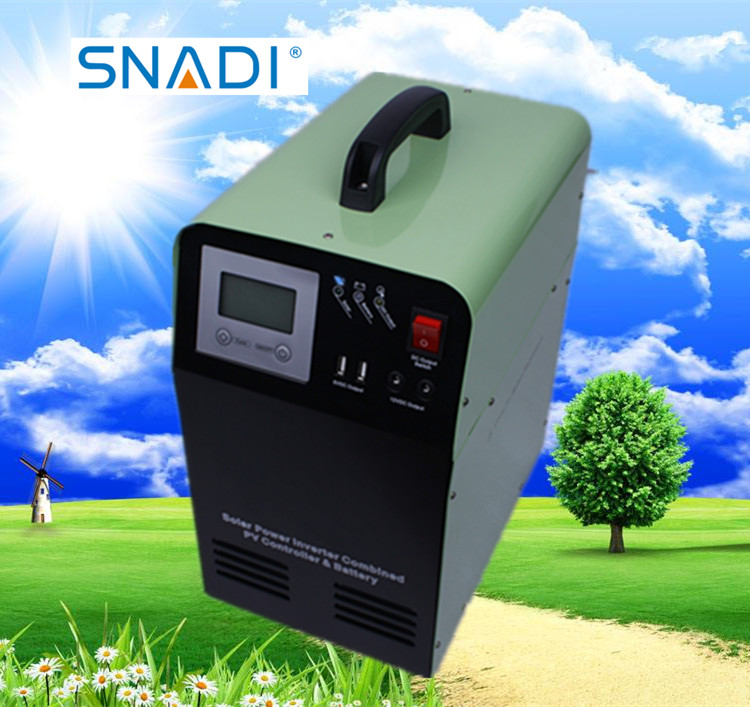

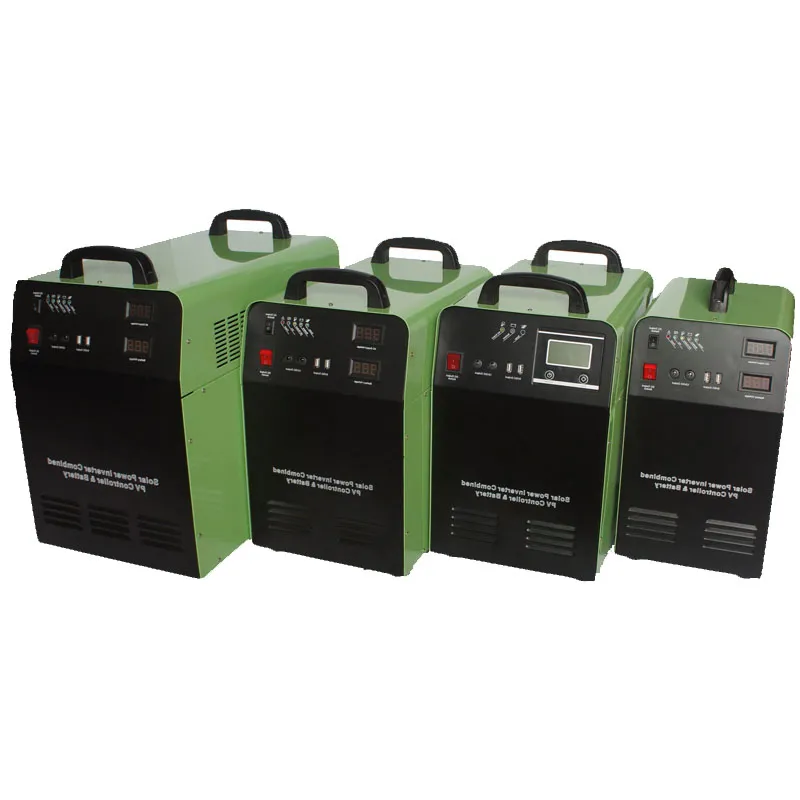

SNAT Hot Sales! 300W 500W 1000W 1500W inbuilt Energy Storage Battery Portable Solar Power System
Product Description
Main features
- Excellent performance because of an MCU intelligent control technology
- A wide range of applicable loads because of pure sine wave AC output
- convenient and practical 5VDC-USB output port and 12VDC output port
- Solar array and battery common-anode system input
- Charge by mains supply for flexible configuration (optional function)
- Overcharge protection and over-discharge protection for a longer battery life
- Digital meter and LEDs for visualization of operation status of the equipment
- Overall automatic protection and alarms including AC output overload protection, short circuit protection
Technology Paremeter
| Model:AL | 0.3KW/12V | 0.5KW/12V | 0.5KW/24V | 1KW/24V | 1.5KW/24V | |
| Inverter | Battery voltage | 12V | 24V | |||
| Rated power | 300W | 500W | 500W | 1000W | 1500W | |
| Output voltage | 110/220VAC | |||||
| Output waveform | Pure Sine Wave | |||||
| charge by a mains supply | Rated voltage | 110/220VAC (Optional) | ||||
| Charge current | 10A (MAX) | 5A(MAX) | ||||
| Solar input | Maximum PV voltage(VDC) | ≤25V | ≤50V | |||
| Charge voltage(VDC) | 10-25V | 20-50V | ||||
| Rated charge current(A) | 30A | |||||
| Maximum power | 360Wp | 720Wp | ||||
| Voltage of overcharge protection(VDC) | 14.2V | 28.4V | ||||
| Voltage of overcharge recovery(VDC) | 14.0V | 28.0V | ||||
| Voltage of floating charge (VDC) | 13.7V | 27.4V | ||||
| Voltage of hight-voltage protection(VDC) | 16V | 32V | ||||
| Voltage of hight voltage recovery(VDC) | 15.2V | 30.4V | ||||
| DC output | Voltage of low voltage recovery(VDC) | 12.6V | 25.2V | |||
| 5VDC USB output port | 2 ones/MAX 2A | |||||
| 12VDC output port | 2DC port+backboard 12V terminal block (MAX 8A) | |||||
| Starting temperature of the exhaust fan | >45ºC | |||||
| Ambient temperature for operation | 0-40ºC | |||||
| Ambient temperature for storage | -25-+55ºC | |||||
| Operation/storage conditions | 0-90%(no condensation) | |||||
| Dimension:D*W*H(mm) | 343*225*443 | 423*260*453 | 513*310*493 | |||
Shipping & Payment

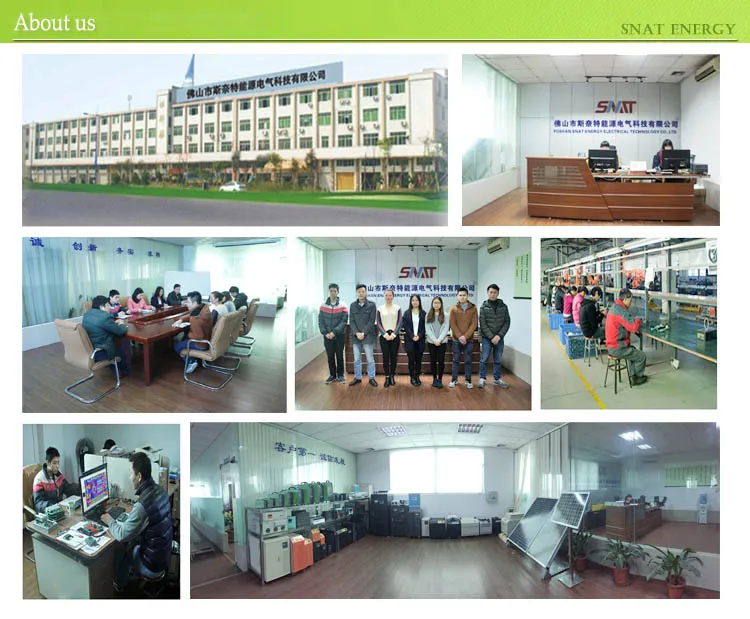

Company Information
Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our warranty commitment, parts will be shipped for free during warranty period. We have professional technical team and are focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients.
Certifications
Advantages
A. More than 10 years technical experience and advanced equipment
Our solar products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification
80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.
