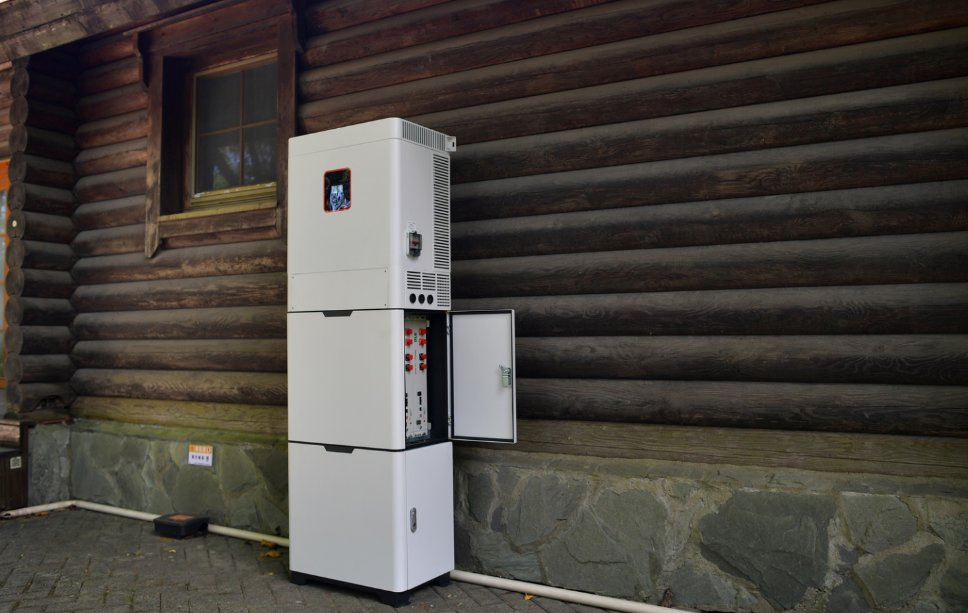

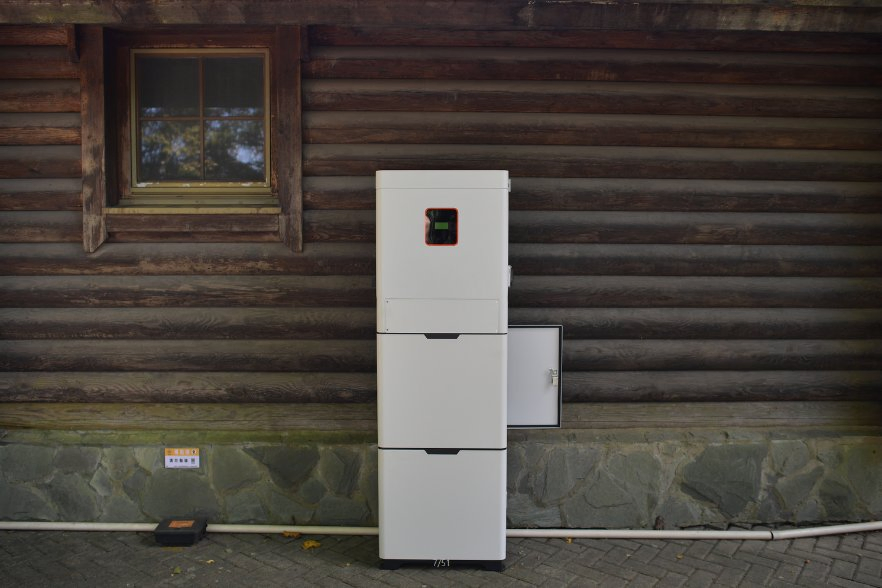

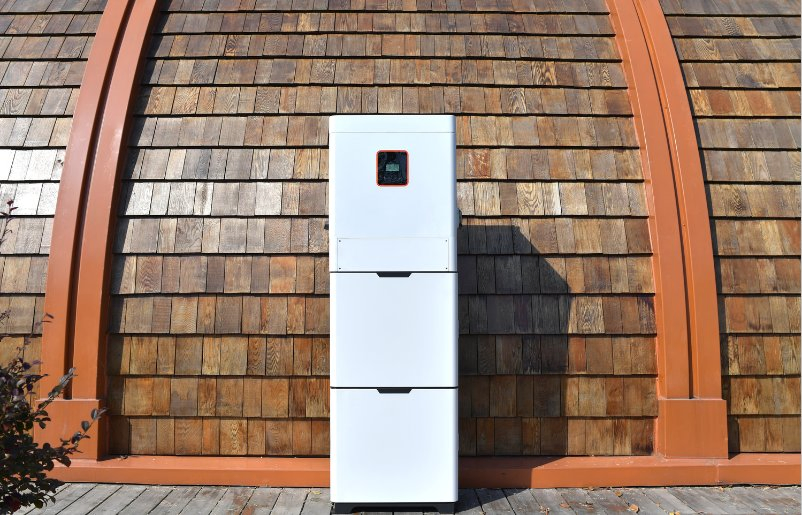

Home on Grid and off Grid Solar Energy Storage System 5kw 5kwh
DatasheetEnergy Storage All In OneModel NO.R3KL1-AR3K6L1-AR4KL1-AR4K6L1-AR5KL1-AR6KL1-AInverter ParametersMax. Input Power 4.6kW4.6kW 6.0kW 5.0kW 7.0kW 7.0kWMax. Input Current2*14A2*14A 2*14A 2*14A 2*14A 2*14AMax. PV Voltage550V550V 550V 550V 550V 550VMPPT Tracker/Strings2 2 2 2 2 2MPPT Ran......
Send Inquiry
Product Description
Datasheet
Energy Storage All In One | ||||||
| Model NO. | R3KL1-A | R3K6L1-A | R4KL1-A | R4K6L1-A | R5KL1-A | R6KL1-A |
| Inverter Parameters | ||||||
| Max. Input Power | 4.6kW | 4.6kW | 6.0kW | 5.0kW | 7.0kW | 7.0kW |
| Max. Input Current | 2*14A | 2*14A | 2*14A | 2*14A | 2*14A | 2*14A |
| Max. PV Voltage | 550V | 550V | 550V | 550V | 550V | 550V |
| MPPT Tracker/Strings | 2 | 2 | 2 | 2 | 2 | 2 |
| MPPT Range | 125~550V | 125~550V | 125~550V | 125~550V | 125~550V | 125~550V |
| Charge/Discharge Power | 3.0kW
| 3.6kW | 4.0kW | 4.6kW | 5.0kW | 5.6kW |
| Phase | Single
| Single | Single | Single | Single | Single |
| Rated Output Voltage | 230V | 230V | 230V | 230V | 230V | 230V |
| Rated Output Current | 13A | 16A | 17.4A | 20A | 21.7A | 26A |
| Grid Voltage Range | 180~270V | 180~270V | 180~270V | 180~270V | 180~270V | 180~270V |
| Rated Output Frequency | 50 /60Hz | 50 /60Hz | 50 /60Hz | 50 /60Hz | 50 /60Hz | 50 /60Hz |
| Backup Power Supply | EPS | EPS | EPS | EPS | EPS | EPS |
| Display | LED | LED | LED | LED | LED | LED |
| Operating Tempreture | -10~60ºC | -10~60ºC | -10~60ºC | -10~60ºC | -10~60ºC | -10~60ºC |
| Relative Humidity | 15~85% | 15~85% | 15~85% | 15~85% | 15~85% | 15~85% |
| Battery Technical Parameters | ||||||
| Parallel Battery Modules | 1 | 2 | 3 | 4 | 5 | 6 |
| Battery Capacity | 2.4kWh | 4.8 kWh | 7.2 kWh | 9.6kWh | 12.0kWh | 14.4kWh |
| Usage Life of Battery | >10 years | >10 years | >10 years | >10 years | >10 years | >10 years |
| MAX. Charge/Discharge Current | 25 | 50 | 75 | 100 | 125 | 150 |
| System Parameters | ||||||
| AC Output | 220V±10% | 220V±10% | 220V±10% | 220V±10% | 220V±10% | 220V±10% |
| Battery Type | Lithium Phosphate | Lithium Phosphate | Lithium Phosphate | Lithium Phosphate | Lithium Phosphate | Lithium Phosphate |
| Protection Class | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Dimensions(W/D/H)mm | 580/350/1800 | 580/350/1800 | 580/350/1800 | 580/350/1800 | 580/350/1800 | 580/350/1800 |
| Weight(KG) | 81 | 104 | 127 | 150 | 173 | 196 |
| Safety Regulations | CE,IEC,CEC,EN... | CE,IEC,CEC,EN... | CE,IEC,CEC,EN... | CE,IEC,CEC,EN... | CE,IEC,CEC,EN... | CE,IEC,CEC,EN... |
| Energy Storage Battery | ||||
| Model NO. | E048B048 | E072B048 | E096B048 | E144B048 |
| Battery Capacity | 4.8kWh | 7.2kWh | 9.6kWh | 14.4kWh |
| Nominal Voltage | 48.0V | 48.0V | 48.0V | 48.0V |
| Depth of Discharge | 90% | |||
| Usage Life of Battery | >10 years | >10 years | >10 years | >10 years |
| Operating Discharge Voltage | 45.0~54.0V | 45.0~54.0V | 45.0~54.0V | 45.0~54.0V |
| Operating Charge Voltage | 52.5~54.0V | 52.5~54.0V | 52.5~54.0V | 52.5~54.0V |
| MAX. Discharge Current | 50A | 75A | 100A | 150A |
| MAX. Charge Current | 50A | 75A | 100A | 150A |
| Operating Storage Tempreture | -10~60ºC | -10~60ºC | -10~60ºC | -10~60ºC |
| Altitude | <4000m | |||
| Relative Humidity | 10~85% | |||
| Installation Type | Standing | |||
| Operating Charge Tempreture | 0~50ºC | |||
| Operating Discharge Tempreture | -10~50ºC | |||
| Weight(Kg) | 71 | 94 | 117 | 163 |
| Communication Protocol | RS485/CAN | |||
| Protect Level | IP20 | |||
| Dimensions(W/D/H)mm | 580/350/680 | 580/350/680 | 580/350/1200 | 580/350/1200 |
| Certification | CE,IEC | |||
