Gsl Energy High Voltage 10kw 15kw 20kw Lithium Battery for Solar Energy Storage System Xm12
GSL ENERGY High Voltage 10Kw 15Kw 20kw Lithium Battery For Solar Energy Storage System GSL Power Storage Wall ESS Lithium Battery Solar Energy Storage is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios. The environmentally friendly lithium ion b......
Send Inquiry
Product Description
GSL ENERGY High Voltage 10Kw 15Kw 20kw Lithium Battery For Solar Energy Storage System
GSL Power Storage Wall ESS Lithium Battery Solar Energy Storage is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios. The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications.
| High Voltage LiFePO4 Battery Spec | |||||
| Model | LBS102100A | LBS128100A | LBS153100A | LBS179100A | LBS205100A |
| Battery Type | LiFePO4 | ||||
| Battery Cabinet Configuration | 4 | 5 | 6 | 7 | 8 |
| Nominal Voltage | 102.4V | 128V | 153.6V | 179.2V | 204.8V |
| Nominal Capacity | 100Ah | ||||
| Nominal Total Energy | 10.24kWh | 12.8kWh | 15.36kWh | 17.92kWh | 20.48kWh |
| Electrical Parameters | |||||
| Voltage Range | 89.6~115.2V | 112~144V | 134.4~172.8V | 156.8~201.6V | 179.2~230.4V |
| Standard Charging Current | 50A | ||||
| Max.Charging Current | 60A | ||||
| Standard Discharge Current | 50A | ||||
| Max.Discharging Current | 60A | ||||
| Mechanical Parameters | |||||
| Net Weight | ~175kg | ~225kg | ~253.3kg | ~275kg | ~303.3kg |
| Dimension (W*D*H) | 700*230*1295 | 1* 700*230*1295 mm & | 1* 700*230*1295 mm & | ||
| mm | 1* 700*230*650 mm | 2* 700*230*650 mm | |||
| Ingress Protection | IP65 | ||||
| Cooling | Natural Cooling | ||||
| Operation Condition | |||||
| Environment Temperature | Charge: 0ºC~ 55ºC / Discharge: -20ºC~ 55ºC / Storage: -10ºC~ 30ºC | ||||
| Operation Humidity | 5~95% RH | ||||
| Altitude | < 2000m | ||||
| Mounting Type | Floor-mounted | ||||
| Design Life | > 10 years | ||||

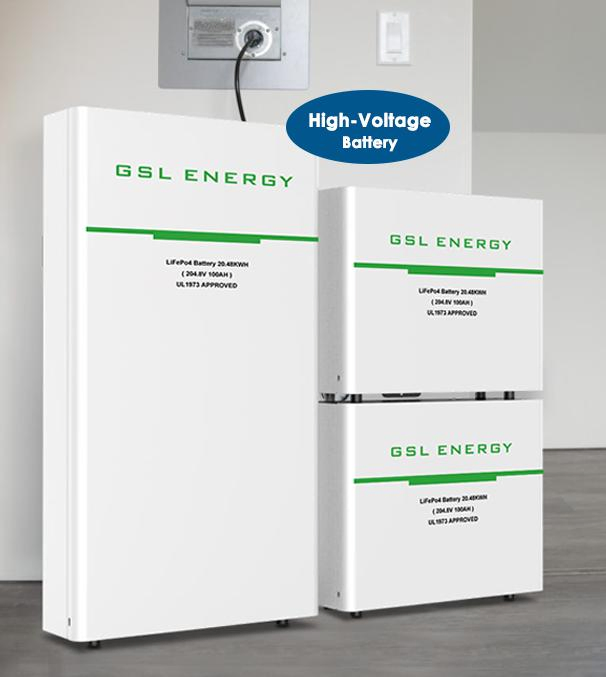

Whole system Image
