Customized 10 Years Warranty Home Project 15kw 20kw 25kw 30kw 40kw 3 Phase 380V 400V on Grid off Grid Solar Energy System

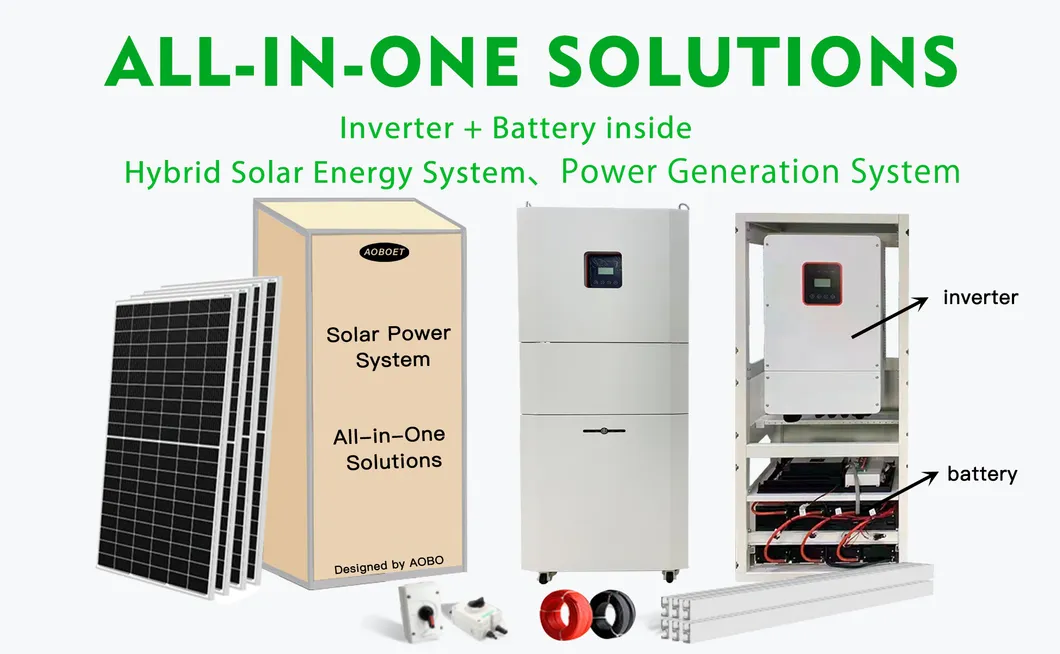

30KWH Solar Hybrid Generator / Hybrid Lithium ESS AOBOET 30 kWh Solar Hybrid Generator the combination of battery, inverter and charger. Our Solar generator is plug and play, what you only need between the solar panels and load is our production.The generator also means the solar energy storage syst......
Send Inquiry
Product Description

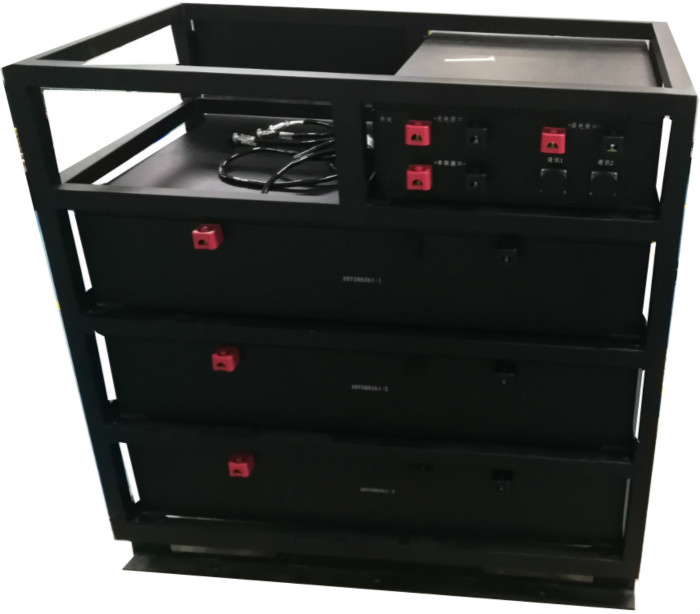

30KWH Solar Hybrid Generator / Hybrid Lithium ESS

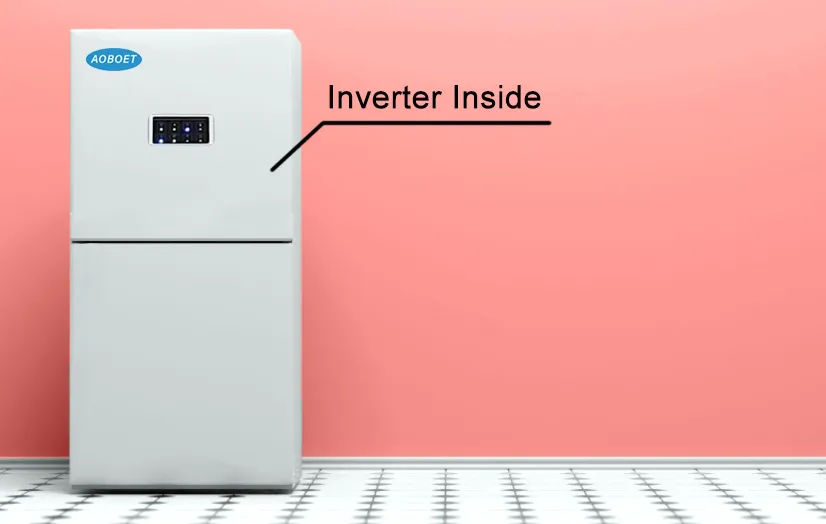

AOBOET 30 kWh Solar Hybrid Generator the combination of battery, inverter and charger. Our Solar generator is plug and play, what you only need between the solar panels and load is our production.The generator also means the solar energy storage system.

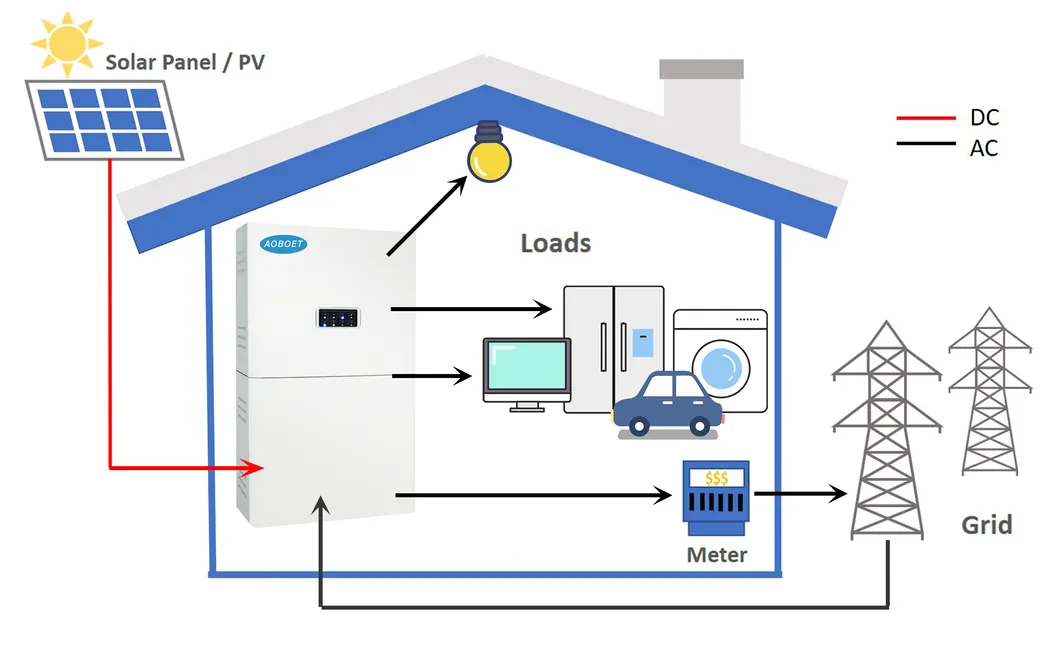

Our solar lithium ESS is hybrid, this means it supports on grid model andoff grid model. As a result, there is no waste of energy there. And our product can also choose the priority of main and solar.

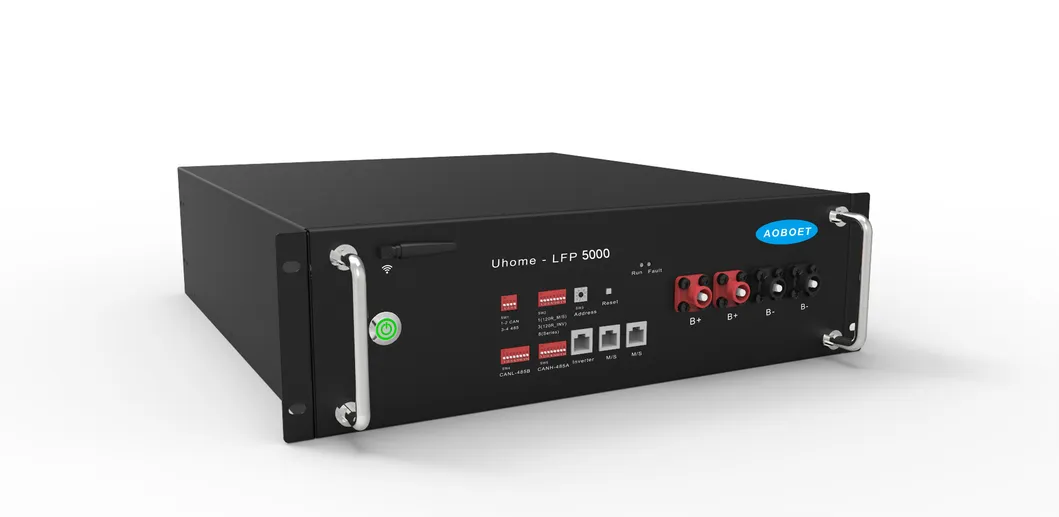

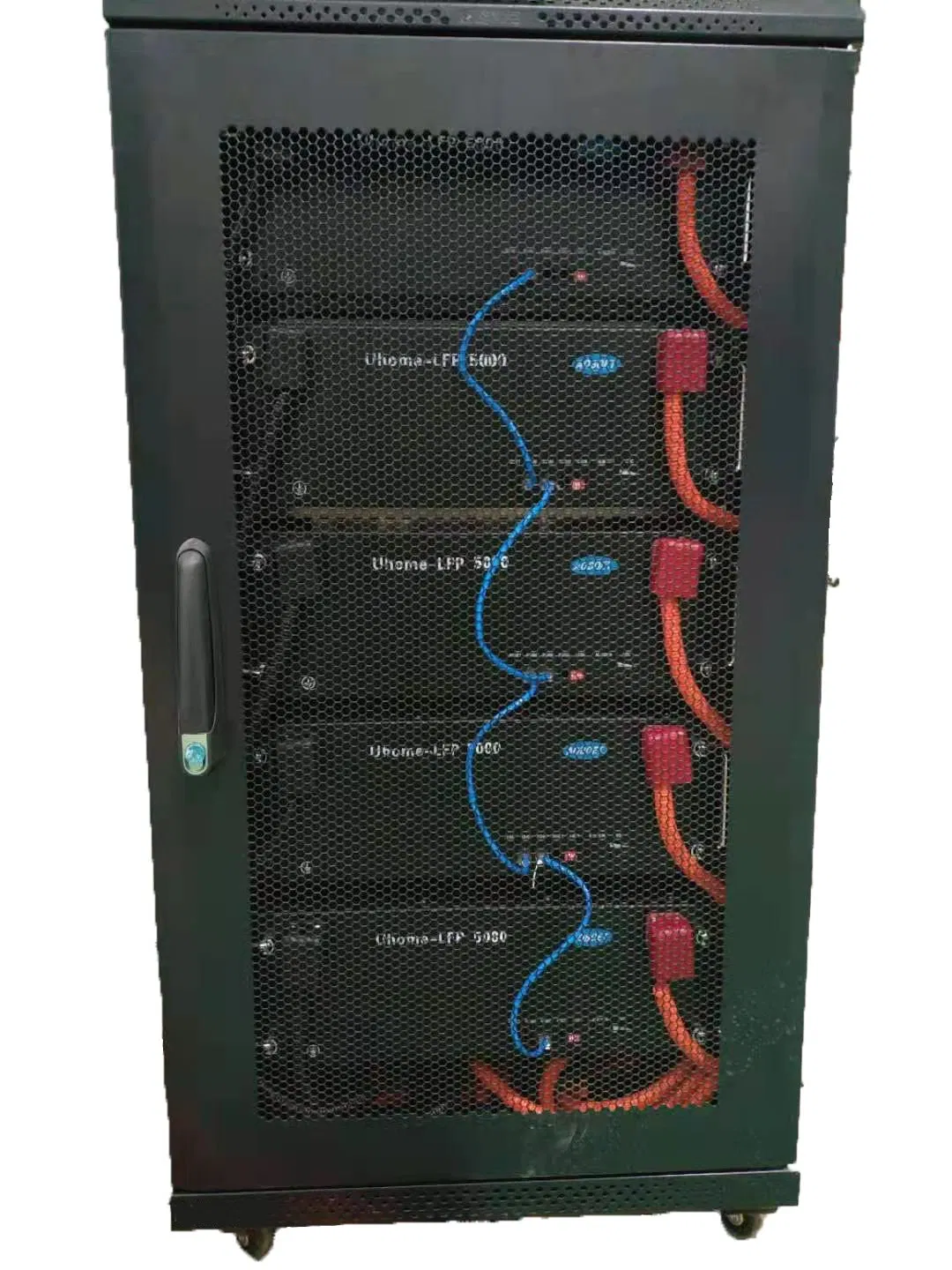

The most necessary thing of solar generator is the lithium battery. The warranty of our product is 5+5 years, and the lifespan of our battery is more than 15 years (daily cycle). Our lithium battery is scaleable to get high power,and support in series and in parallel. Intelligent BMS support APP remote battery management.
Our batteries are compatible with inverters of various brands, such as Growatt, Solis, Deye, LuxPower,Megarevo etc.
Features of Aoboet Solar Hybrid Generator

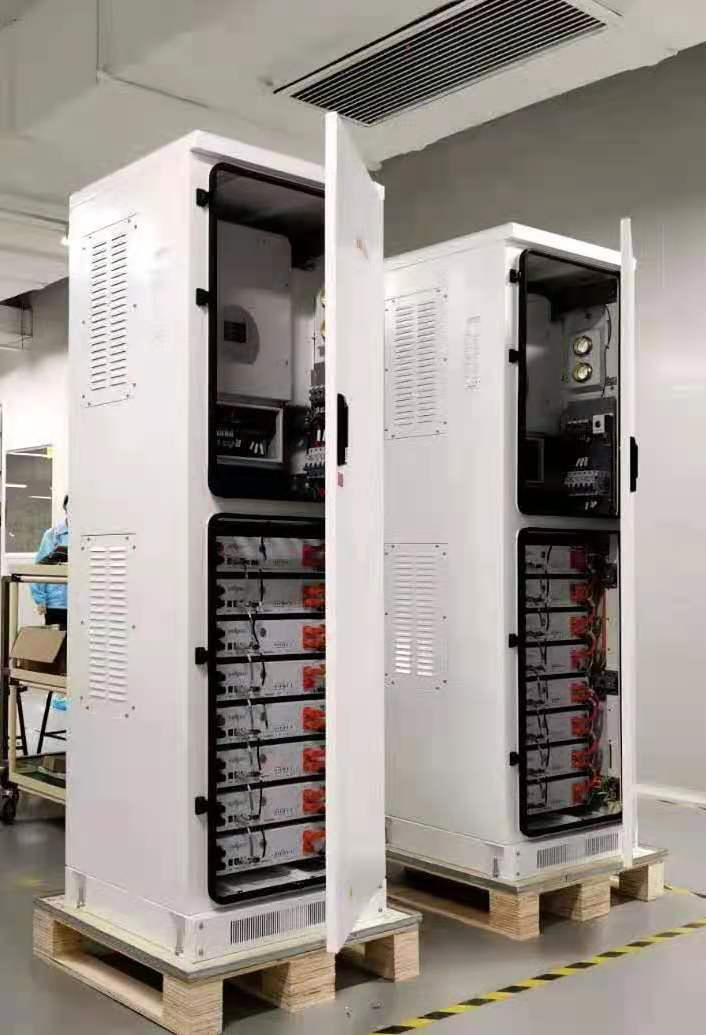

More details about Aoboet Hybrid Solar Generator
Different household loading driven by Aoboet Lithium ESS
Our solar lithium ESS is hybrid, this means it supports on grid model andoff grid model. As a result, there is no waste of energy there. And our product can also choose the priority of main and solar.
The most necessary thing of solar generator is the lithium battery. The warranty of our product is 5+5 years, and the lifespan of our battery is more than 15 years (daily cycle). Our lithium battery is scaleable to get high power,and support in series and in parallel. Intelligent BMS support APP remote battery management.
Our batteries are compatible with inverters of various brands, such as Growatt, Solis, Deye, LuxPower,Megarevo etc.
Features of Aoboet Solar Hybrid Generator
| Optional Solar Components | |
|
|
|
|
|
|
More details about Aoboet Hybrid Solar Generator
| Specification | |
| On Grid AC Output | |
| Rate AC Output Power | 30KW |
| AC Output Voltage | 380Vac(3 phase) |
| PV Input | |
| PV input power | 30kw |
| MPPT number | 4 |
| PV voltage range | 150V - 500V |
| Battery | |
| Battery Capacity | 100kWh |
| Nominal Voltage | 307.2VDC |
| Voltage range | 288-336V DC |
| Nominal charge/discharge power | 50KW |
| Efficiency | >97% |
| Peak power(only discharging) | 60KW for 3S |
| Max charging voltage | 336V |
| General Data | |
| Operation Temperature range | -25 ~+60°C |
| environment humidity | 0-95% |
| Altitude | 0-4000M (over 2000M derating) |
| Weight | 280kg |
| Dimension(W x H x D) mm | 650*1970*460 |
| Cooling | Fan Cooling |
| Noise(dB) | <29dB |
| Display | LCD |
| Communication | RS485, WIFI,CANBus |
Different household loading driven by Aoboet Lithium ESS
