Anderson Style Plug Exterior Connector DC Power 50AMP Solar Caravan Trailer
Product DescriptionMC4 Solar Connector for Solar Panel IP67 30A PV Connector MC4 ConnectorThe Features of MC4 solar connector 1. Simple assembly, easy to use2. Suitable for different sizes of PV cable3. Waterproof grade: IP674. Housing made of PPO material, anti-UV5. High current carrying capacity6.......
Send Inquiry
Product Description

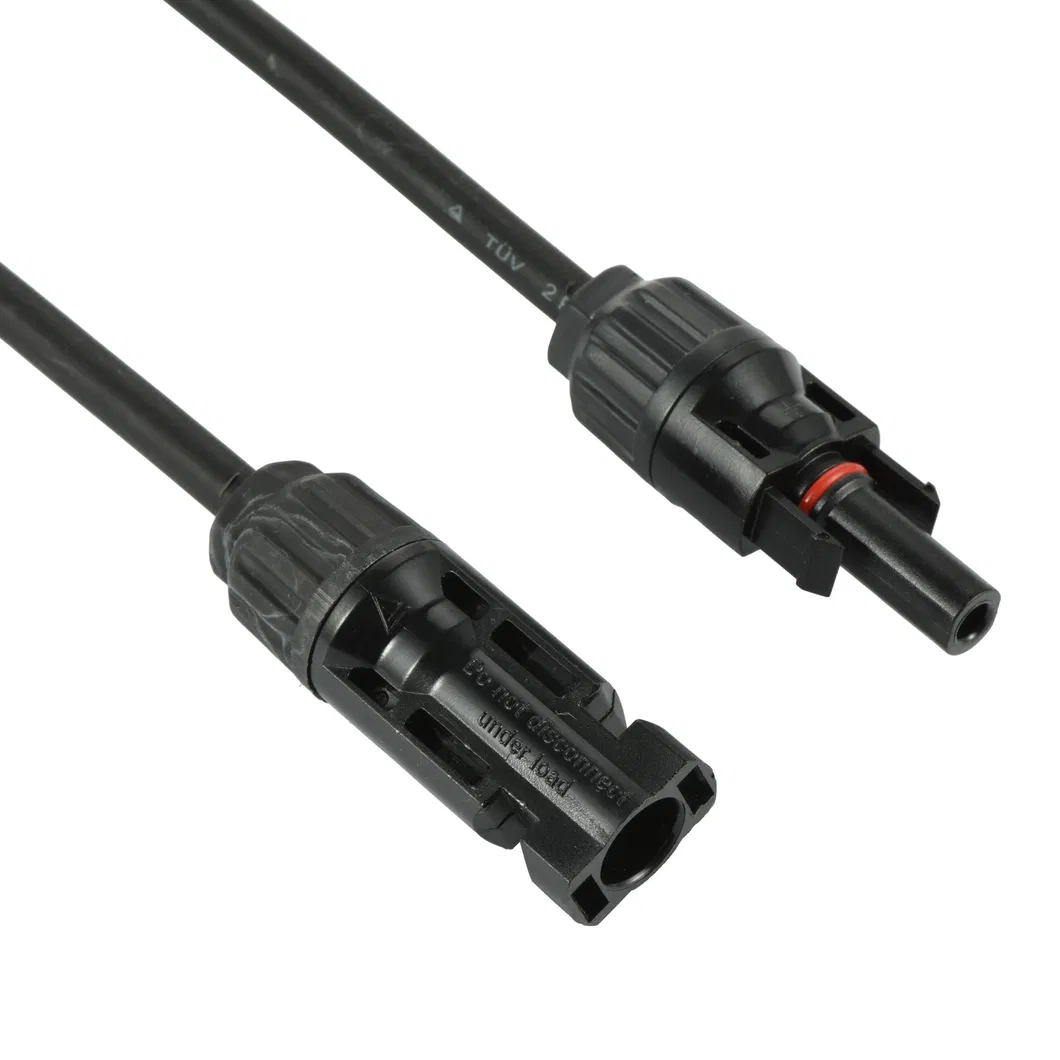

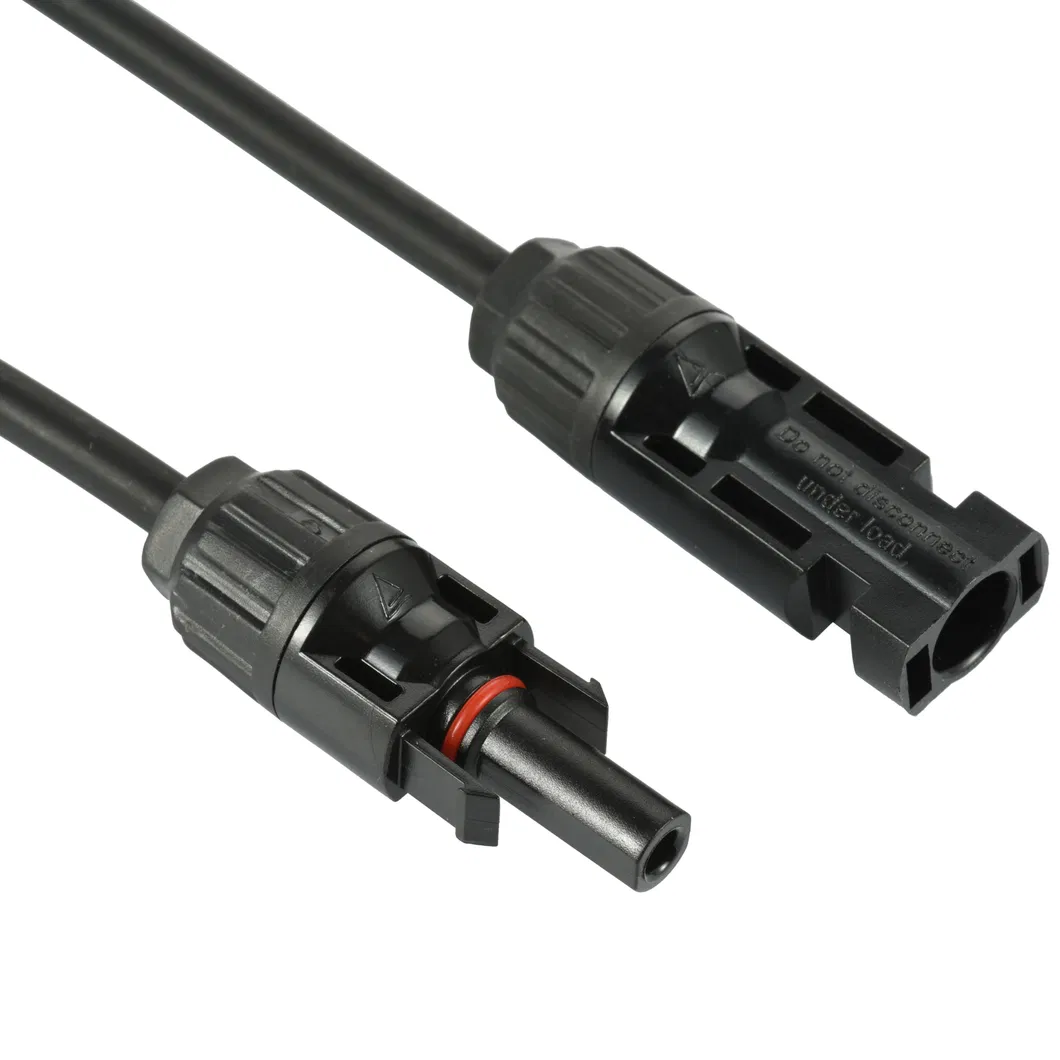

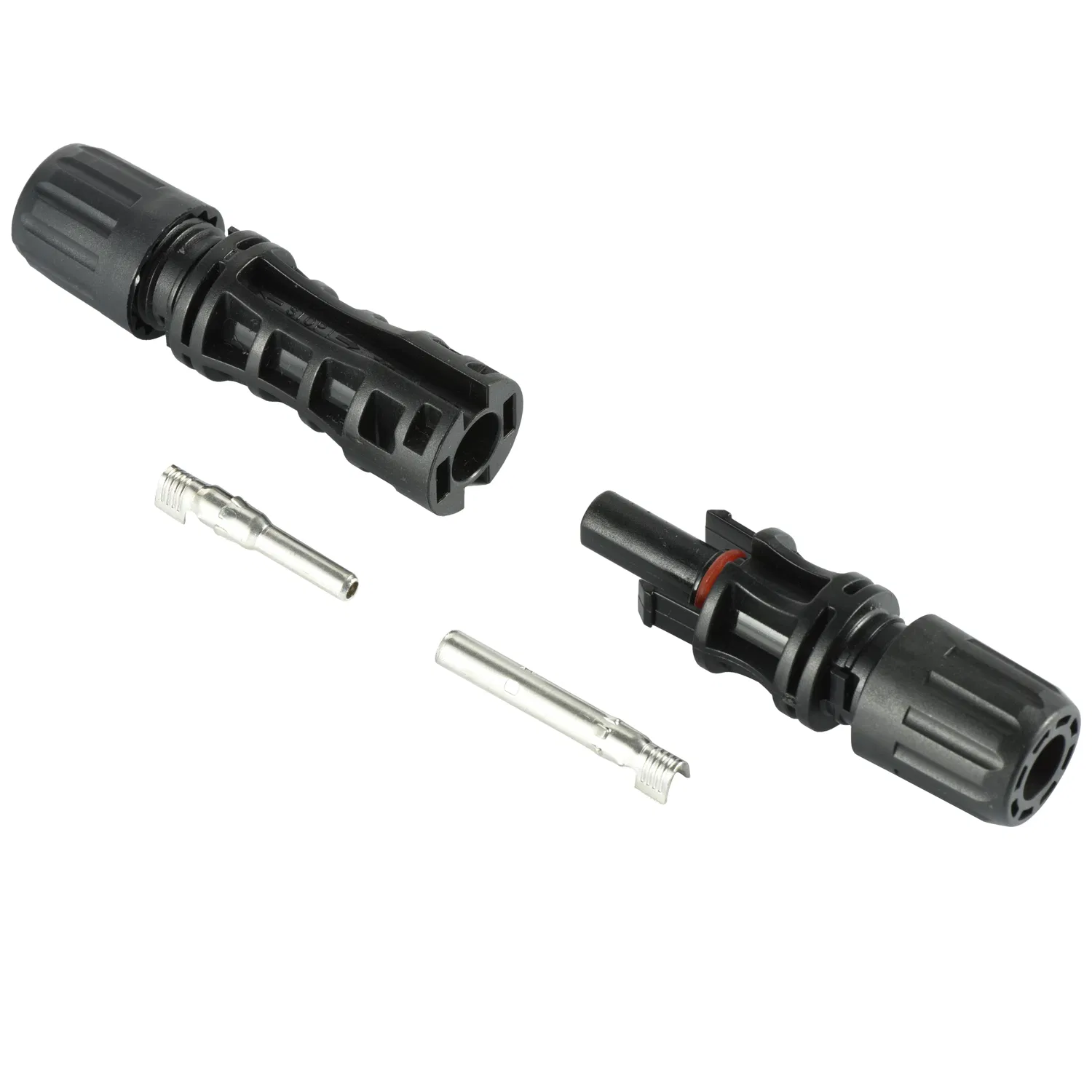

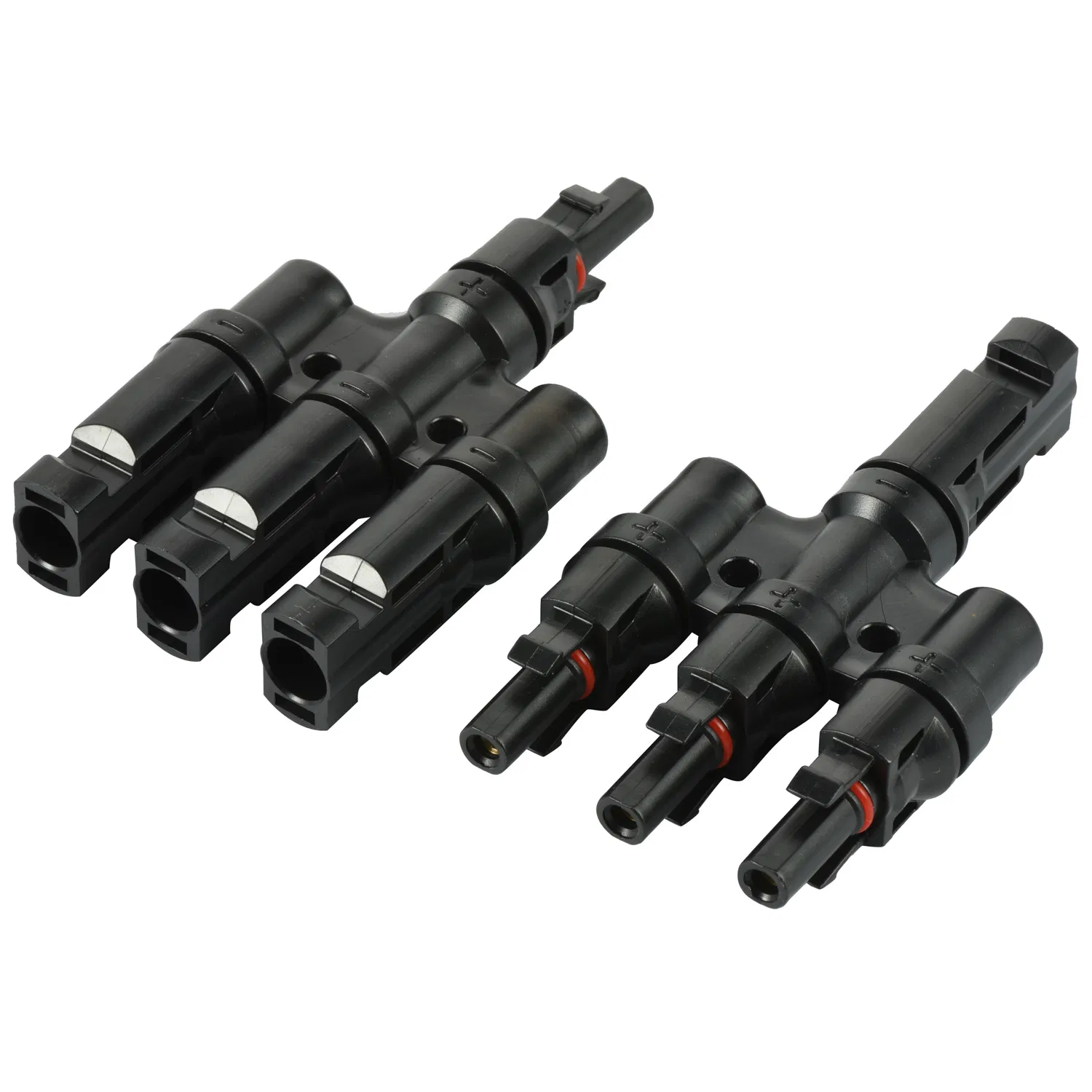

MC4 Solar Connector for Solar Panel IP67 30A PV Connector MC4 Connector
The Features of MC4 solar connector
1. Simple assembly, easy to use
2. Suitable for different sizes of PV cable
3. Waterproof grade: IP67
4. Housing made of PPO material, anti-UV
5. High current carrying capacity
6. Contact material: Copper Tin Plated
7. High heat resistance, wear-resisting
8. Rated Voltage: 1500V
9. Rated Current: 30A
The DATA of MC4 solar connector
| Connector system | MC4 CONNECTING | ||||||
| Rated current | Certitied by 30A and Max to 40A working | ||||||
| Rated voltage | 1500V DC (IEC) | ||||||
| 600V DC (UL) | |||||||
| Ambient temperature range | -40°C...+90°C (IEC) | ||||||
| -40°C...+40°C (UL) | |||||||
| Degree of protection, mated | IP65/IP67 | ||||||
| unmated | IP2X | ||||||
| Contact resistance of plug connectors | 0,5mΩ | ||||||
| Contact material | Copper, tin plated | ||||||
| Insulation material | PPO | ||||||
| Locking system plug connectors | Snap-in (nur/only MC4) | ||||||
| Flame class | UL94-HB / UL94-V0 | ||||||
| Safety class | II | ||||||
| Contact system | MC Multilam | ||||||
| Type of termination Crimpen | Crimping | ||||||
| Cable Size | 2.5mm2, 4mm2, 6mm2 | ||||||
| Warranty | 25 years | ||||||

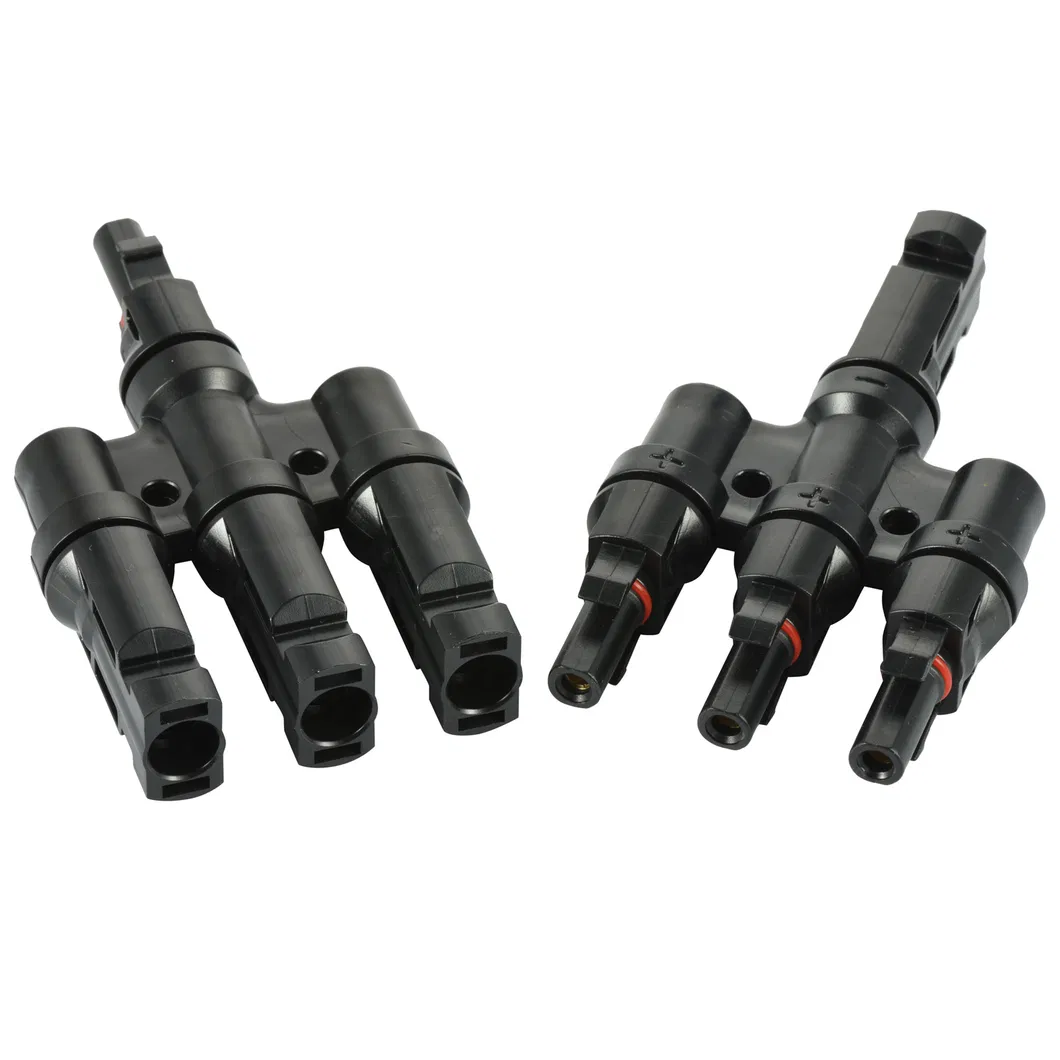

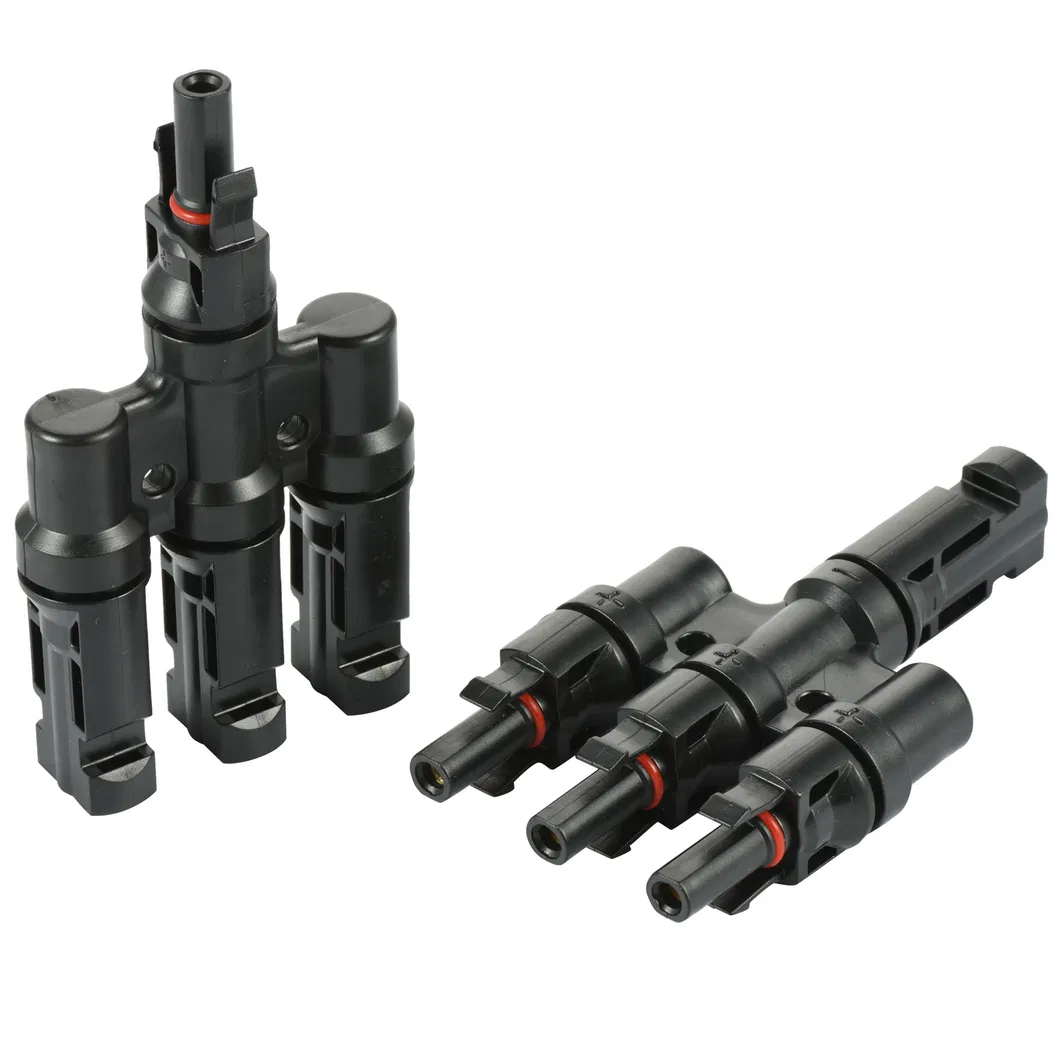

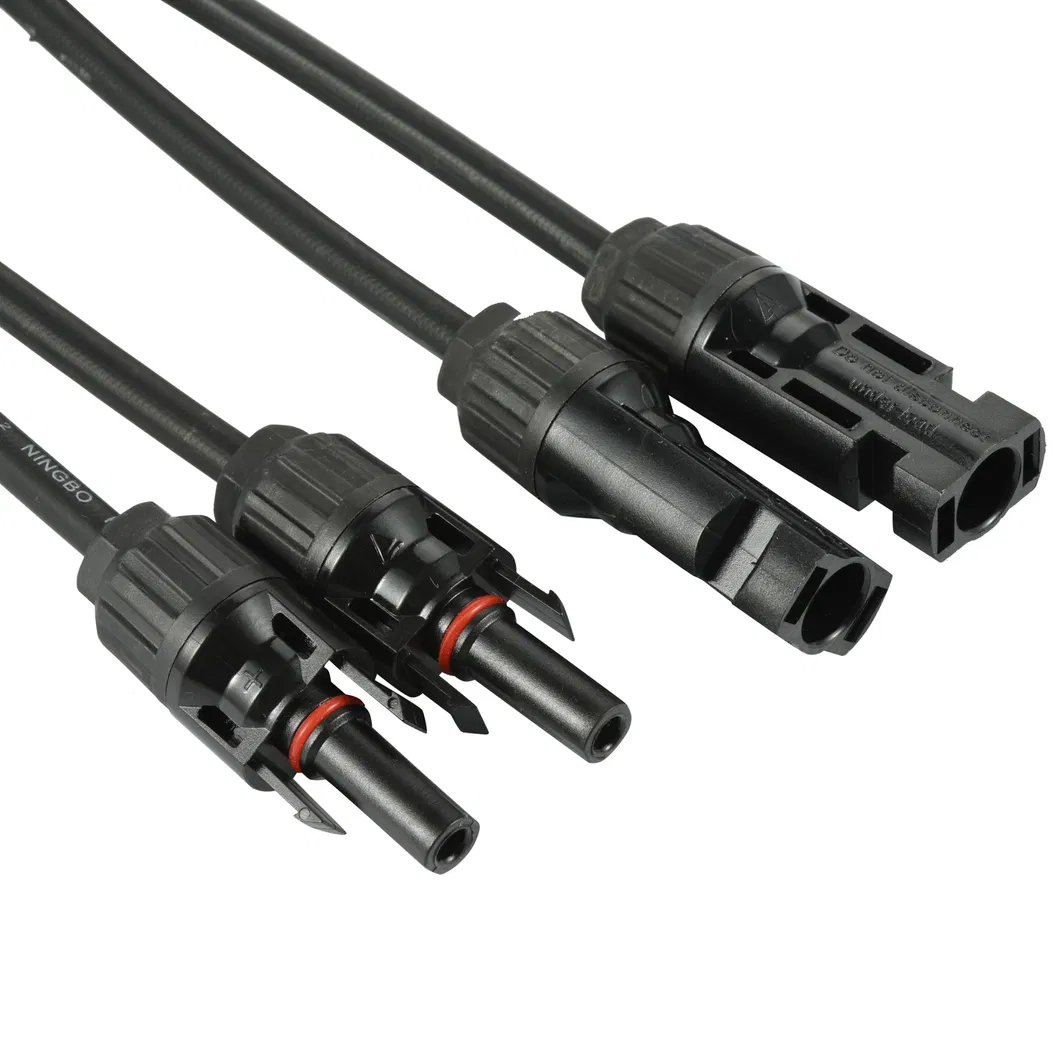

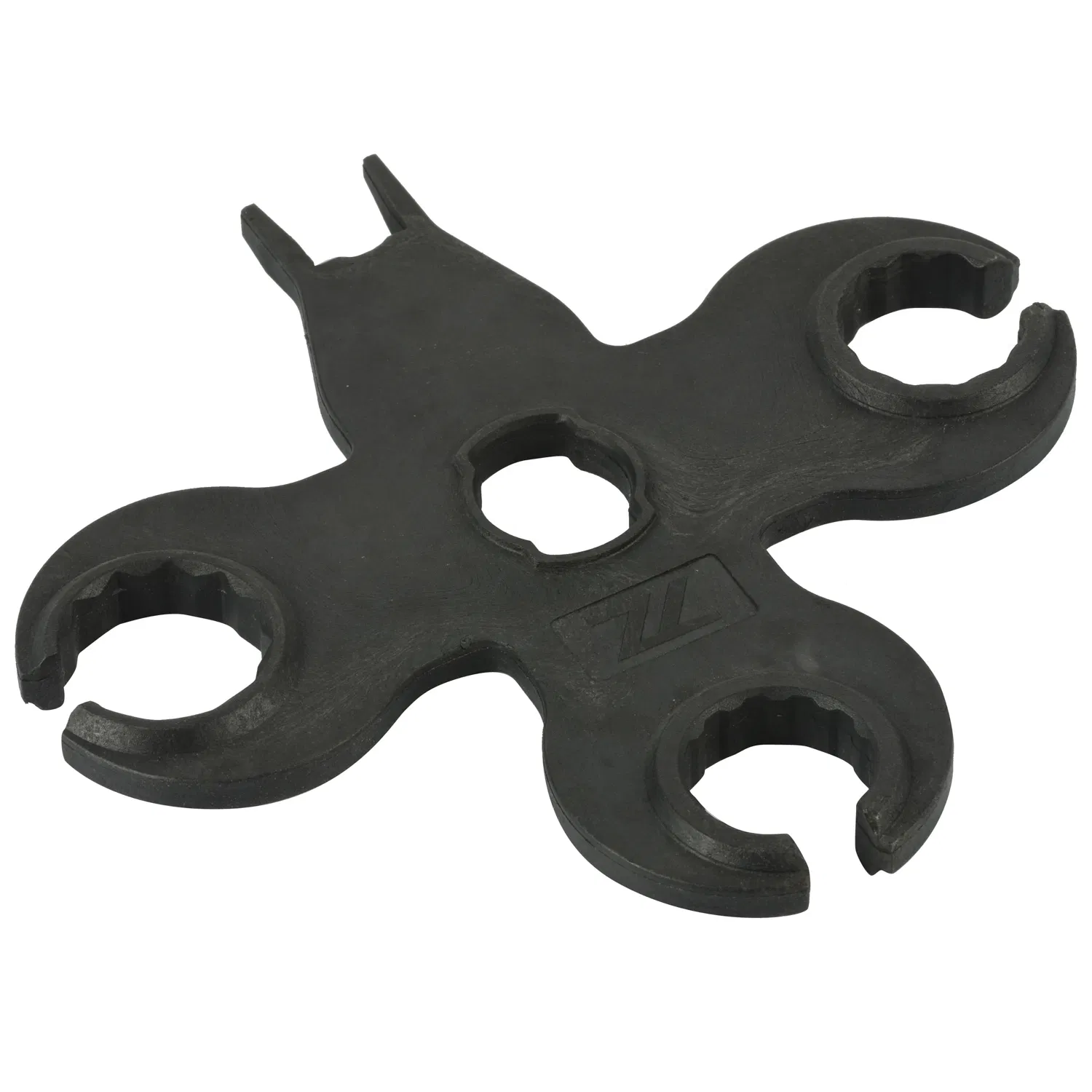

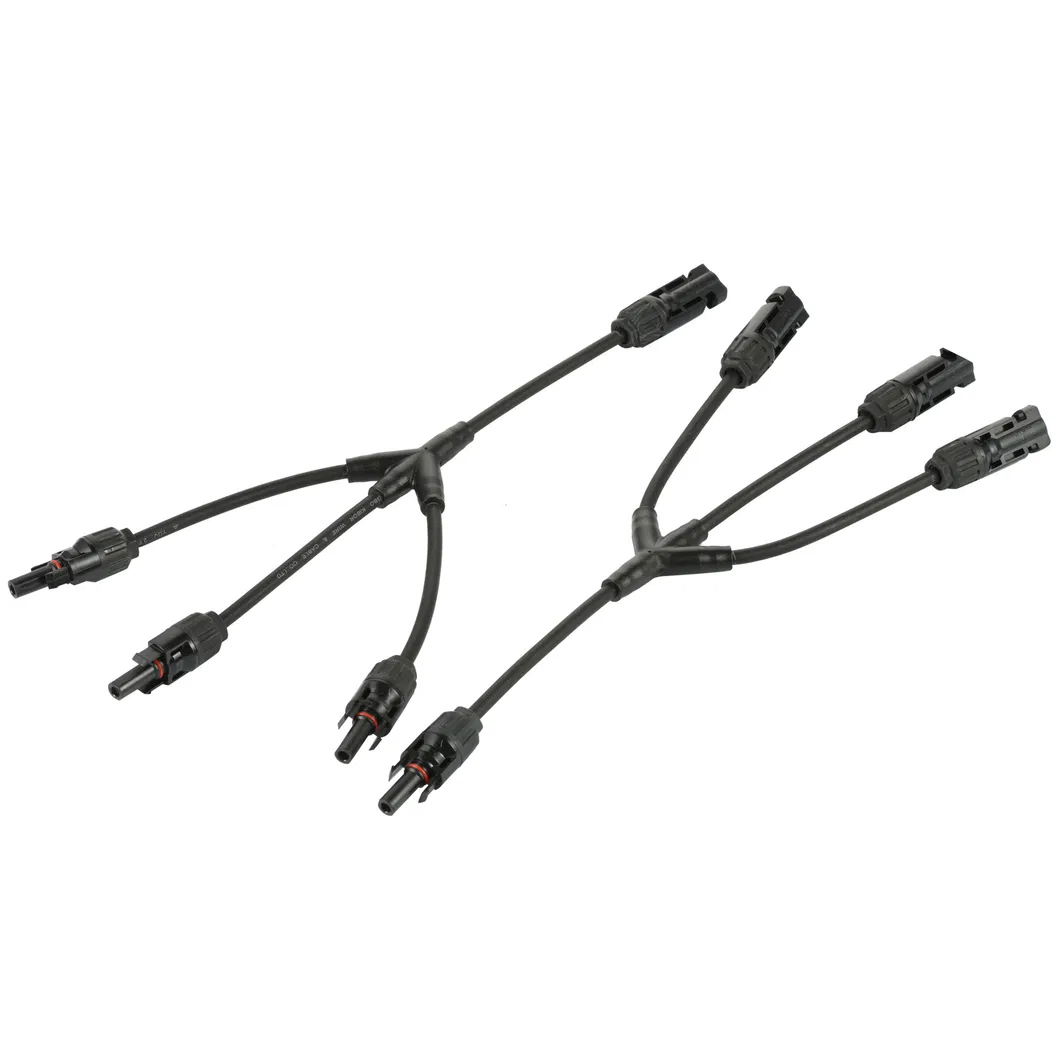

The Related products of MC4 solar connector
The package of MC4 solar cable connector
Standard export carton packing:MC4 connector 1000pair/ctn
Carton Size 48*36*35CM
G.W./N.W.: 23/22kgs
The Delivery time and shipping of MC4 solar cable connector
Deilivery time:
1-7 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
The FAQ of MC4 solar cable connector
Q1:If I'm interested in your MC4 when I can receive your quotation and detail information after send the enquiry?A:All your enquiry will be replied in 6 hours.
Q2;Can I get a sample before the order because I really don't how is your MC4 quality?A:Of course! We also think sample order is the best way to build the trust.And in our company we offer free sample service! Please send the enquiry to us and get the free sample!
Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
