5kw Hybrid Solar Power System Home

Product Description

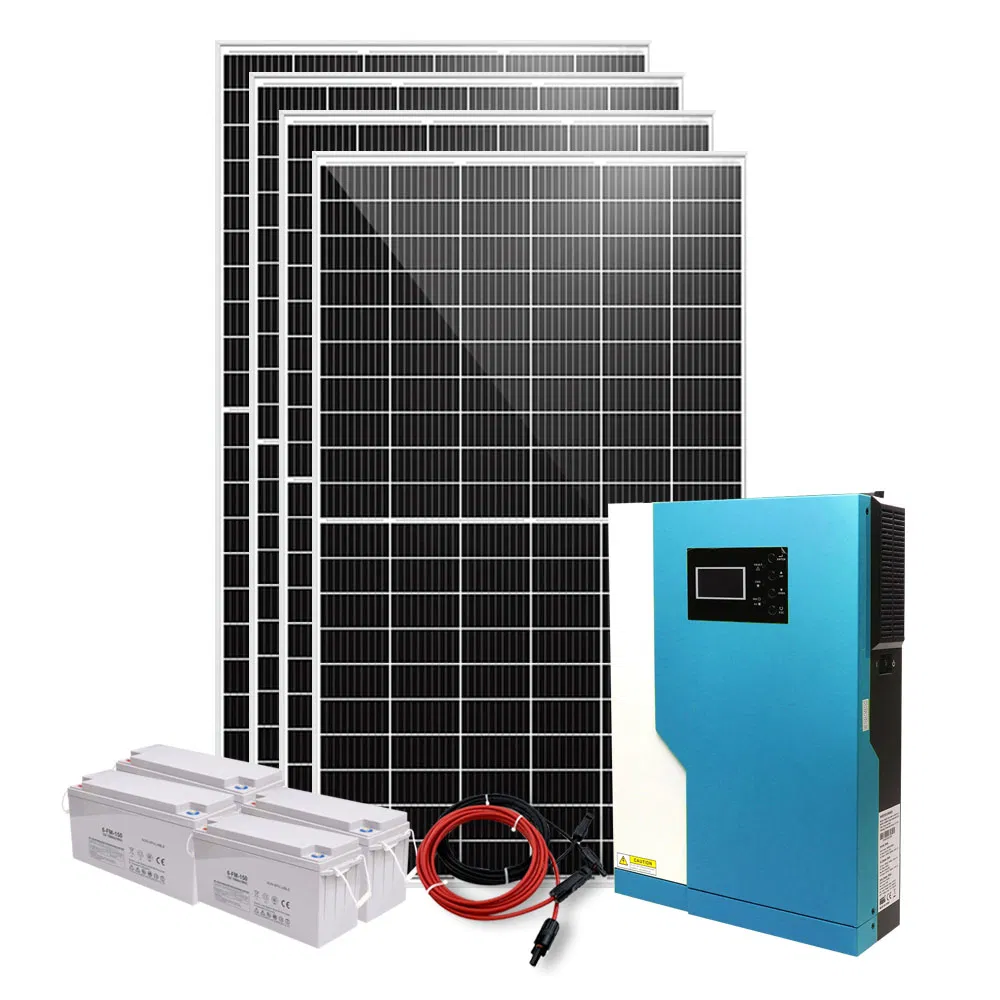

5.5kw Complete Hybrid Off Grid Solar Power Home System For Houses

A FADI Solar Power System set up can take some planning and thought. But, the benefits in most cases far outweigh the costs in both time and money. In most cases our clients find that the advantages of a stand alone PV system are; There are can be little or no ongoing running costs. If you live in remote locations it may be more cost effective to install than getting mains electricity connected. no ongoing electricity bills or dealing with electricity companies The solar power system home are designed to store days' worth of electricity so, in poor weather conditions such as after high winds or cyclones it is still possible to draw ample amounts of power.

Item	Model	Quantity
Inveter	5.5KW MPPT Inverter	1pcs
Battery	250Ah gel	12pcs
Solar panel	450W	12pcs

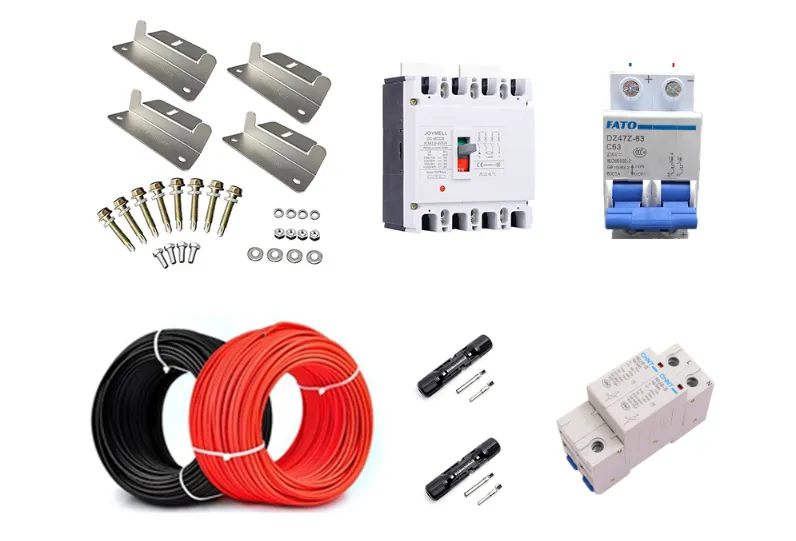

Mounting Structure	Roof bracket	12sets
PV Cable	4mm2/6mm2	100m

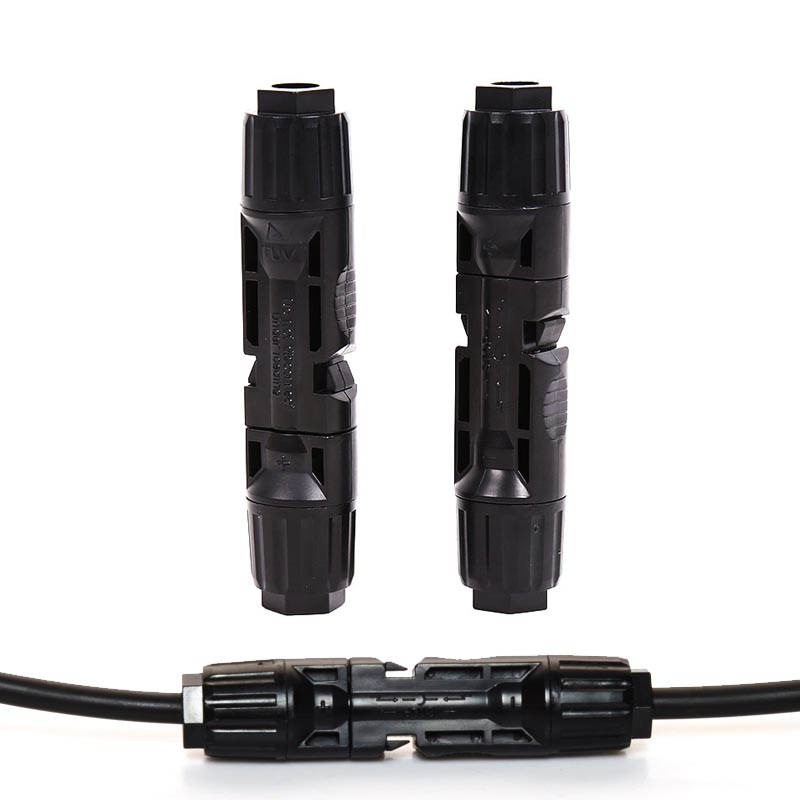

PV connector	MC4 Connector	10pairs

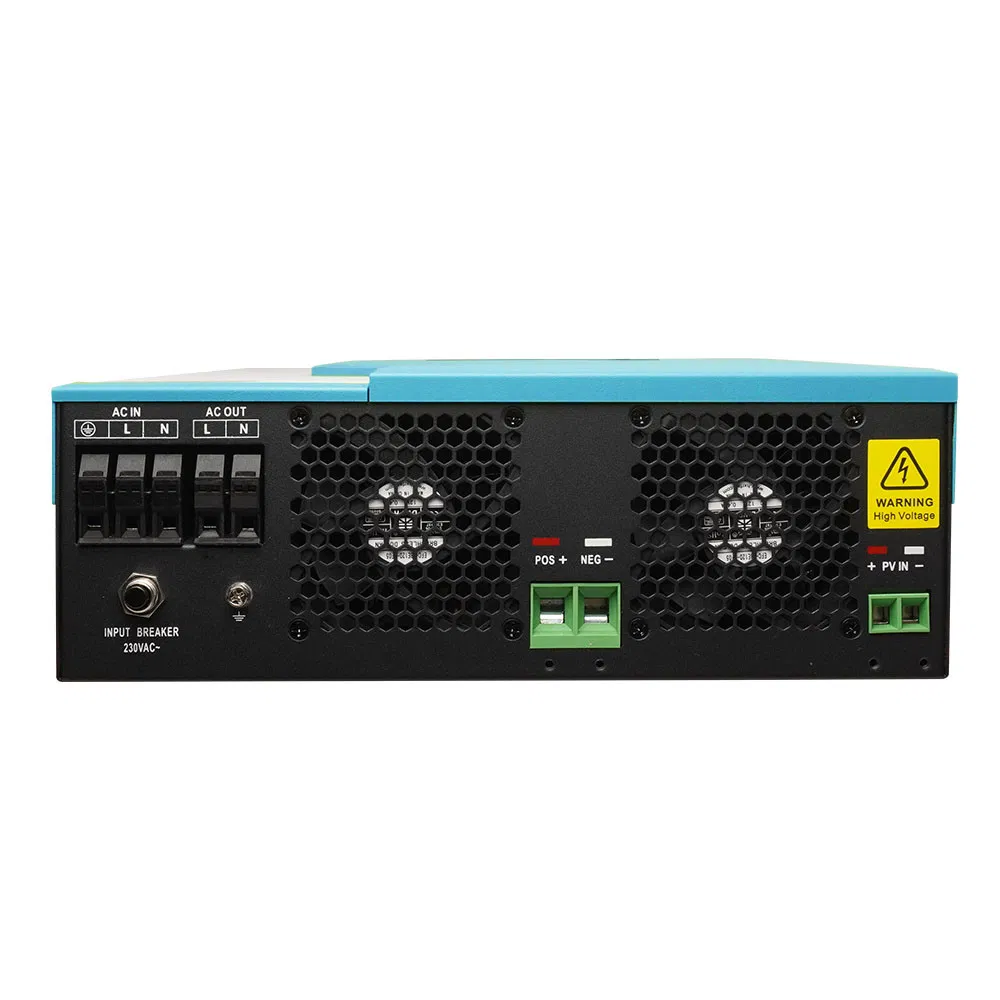

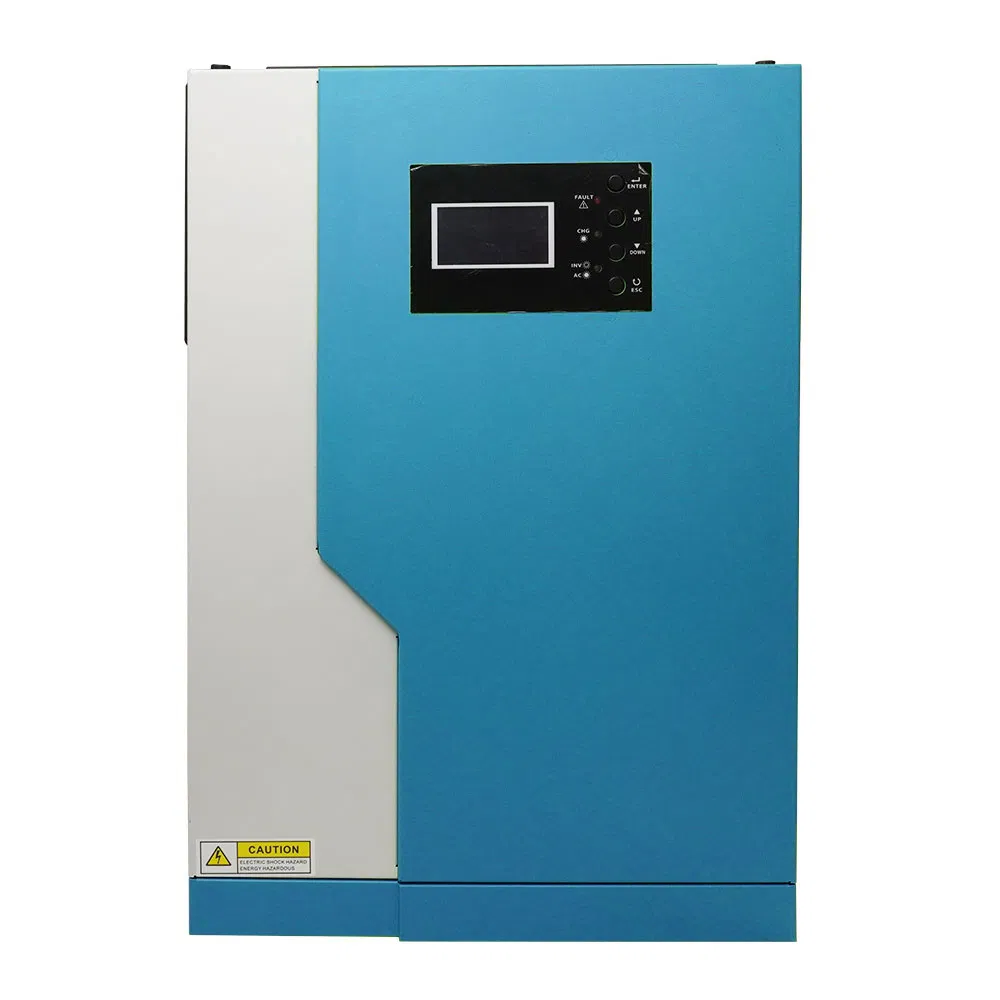

5500W Inverter+controller Hybrid (can working without battery)

1.Rated Power:5500va/5500w
2. Controller:48v 100a mppt
3. MPPT operate range: 120-450VDC
4. Max PV power: 6000W
5. Diemension(D*W*H):100*300*440mm
6. Net weight:12KGS
7. Communication interface: USB/RS232/GPRS/WIFI
8. Operating temperature: 0 to 55C
9. Storage temperature: -15C to 60C

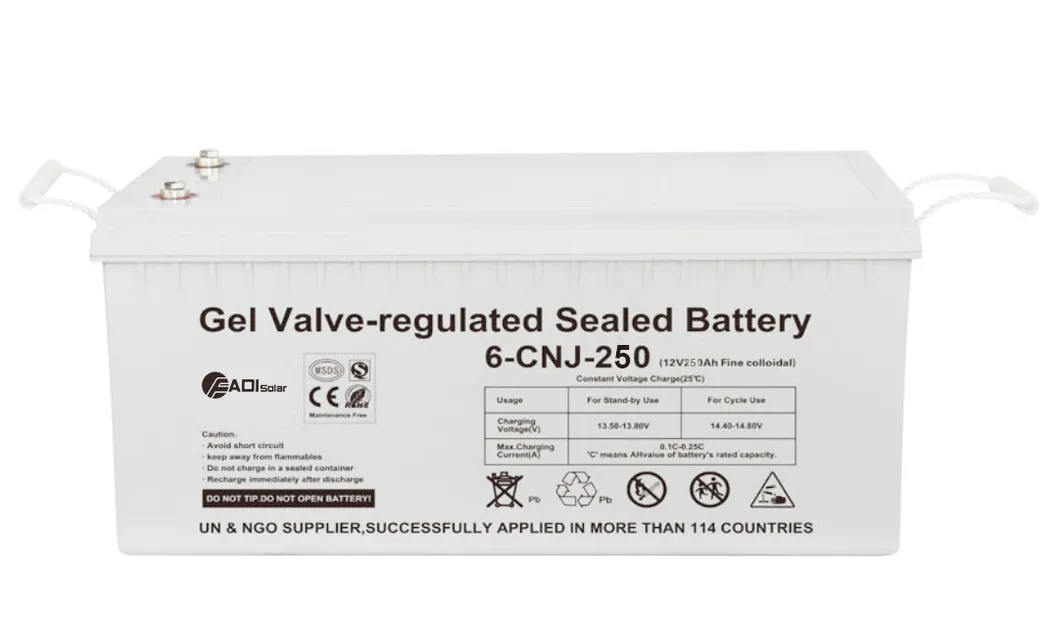

Gel Battery

1. Rated voltage: 12V
2. Capacity: 250Ah
3. Weight:64KGS
4. Self-discharge: <3% per month
5. Cover material: ABS

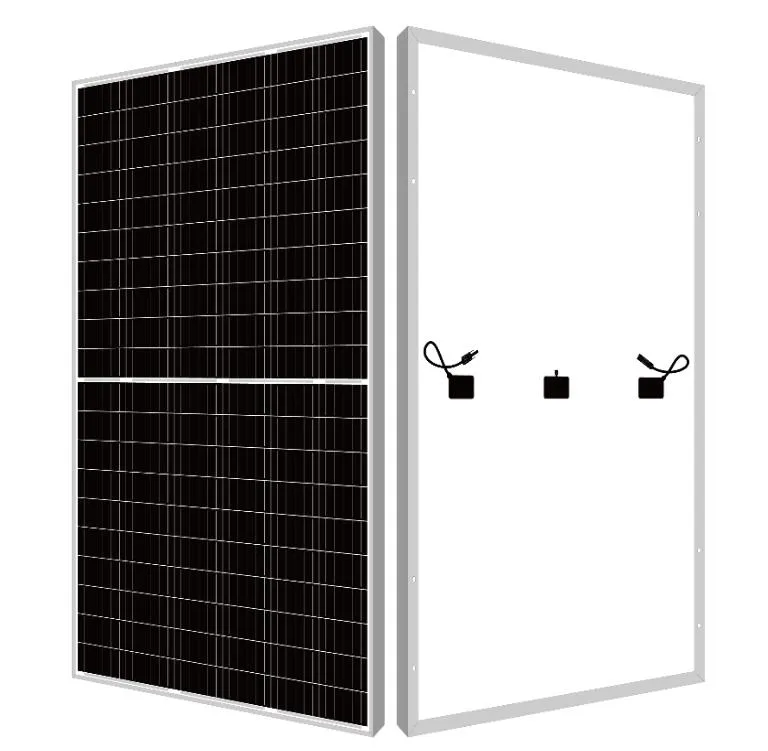

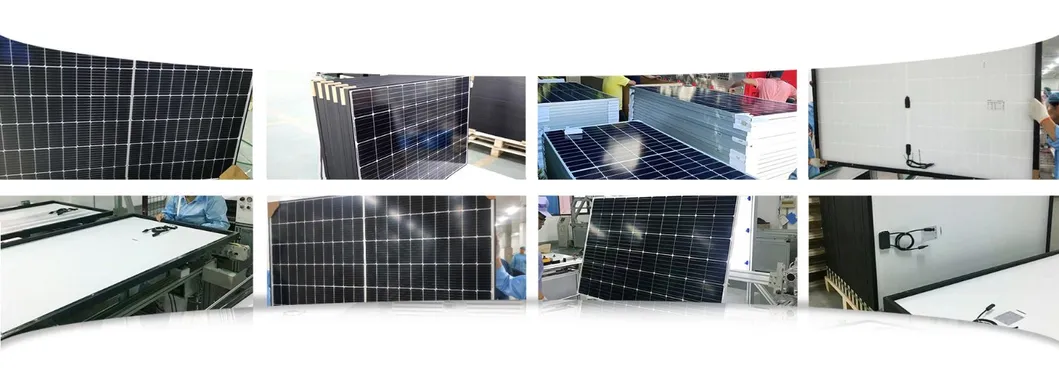

450W Mono crystalline PV module

1. Power: 450W
2. Size: 2094*1038*35mm
3. Weight: 24KGS/PCS
4. Module efficiency:20.7%
5. Voltage at Pmax:41.2V
6. Current at Pmax:10.92A
7. Open-circuit Voltage:49.7V
8. Short-Circuit Currect:11.54A
9. A grade high quality solar panel
