5500W off Solar Home Solar Power System 5.5kw MPPT Hot Selling Solar Power Inverter System Energy Saving Solar Energy System
Product Description Product Parameters3.5/5.5kw hybrid off grid solar power system! VM II PLUS 5.5KW Solar Hybrid Inverter with MPPT 100ADC Input 120-500Vdc/Working with or without battery Model 5500W-48VRATED POWER5500VA / 5500WINPUTVoltage230 VACSelectable Voltage Range170-280 VAC (For Personal Co......
Send Inquiry
Product Description

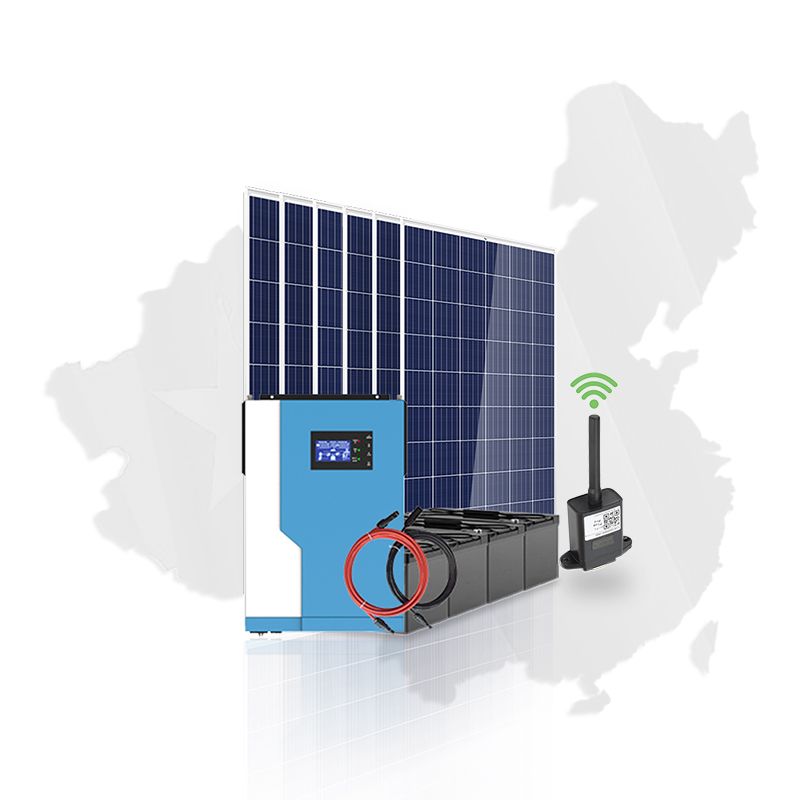

3.5/5.5kw hybrid off grid solar power system!
VM II PLUS 5.5KW Solar Hybrid Inverter with MPPT 100A
DC Input 120-500Vdc/Working with or without battery

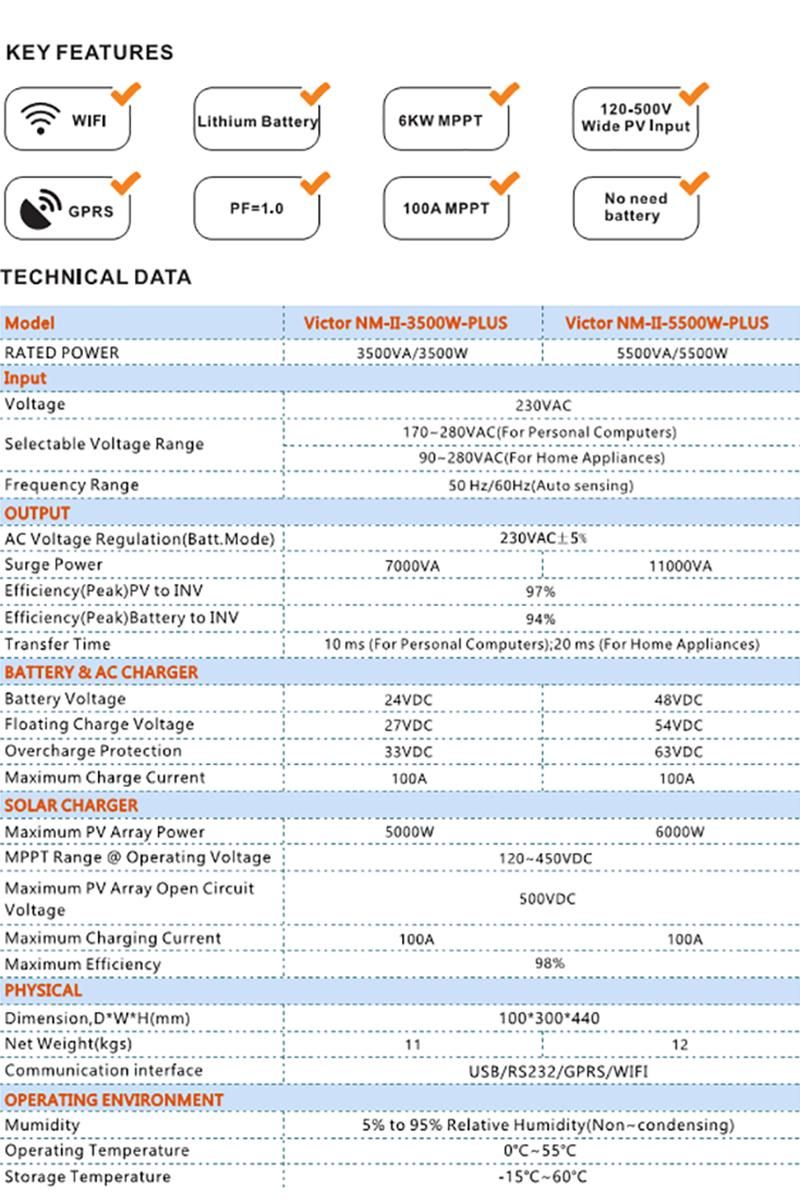

| Model | 5500W-48V |
| RATED POWER | 5500VA / 5500W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; |
| 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC 5% |
| Surge Power | 11000VA |
| Efficiency(Peak) PV to INT | 97% |
| Efficiency(Peak)Battery to INT | 93% |
| Transfer Time | 10 ms (For Personal Computers) ; |
| 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Max. PV Array Open Circuit Voltage | 500VDC |
| Max. PV Array Power | 6000W |
| MPP Range @operating Voltage | 120~450VDC |
| Max. Solar Charge Current | 80 A |
| Max. AC Charge Current | 80 A |
| Max. Charge Current | 80 A |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 100 x 300x 440 |
| Net Weight (kgs) | 12 |
| Communication Interface | USB/RS232/GPRS/WIFI |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10C to 60C |
| Storage Temperature | -15C to 60C |

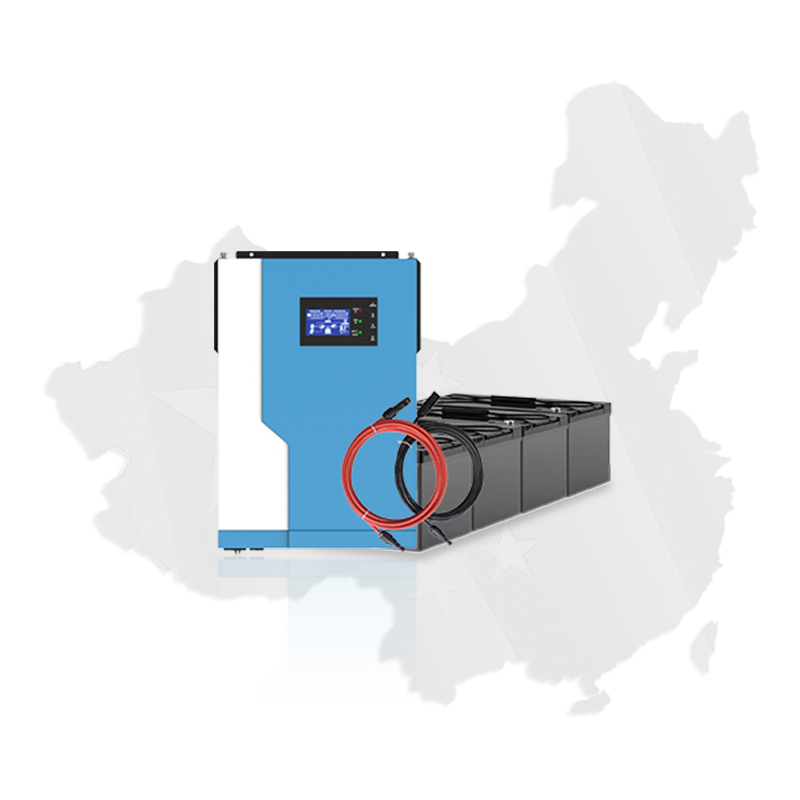

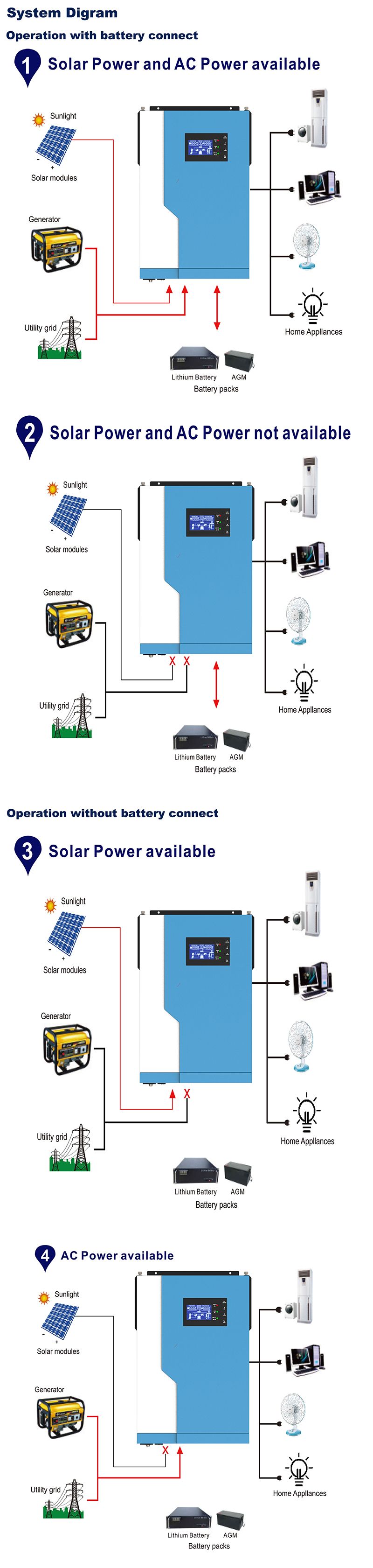

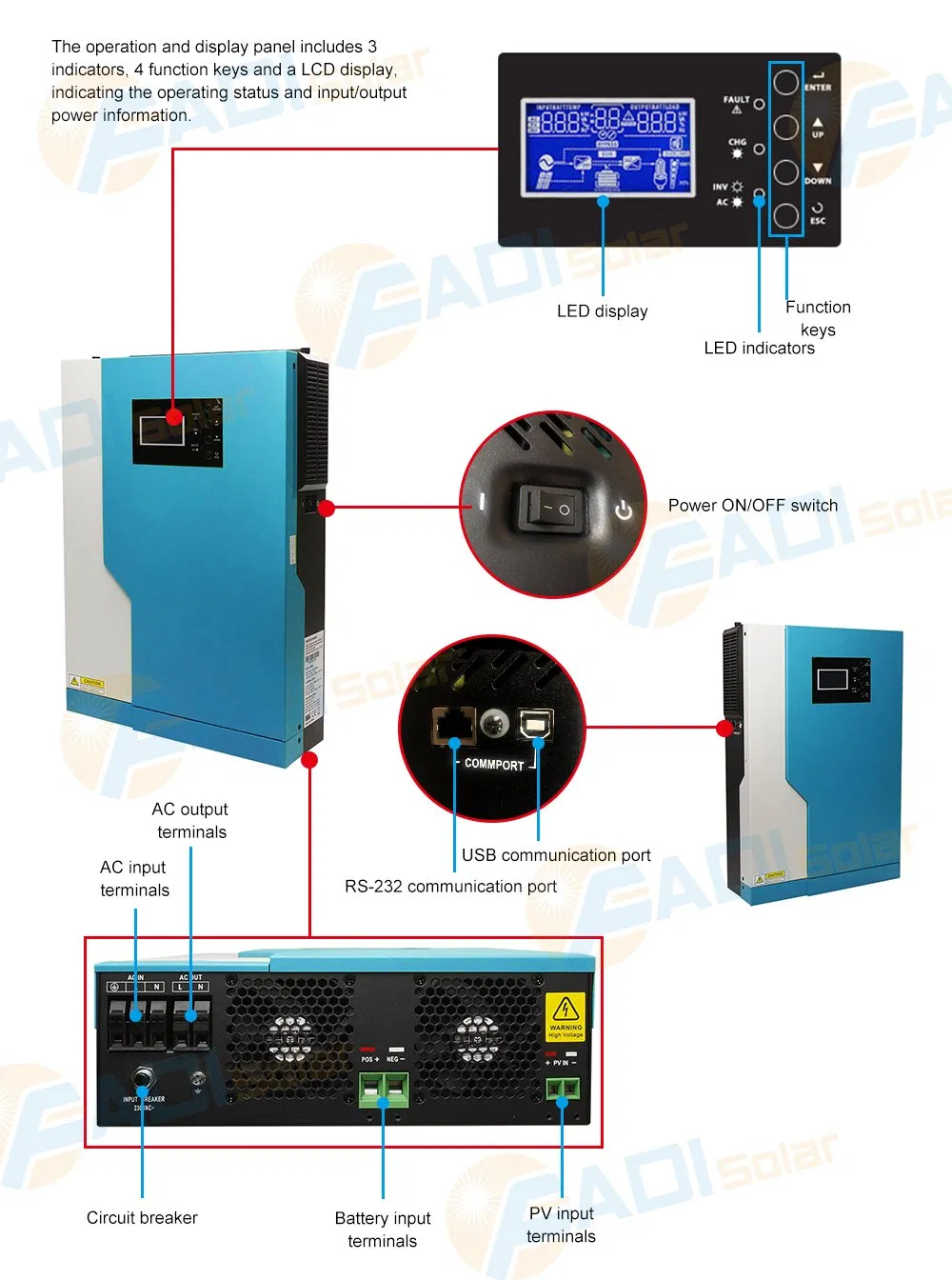

This is a multi functional inverter/charger, combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current,
AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
1.High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.

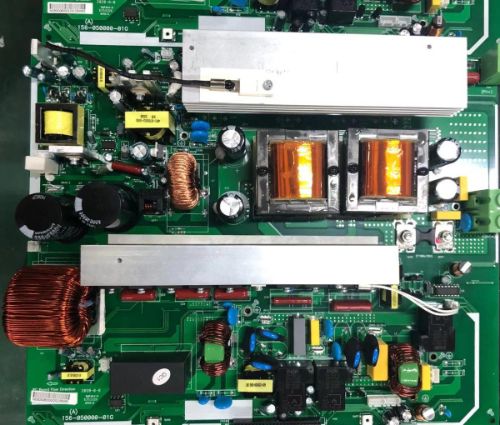

5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.

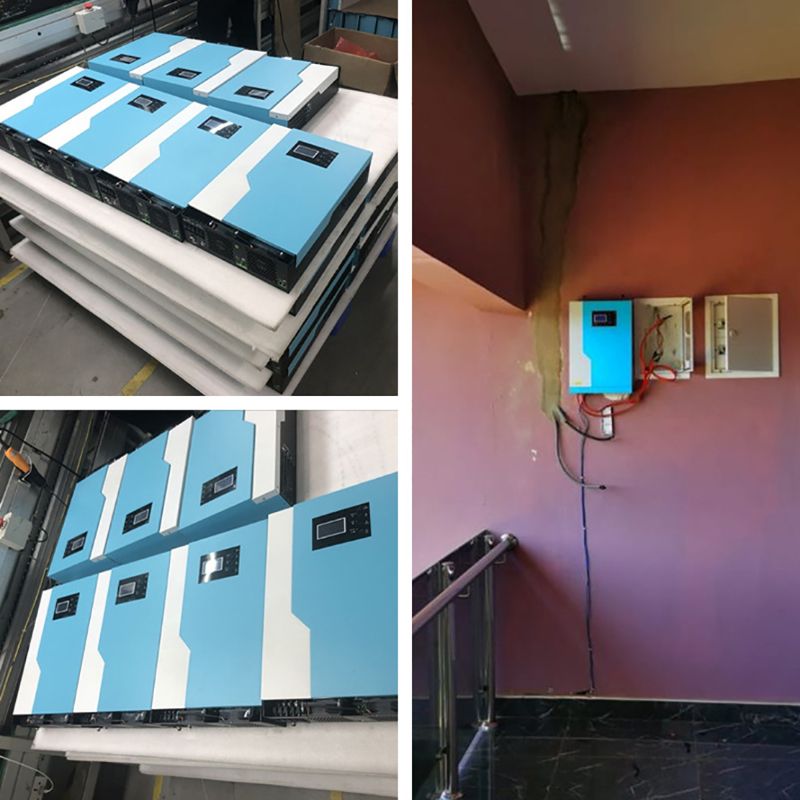

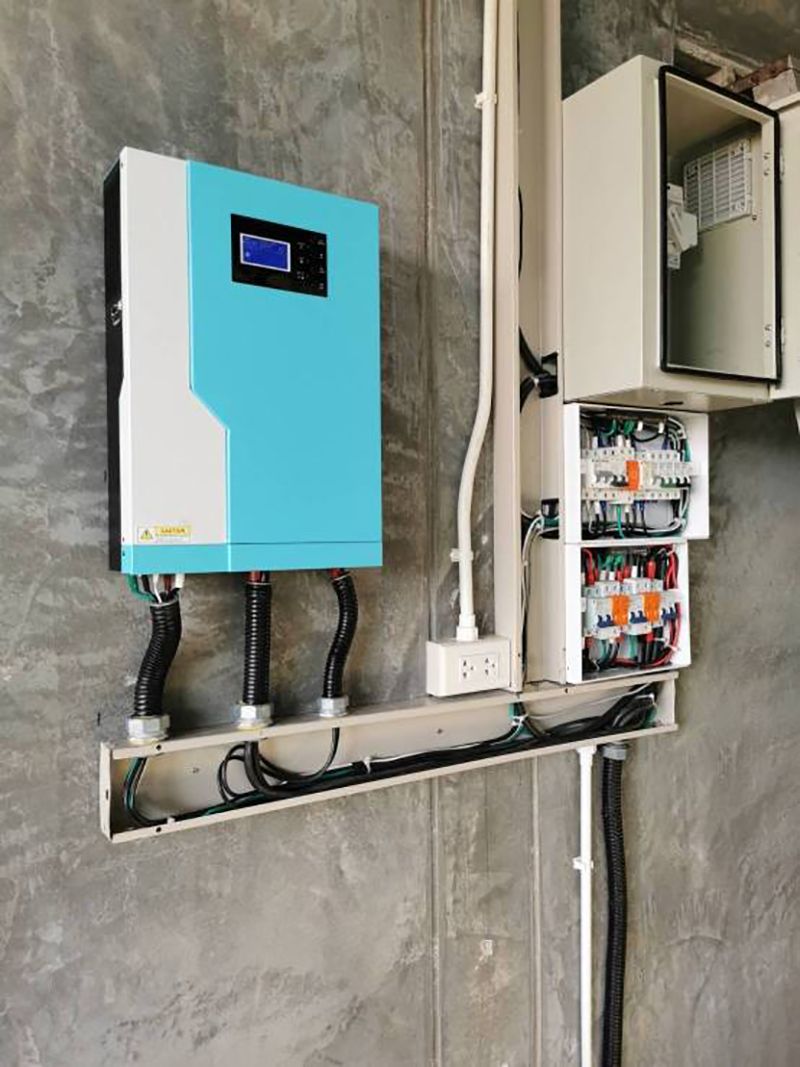

7. System configures quickly into compact, wall-mounted system.
Key Feature:
1.Pure sine wave solar inverter
2.Output power factor 1
3.Wi-Fi/GPRS available for IOS and Android
4.Inverter running without battery
5.Bult-in 100A MPPT Solar Charger
6.High PV input voltage range 120V~500V
7.Smart battery charge design to optimize battery life
1.Pure sine wave solar inverter
2.Output power factor 1
3.Wi-Fi/GPRS available for IOS and Android
4.Inverter running without battery
5.Bult-in 100A MPPT Solar Charger
6.High PV input voltage range 120V~500V
7.Smart battery charge design to optimize battery life
We provide:
12 years warranty for solar panels
1 year warranty for solar inverters, can extend to 2 year.
3 year for batteries.
others; 1 year.
Any items due to our quality problem will replace with brand new ones!
Over 12 years experience in sustainable energy business
24/7 Pre & After service team, ready to serve on valuable client
Professional * INNOVATION * QUALITY.
Delivery time guarantee!
Joint us, and be a distributor of FADI SOLAR!
