Product Description

Cheap price 5kw portable solar power system home price

Type	5KW Off-grid system
Inquirement	5KW load power demand;Standard configuration;System voltage DC96V
System configuration and quotation
Item	Name of Equipment	Specification	Qty
1	Solar Panels	Poly 325W	10pcs
2	bracket	C type steel	1set
3	DC-AC Power Inverter	JN-H-5000	1set
4	Solar Controller JN-MPPT-CL	JN-MPPT-CL	1pcs
5	Gel battery	12V-200AH	8pcs
6	cable	PV-F1*4mm²	60m
		BVR-16mm²	30m
		BVR-16mm²	10m
		BVR-6mm²	10m
7	battery bracket	angle steel	1set
8	AC box	5KW/220VAC	1
9	Assembly connection male/female plug	MC4	3

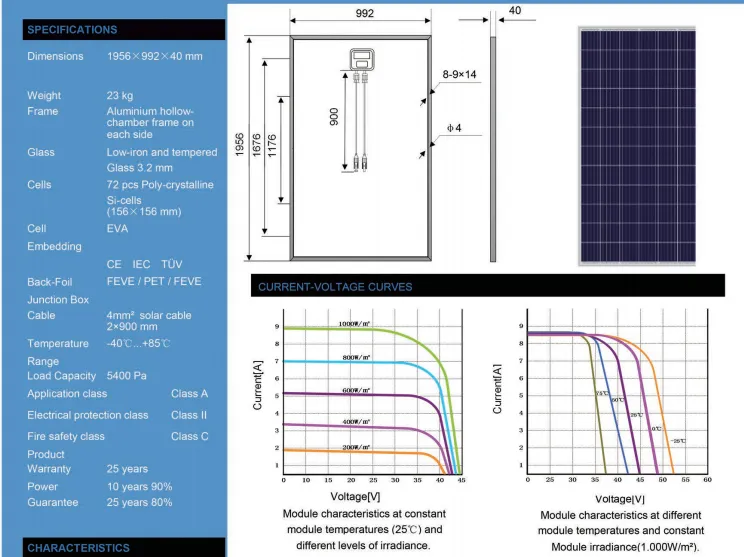

1, Detail Information for solar panels:

Maximum Power(W):325W

Optimum Power Voltage(Vmp):38.21V

Optimum Operating

Current(Imp):8.51A

Open Circuit Voltage(Voc):45.85V

Short Circuit Current(Isc):9.06A

Size:1956*992*40mm

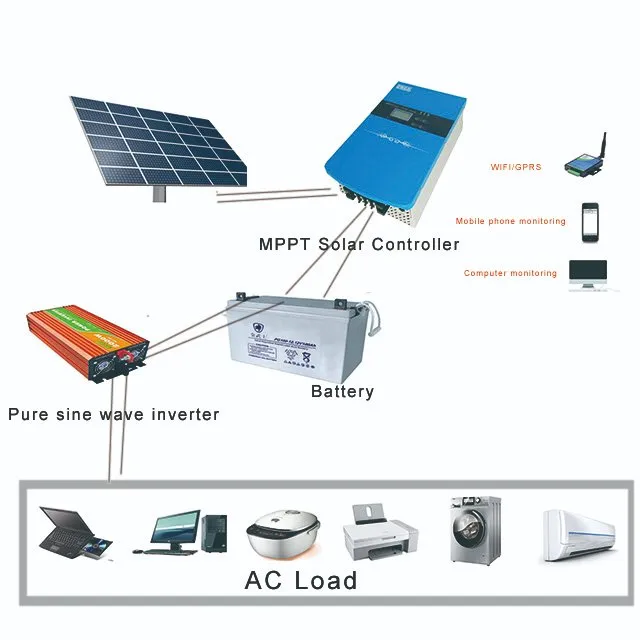

48VDC - 220VAC solar energy systems home with solar MPPT solar+ controllers

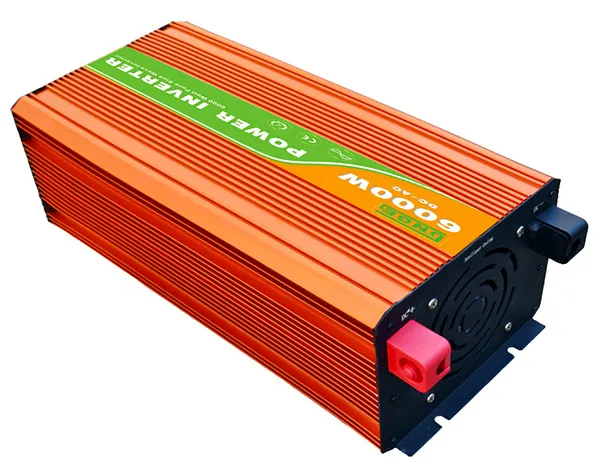

2, Detail Information for DC-AC Power Inverter

Power Level	5000W
Peak Power	10KW(<1S)
Input Voltage	48v
Output Voltage	100VAC±5%/110VAC±5%/120VAC±5% or 200VAC±5%/220VAC±5%/240AC±5%(Can custom)
Output Frequency	50HZ±0.5HZ or 60HZ±0.5HZ
Output Waveform	Pure Sine Wave
Wave form distortion	THD<3%(linear load)
Output Peak Efficiency	Maximum 94%
Starting Mode	Front and back the bipolar soft stat
Switching Time	<=10mS
Switching Way	DC/AC can be automatically set priorities
Cooling	Intelligent air cooled (fan start over 45 degrees)
Protect Function	Under voltage /Overvoltage
	Over-Load

Contact us
Mr. Robin Pen
Anhui JNGE Power Co.,LTD.
Official website: jngepower.en.made-in-china.com

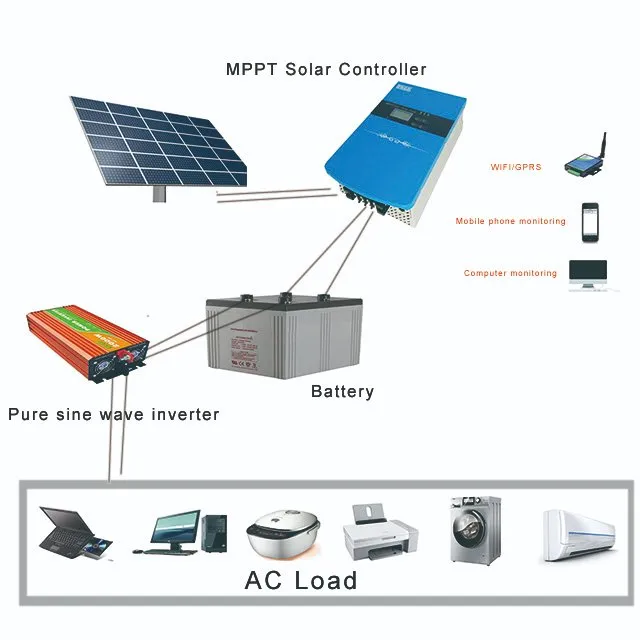

48VDC - 220VAC solar energy systems home with solar MPPT solar+ controllers

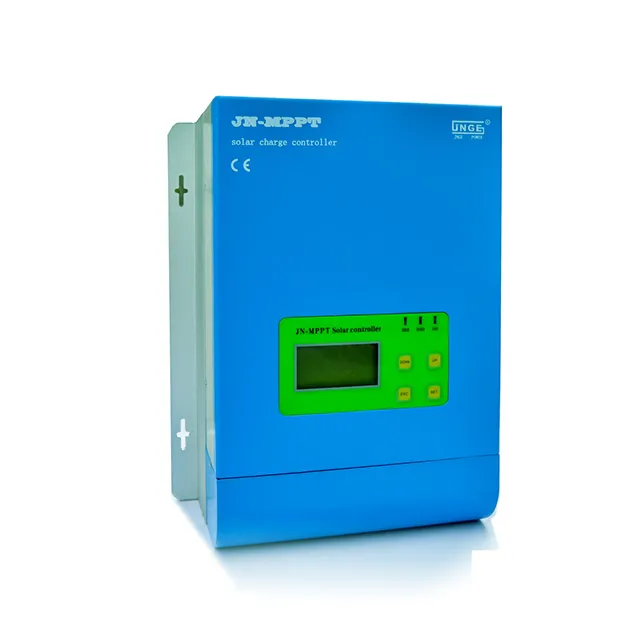

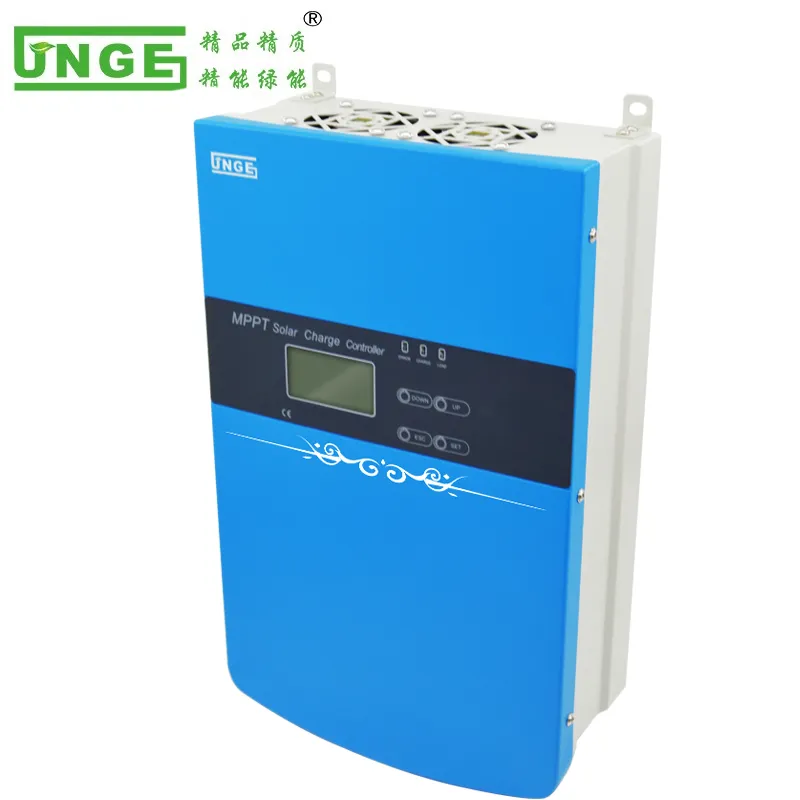

3, Detail Information for solar controller:

Model	JN-MPPT-BL					JN-MPPT-CL
Current rating (A)	30	40	50	60	70	50	60	80	100	120
PV maximuminput power (24V) (W)	800	1000	1200	1500	1700	1200	1500	2000	2400	2900
PV maximum input power (48V) (W)	1600	2000	2400	3000	3400	2400	3000	4000	4800	5500
System identification voltage range v	24V battery system:DC18V-DC32V 48V battery system:DC42V-DC60V
PV panel open circuit input voltage range v	40V~145V(24V battery system) 80V~145V(48V battery system)
MPPT efficiency	>99.5%
Conversion efficiency	>98%
Operating mode	The default is the household mode 24H

Battery parameter reference table:
Overvoltage (overcharge(v)	26~34V@24V system 52~68V@48V system
Over voltage return (v)
Charge limit voltage(v)	18~30V@24V system 36~60V@48V system
Boost charge(v)
Boost charge return(v)
Float voltage (v)
Over discharge (v)	14~26V@24V system 28~52V@48V system
Over discharge return(v)	18~30V@24V system 36~60V@48V system
Ternary lithium battery & Lithium LIFEPO4
