48V/51.2V 100ah 5kwh LiFePO4 Battery RS485/Can Communication Port 5u Energy Storage System solar Power

Product Description

Specification of battery pack

Model	48V 100AH
Nominal Voltage	51.2V or 48V
Voltage range	40-54
Nominal Capacity	100Ah	150Ah/200Ah available
Dimension	500440270mm	Customized
Weight	60kg
Continuous Discharge Current	50A	Customized
Peak Discharge Current	100A	Customized
Max Charge Current	25A
Max Charge Voltage	14.6V
Cut-off Discharge Voltage	9.2V
Cycle life	Above 3500 cycles

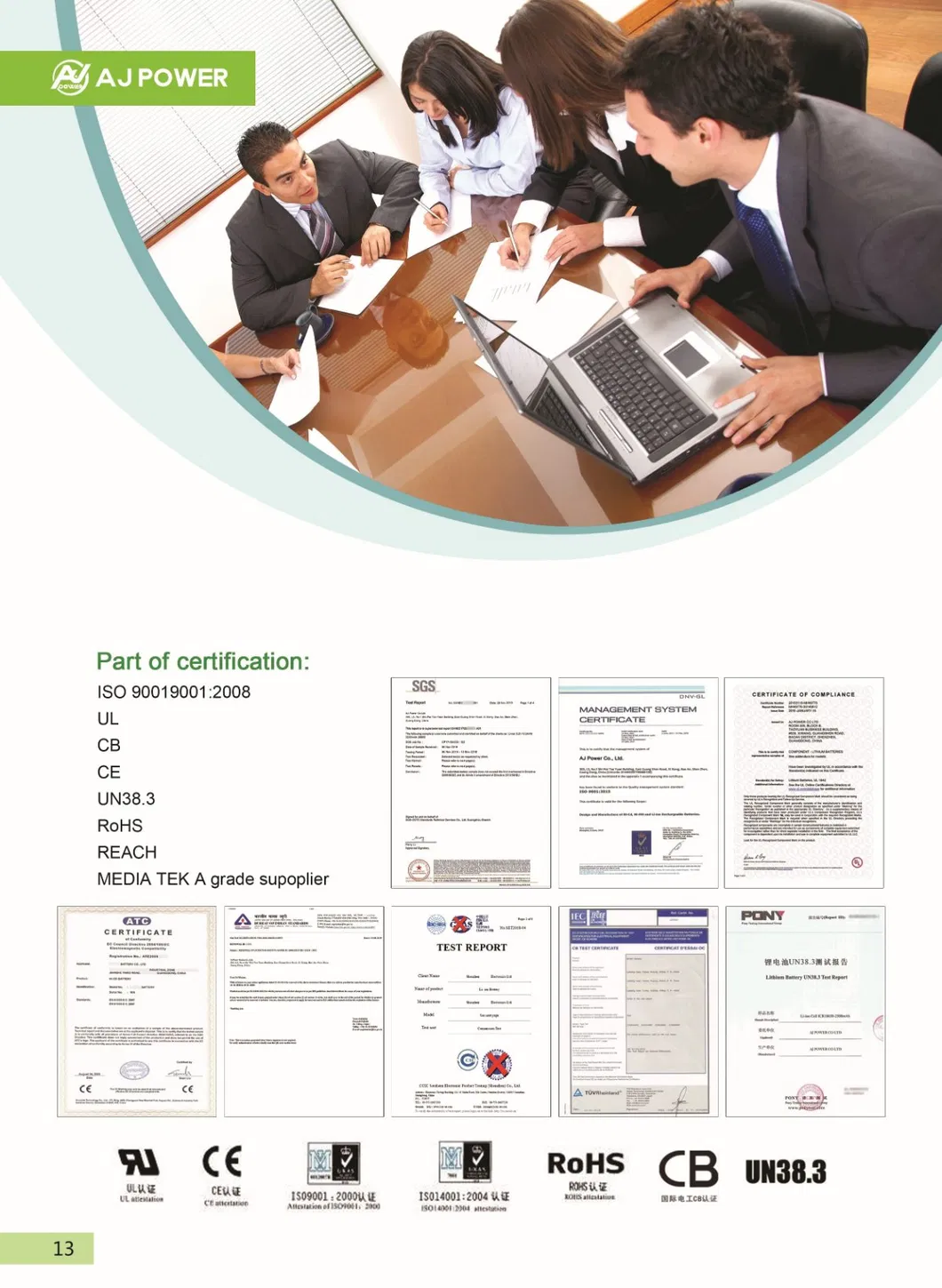

Certificate	CE,RoHs,UN38.3,IEC62133
Housing	Metal case	Customized
Lead time	20-30 days for production,7-15 days for samples, depending on stock and quantity.
Operation Temperature	-10~60ºC
DOD(Depth of Discharge)	80%(10-90%)
Protection	BMS
Humidity	5%~95%
IP level	IP20
Communication port	RS232, RS485,CAN
cabinet	it can do for the battery and more safety

1) Green product
2) Long standby time
3) One year warranty
4) Excellent safety performance
5) Excellent storage performance and low self-discharge rate
6) Short circuit testing passed
7) Overcharge testing passed
8) Over discharge testing passed
9) 150C thermal shock test passed
10) 1.2m drop testing passed

Spotlight:
1. Provide both single cells and battery packs
2.100% inspection before delivery
3. Inspects inner resistance, discharge platform and self-discharge
4. IEC standard, capacity ranges from 120mAh to 200Ah
5. Manufacturer of 18650 lithium ion battery, lithium polymer battery etc.
6. Established quality control systems under ISO9001
7. Customized packs, tags,
labels, plugs, connectors, over current protection, temperature cont8.l protection are available
8. Customizable colors (Qty required)
