1067 Factory Price Home/Commercial Solar Energy 20kw off Grid Solar System
Product Parameters System requirement instructionALICO SOLAR-20000W off-grid photovoltaic systemDesign Basisthe system DC voltage is set to 96VDC System configuration and offerItemPartSpecificationQuantityRemarks1Solar Panelmono 350W 54PCSconnection method:3pcs in one string and 9 strings in parall......
Send Inquiry
Product Description
| System requirement instruction | ALICO SOLAR-20000W off-grid photovoltaic system | |||
| Design Basis | the system DC voltage is set to 96VDC | |||
| System configuration and offer | ||||
| Item | Part | Specification | Quantity | Remarks |
| 1 | Solar Panel | mono 350W | 54PCS | connection method:3pcs in one string and 9 strings in parallel |
| 2 | PV combiner box | 3 inputs, 1 output | 3 SETS | |
| 3 | Bracket | C-shaped steel | 1 SET | |
| 4 | Inverter with mppt controller | 20000W | 1set | 1, Built-in 60A MPPT controller |
| 2, pure sine wave, high frequency output | ||||
| 3, support grid/Diesel input | ||||
| 5 | LiFePo4 battery | 48V-100AH | 12PCS | |
| 6 | DC breaker(battery to inverter) | MCCB 100A 2P | 3 PCS | |
| 7 | Connector (pv cable to solar panel) | MC4 | 9 pairs | |
| 8 | PV cables(solar panel to inverter) | 4mm2 | 600M | 300M red+300M black |
| 9 | BVR cables(pv combiner box to inverter) | 10mm2 | 180M | 90M red +90M black |
| 10 | BVR cables(confluence box to inverter) | 35mm2 | 32M | 16M red + 16M black |
| Instructions | 1. The battery can support 15000W load work 3hours. | |||
| 2. The maximum power load should not exceed 20000W (including inductive load impact: such as refrigerators, air conditioners, washing machines, etc. with motor load). | ||||
Note: Product dimensions and physical appearance in this data sheet are nominal. Alicosolar reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.
1.Solar Panel | 2.Off Grid Inverter | 3.Switch Box | 4.Power Meter |

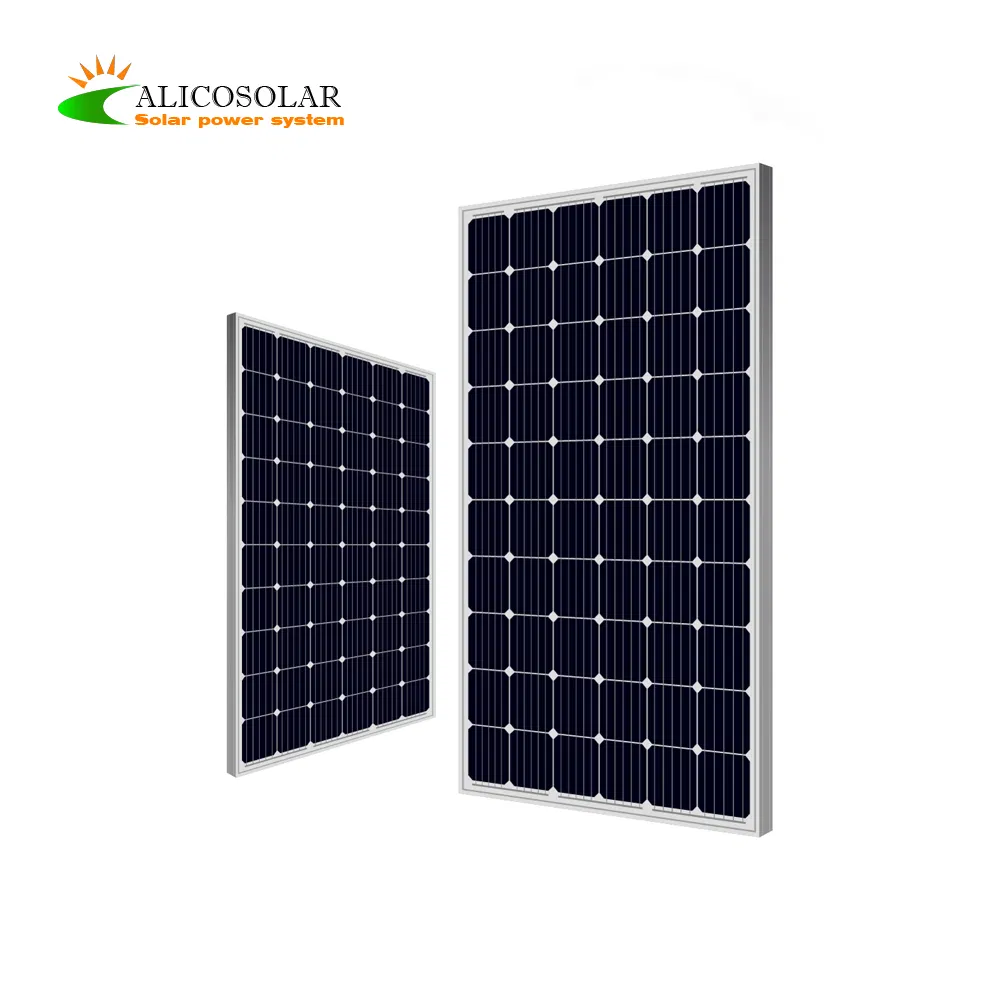

Mono Solar Panels
Peak Power Watts: 350W (ASM660350)
Maximum Power Voltage: 38.5V
Maximum Power Current: 9.09A
Open Circuit Voltage: 47.4V
Short Circuit Current: 9.58A
Dimensions:1956×992×35 mm
Weight:22 kg

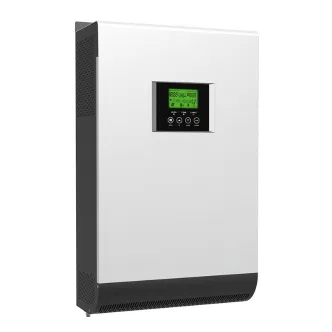

Off-Grid Inverter
Max.DC Input Power: 8.5KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.
Remote Monitoring System

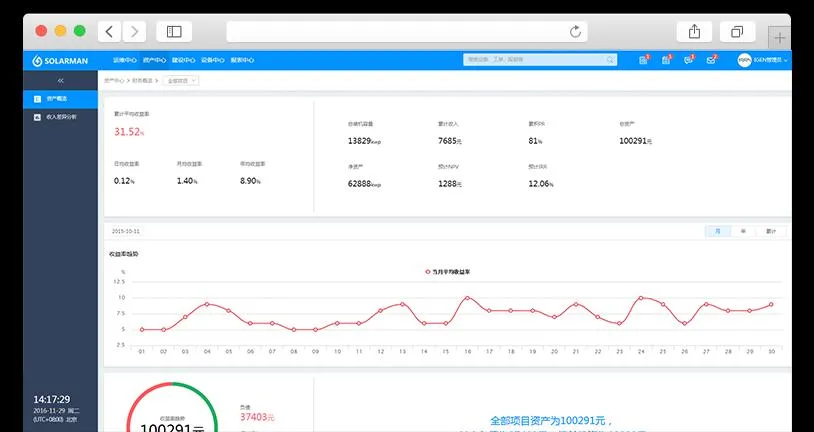

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod

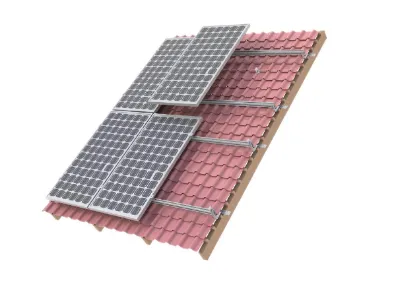

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

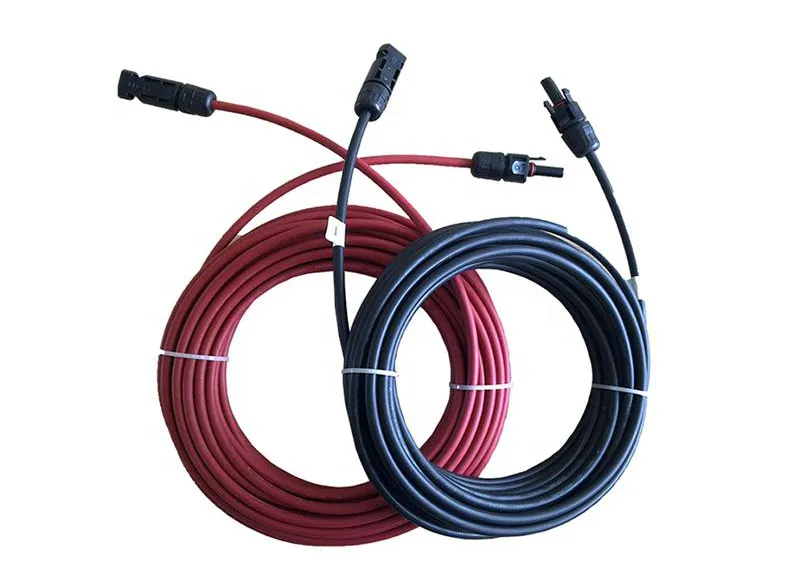

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

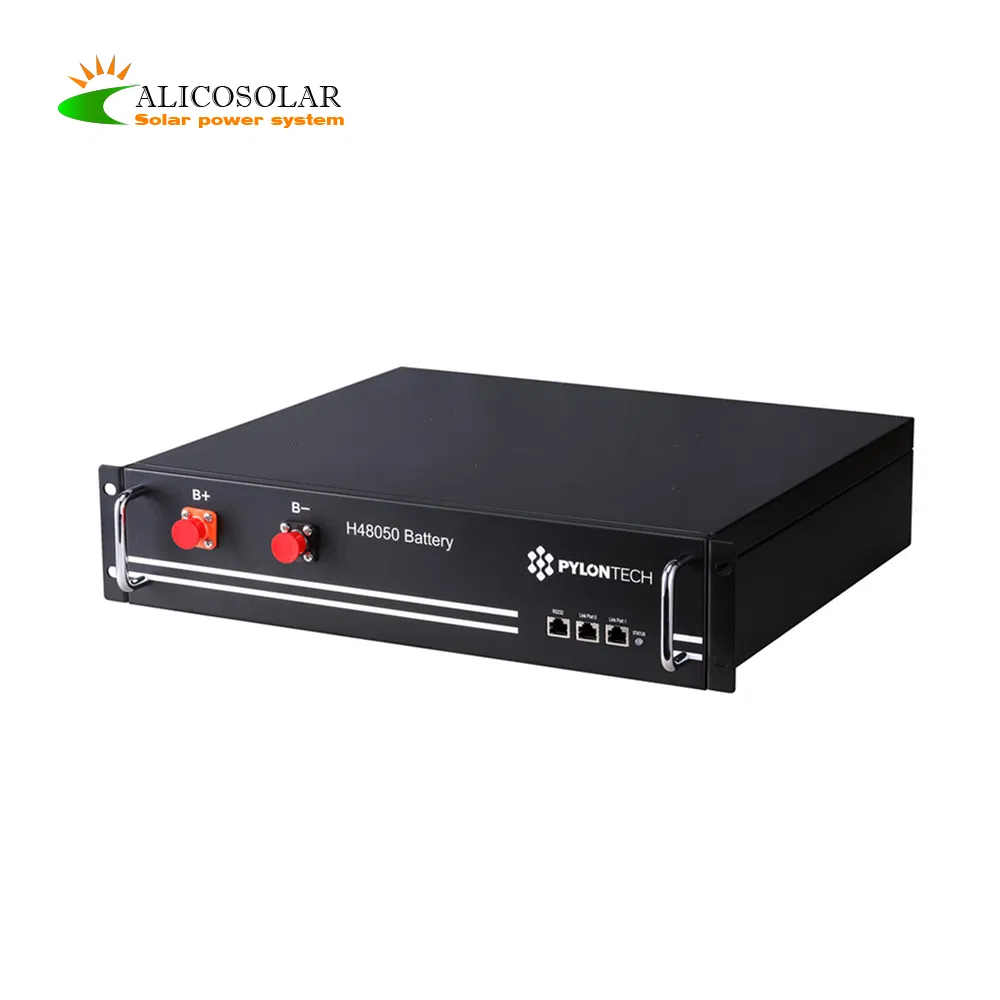

Lithium battery
48v 100ah
dimmension:4-5U

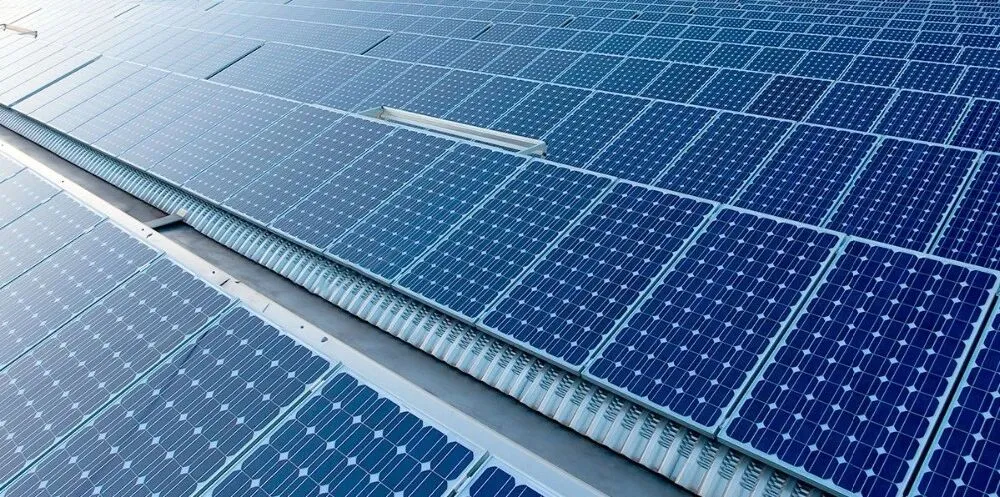

12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015

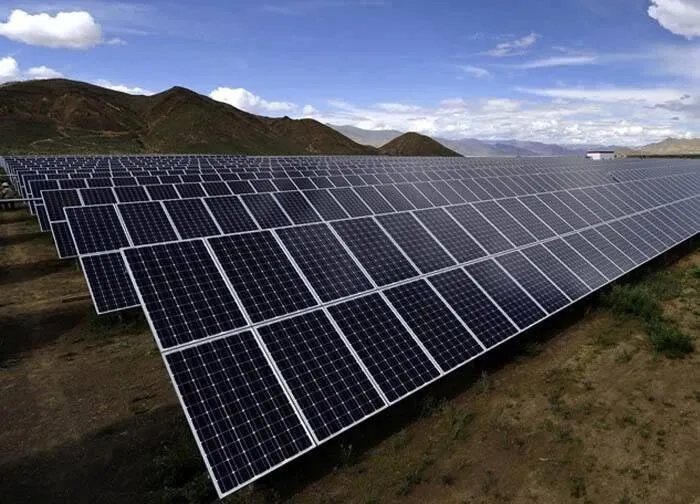

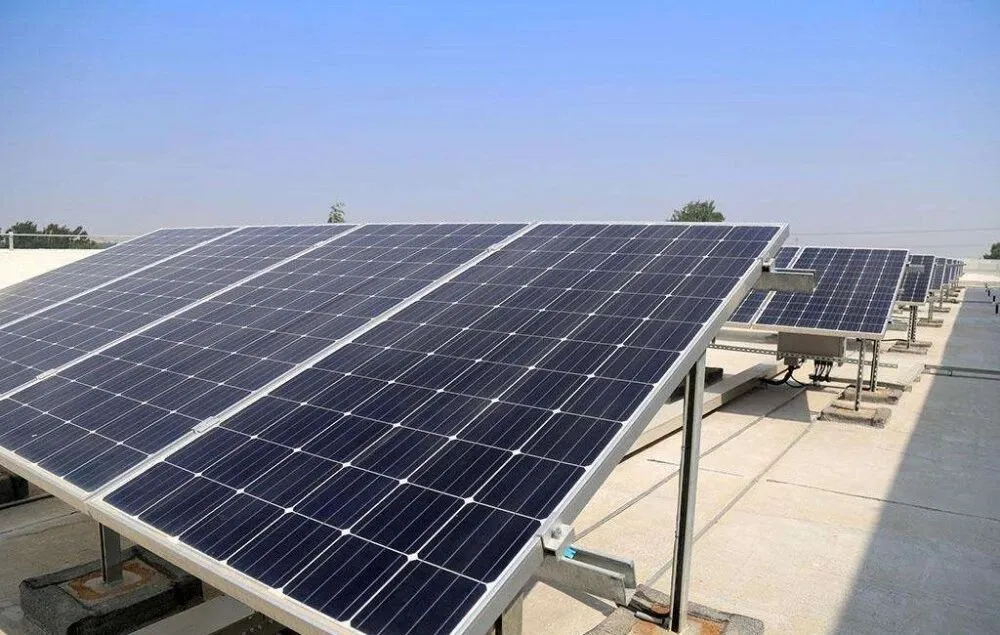

20MW Ground Solar Plant in USA
50MW Solar Plant in Brazil
20KW Solar Plant in Mexico
