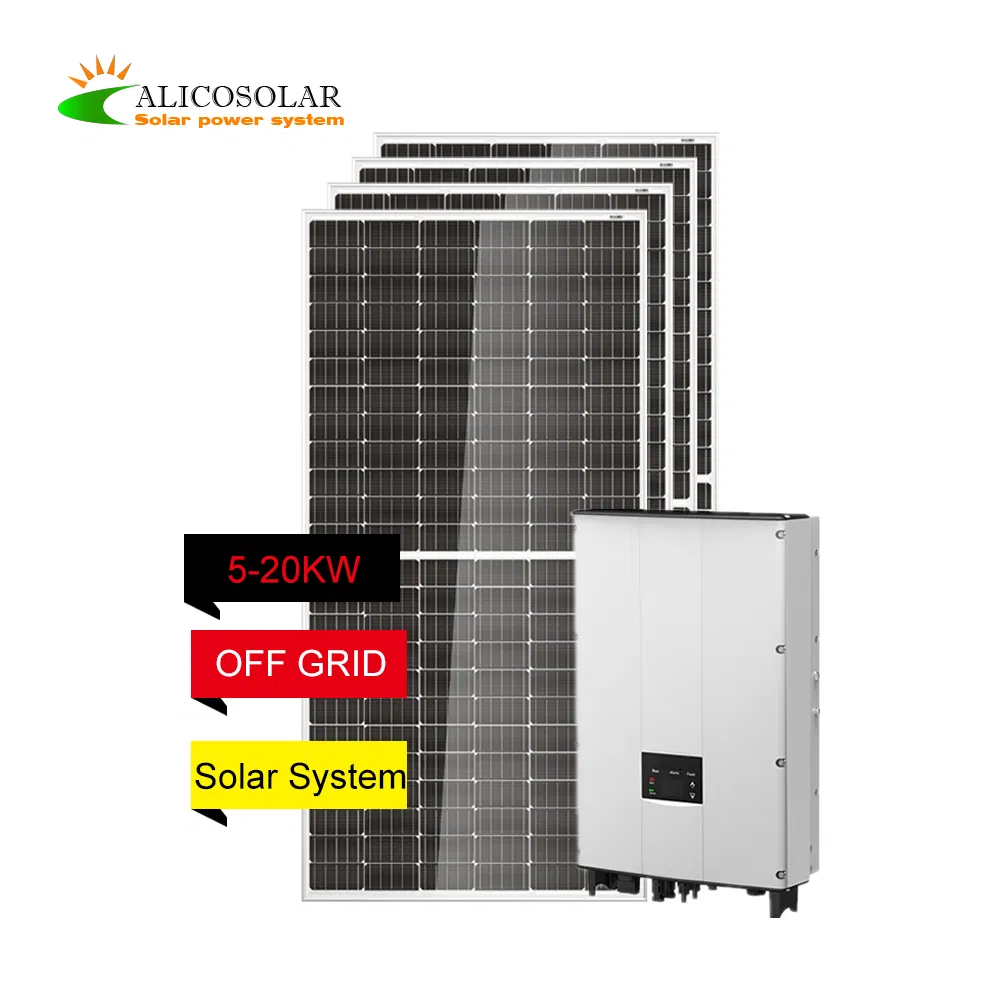

1055 Home Use on Grid off Grid Solar PV Solar Power System for Home 12kw

Product Description

Name	12KW Off-grid Description	Quantity
Solar Panel	Mono/Poly 500W 96Cells PV Module	24 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	0 Set
Off-Grid Inverter	12KW off grid inverter	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set

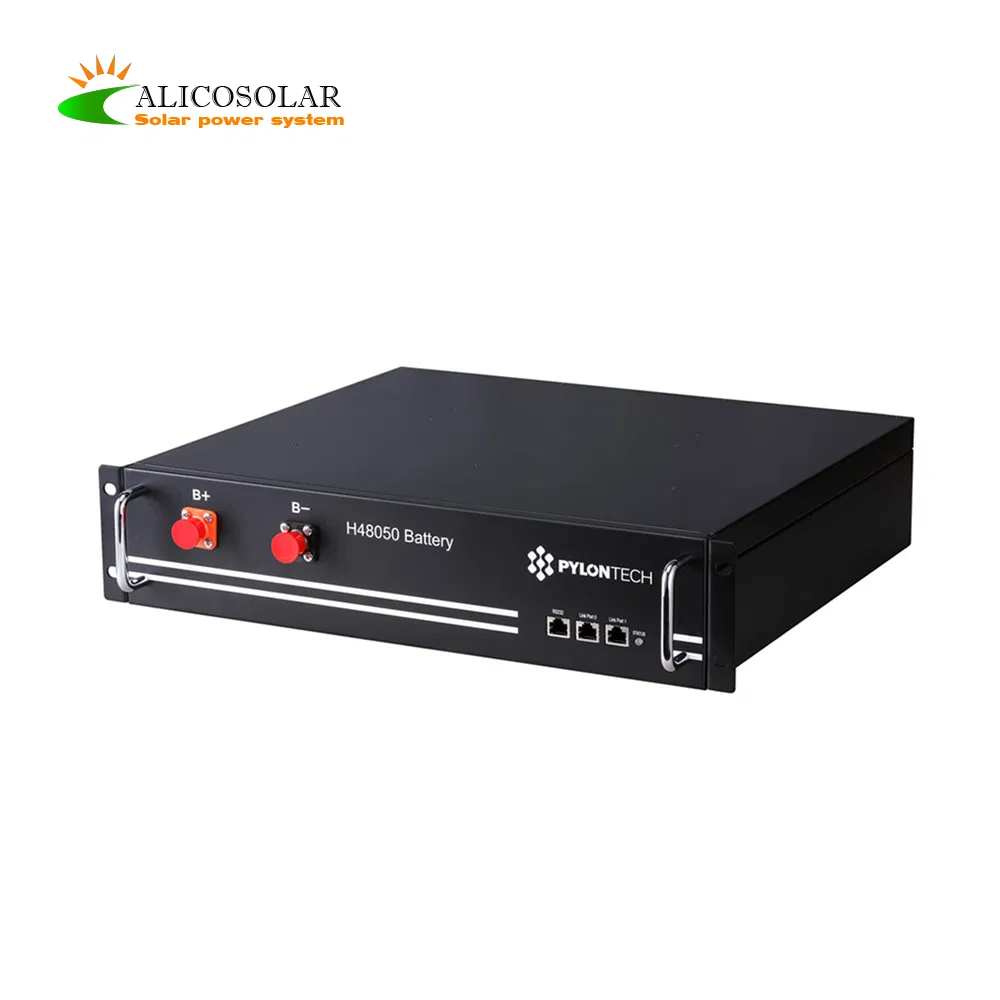

lithium battery	48V 100AH	4 Pieces
DC Cable	4mm2	200 Meters
MC4 Connector	4mm2 1000VDC	8 Pairs
Mounting System	Standards Pitched Roof ( Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Note: Product dimensions and physical appearance in this data sheet are nominal. Alicosolar reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

1055 Home Use on Grid off Grid Solar PV Solar Power System for Home 12kw

1.Solar Panel

2.Off Grid Inverter

3.Switch Box

4.Power Meter

1055 Home Use on Grid off Grid Solar PV Solar Power System for Home 12kw

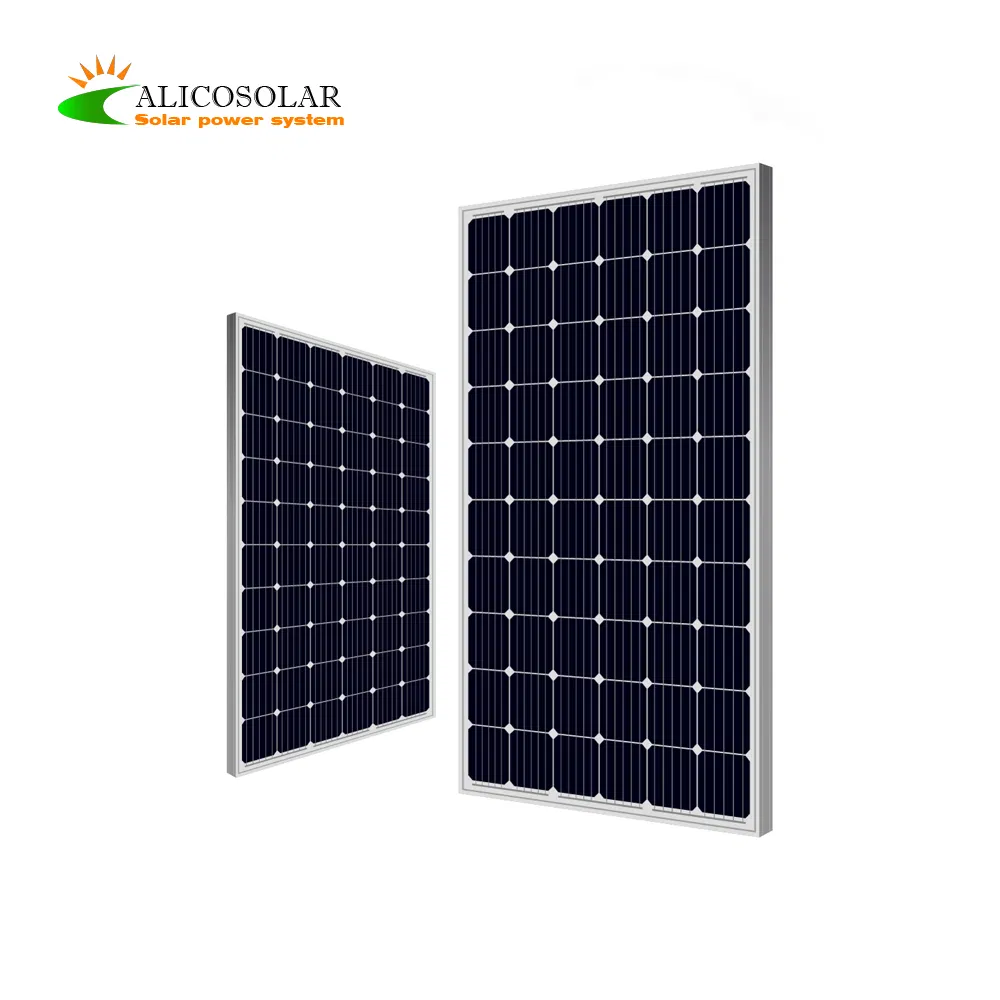

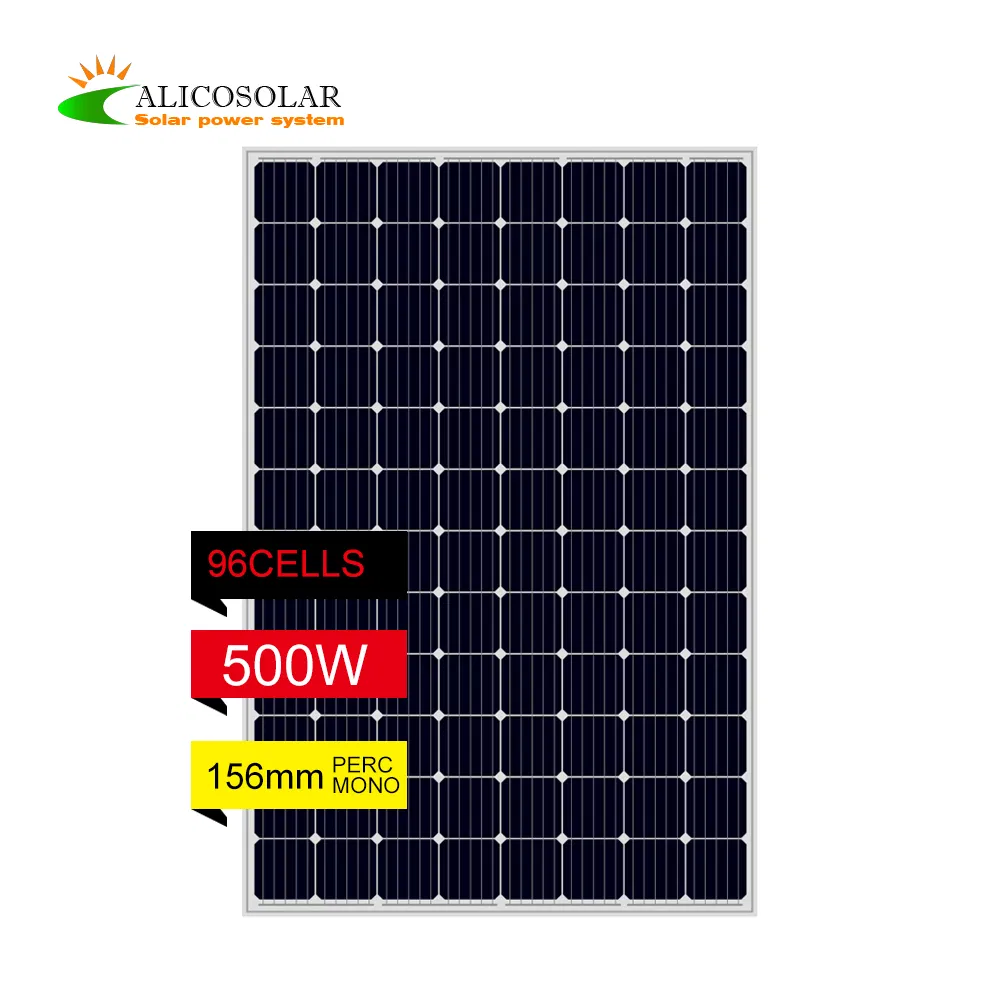

Mono Solar Panels

Peak Power Watts: 500W (ASM660500)
Maximum Power Voltage: 48.63V
Maximum Power Current: 10.28A
Open Circuit Voltage:59.01 V
Short Circuit Current: 10.87A
Dimensions:1956×1310×40 mm
Weight:26 kg

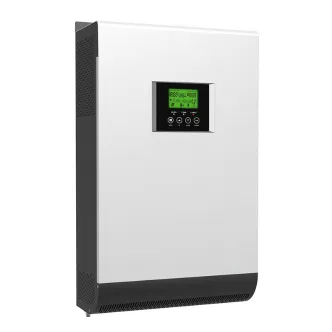

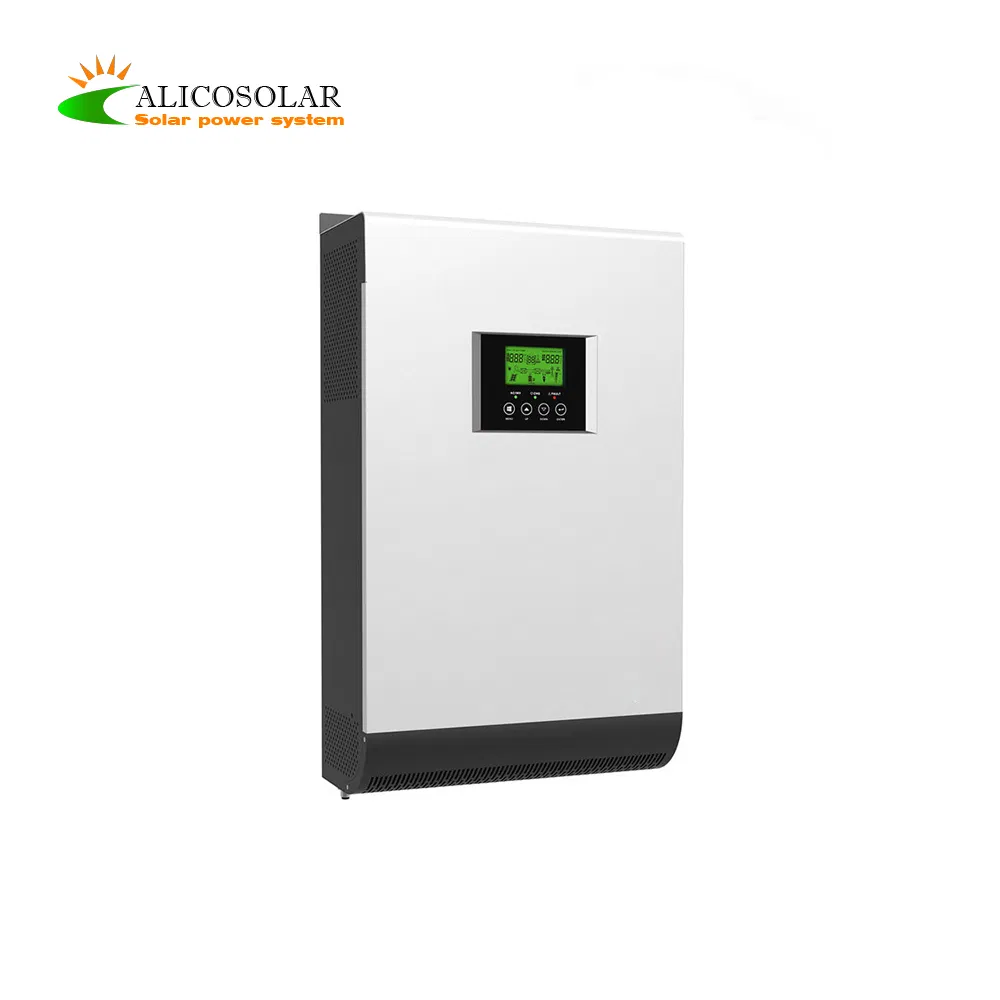

Off-Grid Inverter

Max.DC Input Power: 8.5KW
Max. DCInput Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

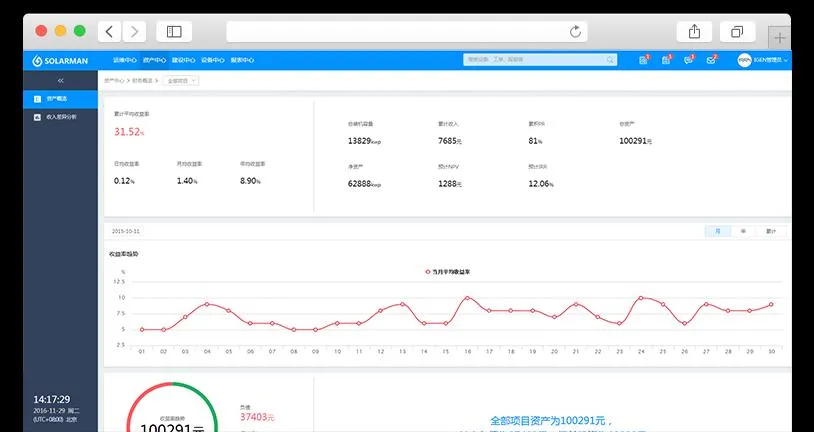

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod

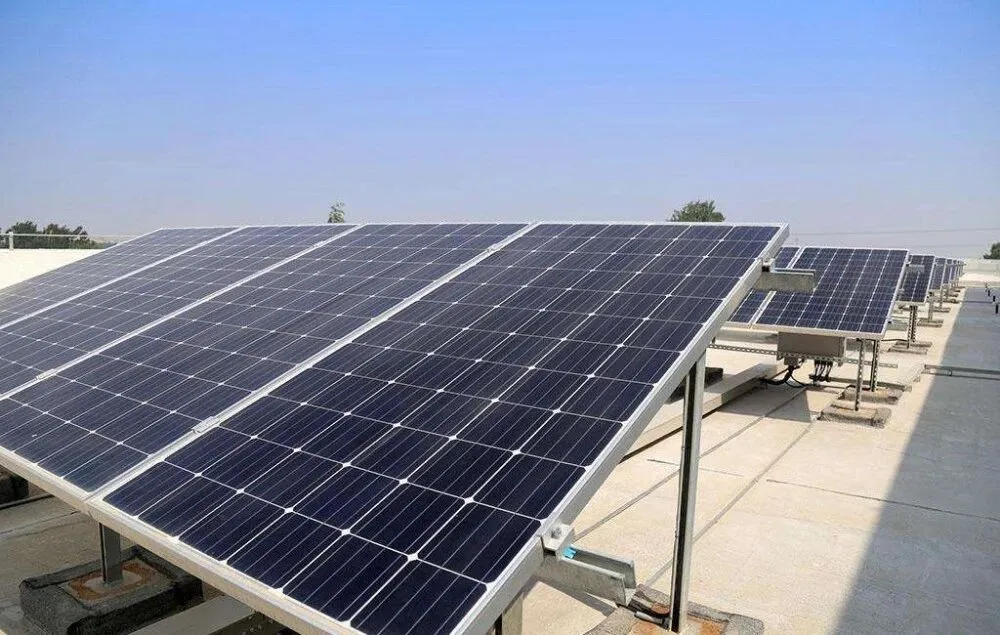

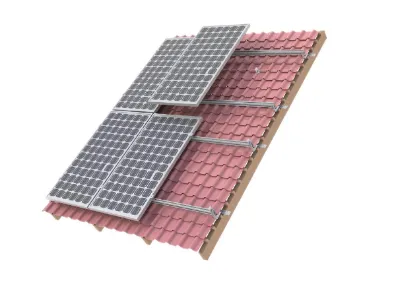

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

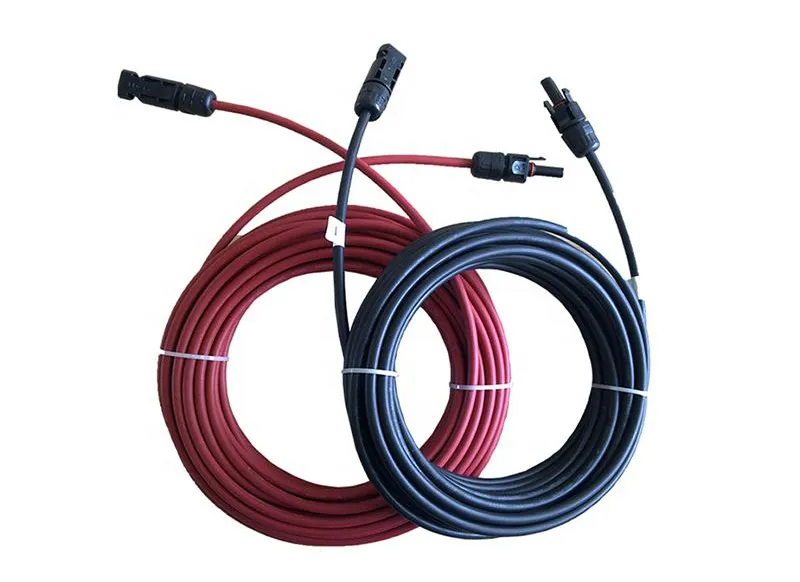

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
