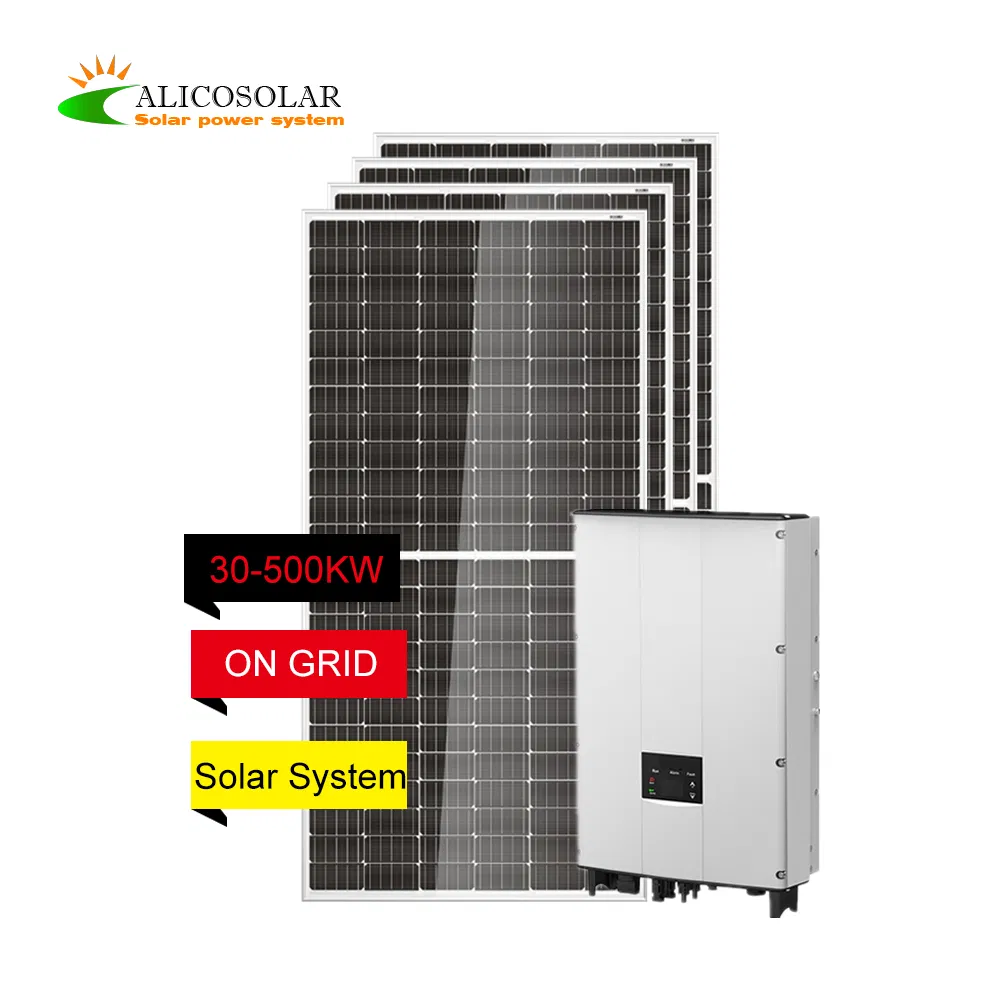

1051 China Manufacturer Big on Grid Solar System Government Projects 1 MW 5wm 10 MW
Product ParametersName1MW On-grid DescriptionQuantitySolar PanelMono/Poly 500W 96 Cells PV Module2000PiecesDC Disconnect SwitchIP66 1000VDC 16A10 SetOn-Grid Inverter100KW Single Phase/three phase10 SetAC Disconnect SwitchIP 66 1000VDC 32A1 SetDC Cable4mm210000 MetersMC4 Connector4mm2 1000VDC100 Pair......
Send Inquiry
Product Description
Name | 1MW On-grid Description | Quantity |
Solar Panel | Mono/Poly 500W 96 Cells PV Module | 2000Pieces |
DC Disconnect Switch | IP66 1000VDC 16A | 10 Set |
On-Grid Inverter | 100KW Single Phase/three phase | 10 Set |
AC Disconnect Switch | IP 66 1000VDC 32A | 1 Set |
DC Cable | 4mm2 | 10000 Meters |
MC4 Connector | 4mm2 1000VDC | 100 Pairs |
Mounting System | Standards Pitched Roof ( Customized Optional) | 1 Set |
PV Tools | Wire Cable Cutter & Stripper, Disassembly Tool | 1 Set |
1.Solar Panel | 2.On Grid Inverter | 3.Switch Box | 4.Power Meter |

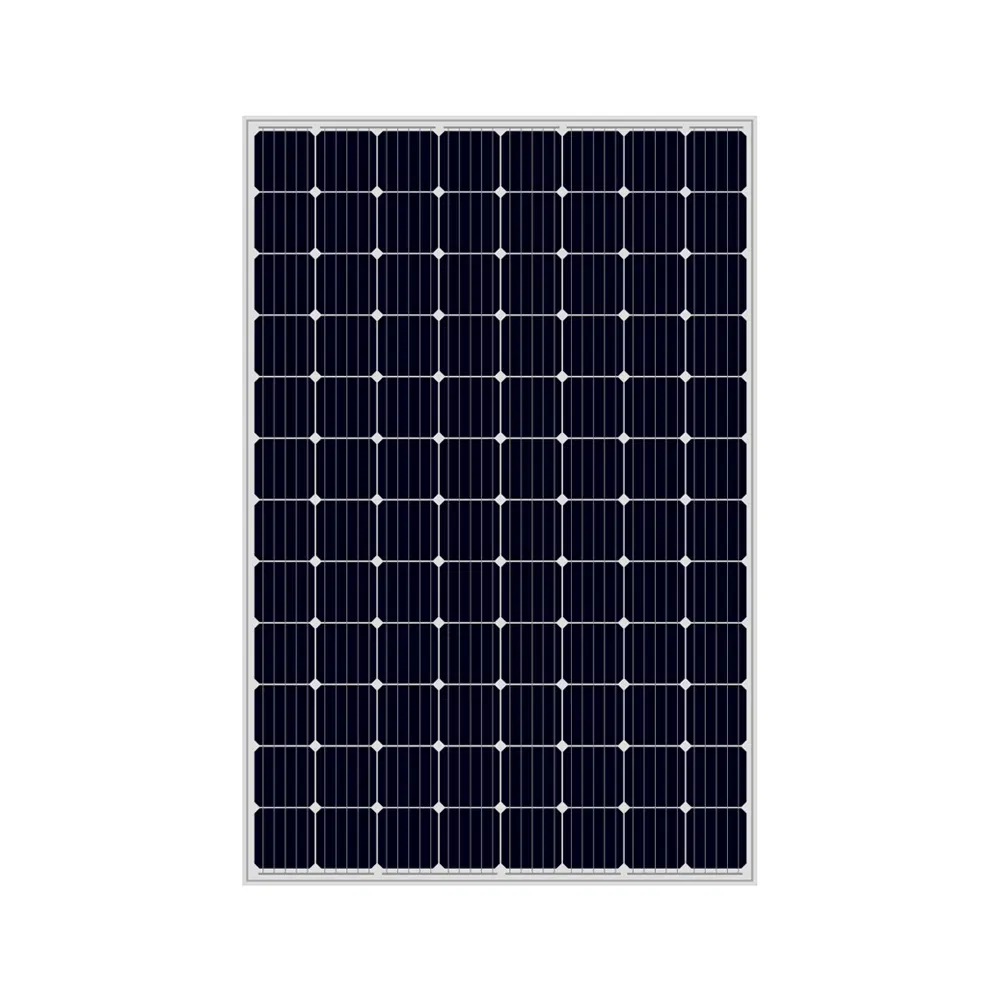

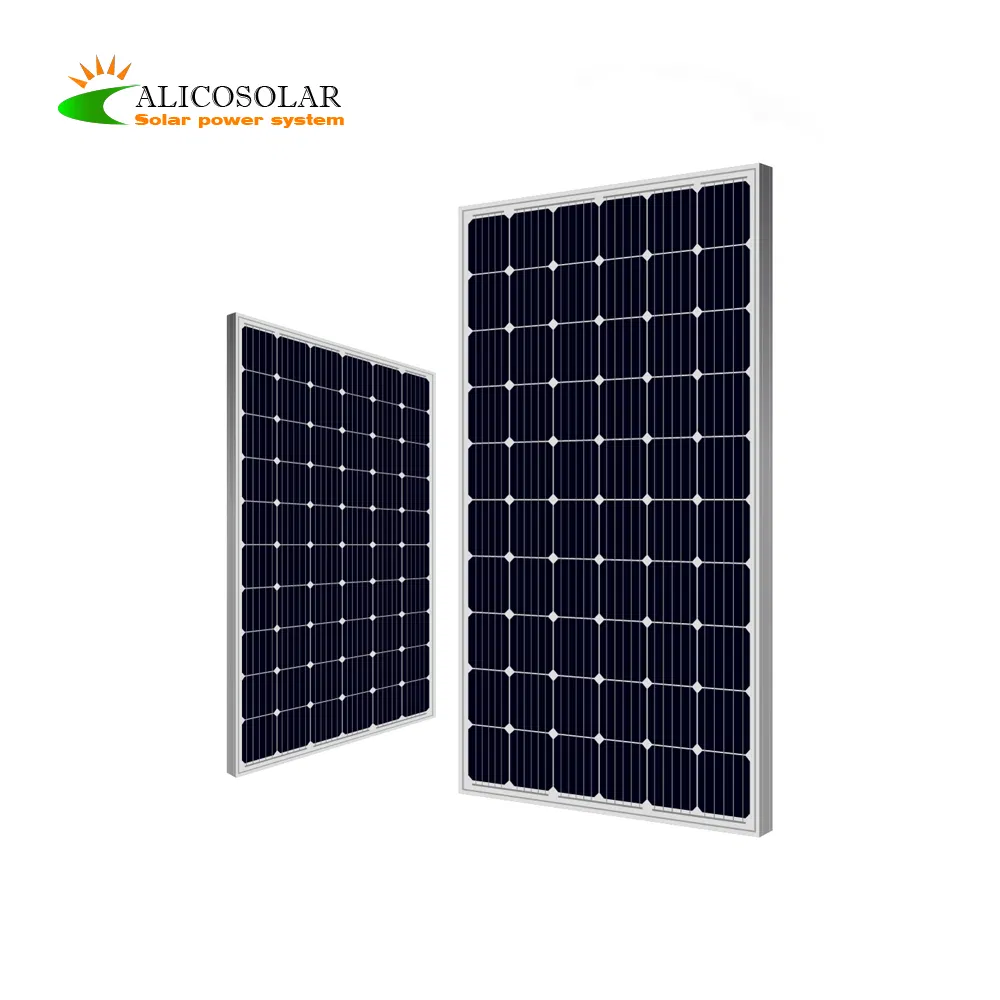

Mono Solar Panels
Peak Power Watts: 500W
Maximum Power Voltage: 48.63V
Maximum Power Current: 10.27A
Open Circuit Voltage: 59.01V
Short Circuit Current: 10.87A
Dimensions:1956×1310× 40mm
Weight:26kg (41.0 lb)

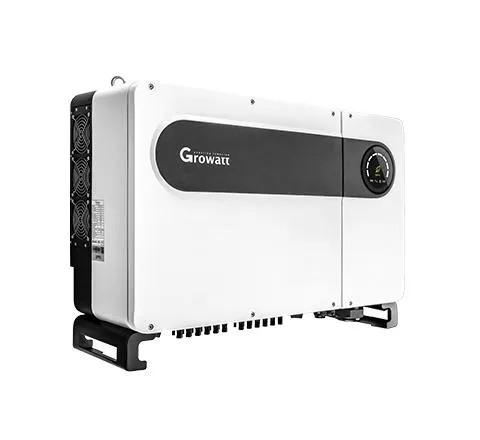

MAX 50-80KTL3LV
Max.DC Input Power: 65000W
Max. DCInput Voltage: 1100V
MPPT Voltage Range: 200-1000V
Rated Grid Voltage: 230V/-400V
Number of MPPT trackers/strings per MPPT tracker:6/2
Warranty: 5 Years /10 Years
Wifi Stick For STD, Lan & GPRS Optional.

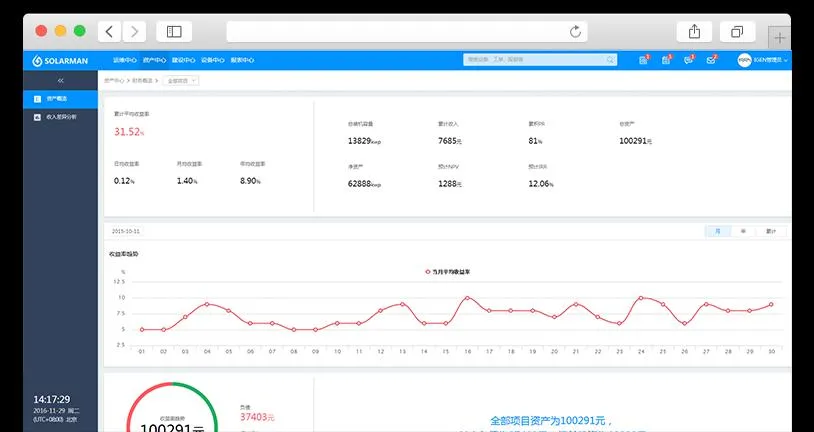

Remote Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS.
App Available for PC, IOS & Andriod

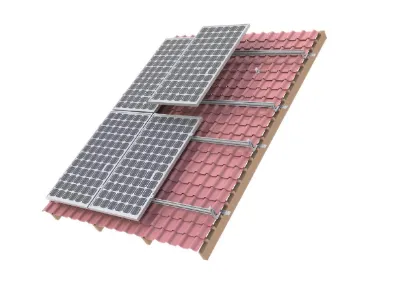

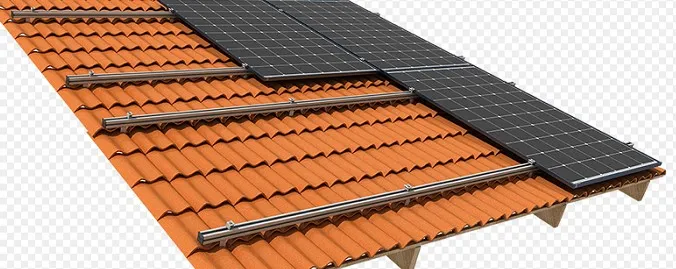

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

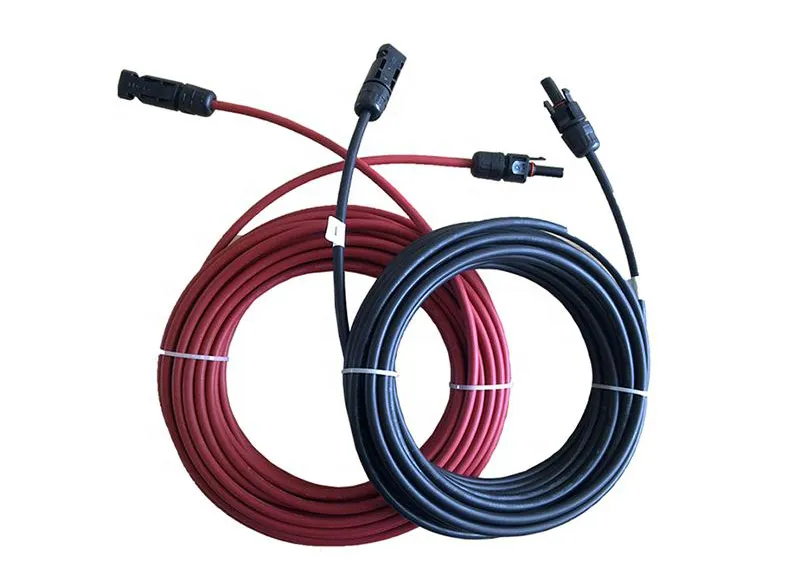

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

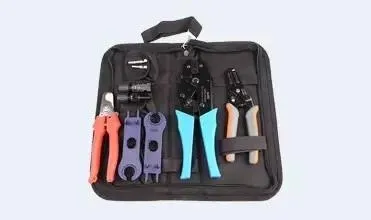

PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

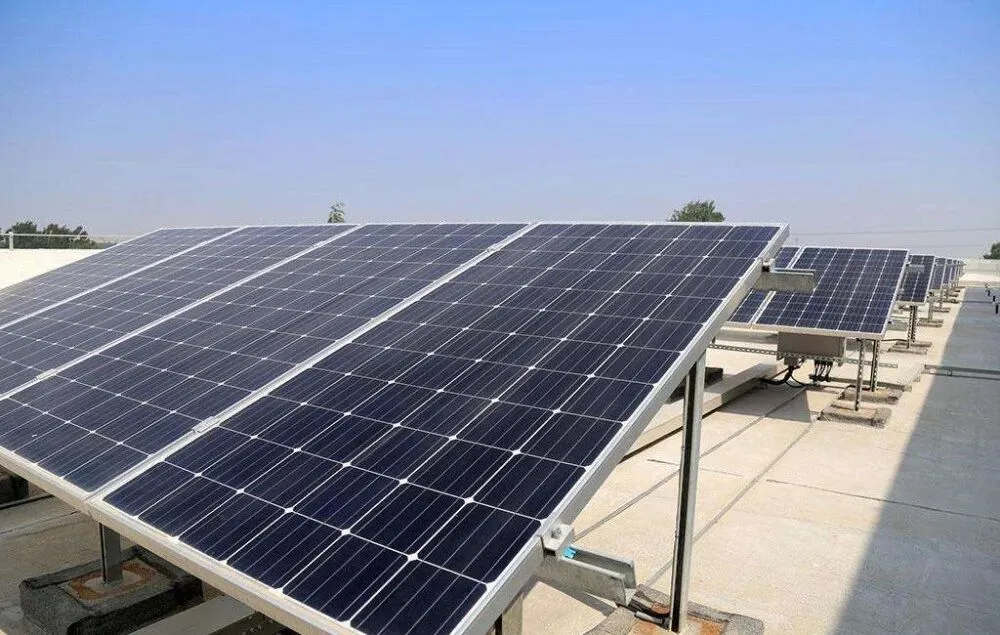

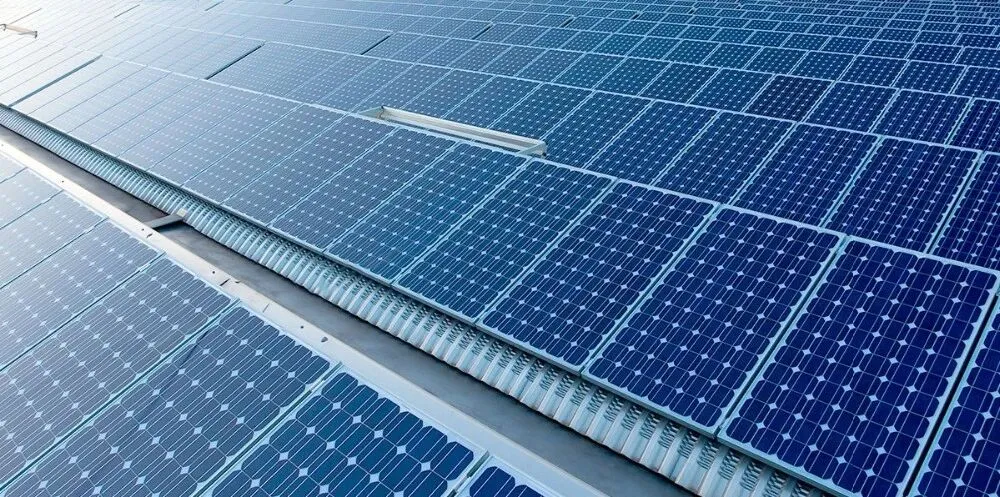

12MW Commercial Metal Roof Solar Plant in Changzhou City, Jiangsu Province, China, Finished in Nov, 2015

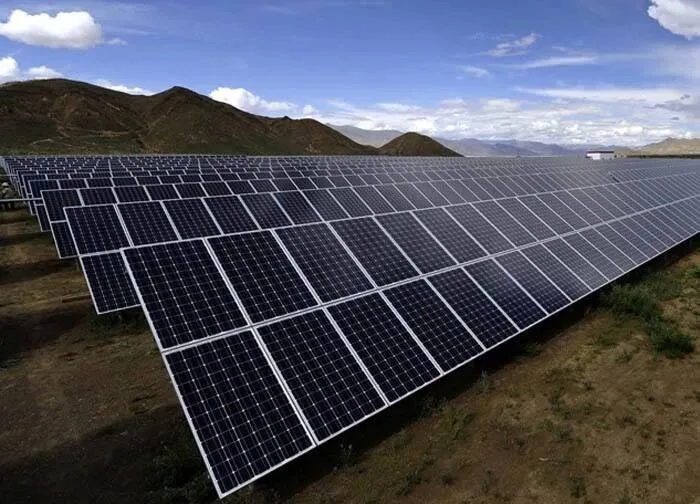

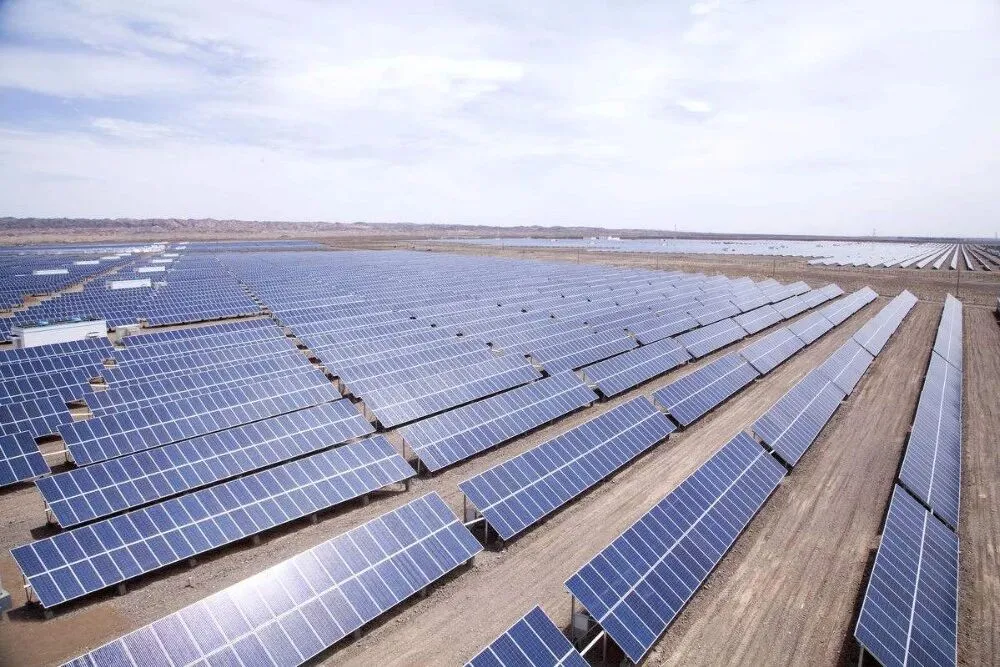

20MW Ground Solar Plant in USA
50MW Solar Plant in Brazil
