Apricus 240L Solar Heating System Compact Solar Water Heater

                                             ET&HP Pressurized Solar Water Heater


Product Introduction
Wombat heat pipe solar water heaters are an all-in-one solar water heating system. They are ideal for supplying pressurized hot water to residential customers who require a sustainable, easy to install, high efficiency and reliable solar hot water solution.
In high solar radiation areas, Wombat solar water heaters can be the sole energy source for hot water supply. In cooler climates Wombat systems can provide pre-heated hot water which saves traditional electric or gas energy costs. The tank has an optional electrical heating element for boosting.

Basic Operation

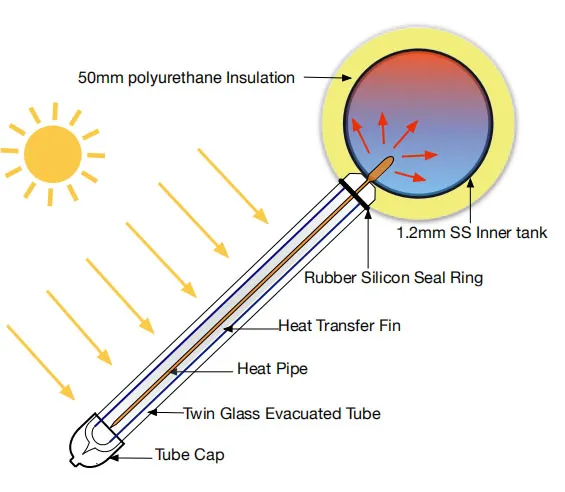

Evacuated tubes absorb sunlight and convert it to usable heat. A vacuum between the two glass layers insulates against heat loss improvement efficiency. The heat transfer fin helps to transfer heat from the evacuated tube to the to the copper heat pipe. The heat pipe contains a small amount liquid which forms steam when heated, rapidly transferring the heat up to the water in the storage tank.




Features
• Twin glass evacuated tubes (passive solar tracking)
• Freeze resistant heat pipes
• Well insulated solar storage tank
• Easy plug-in dry connect installation of heat pipes
• 3 year limited warranty on compact system
• 10 year limited warranty on evacuated tubes
• Efficient performance at high differential temperatures

Materials of Construction
Evacuated Tubes:  Borosilicate 3.3 Glass
Absorber:  Cu-SS-AL/N
Heat Pipes:  High purity copper
Heat Transfer Fins:  Aluminum
Inner Tank:  Food grade 1.2mm SUS304
Outer Tank:  PVDF coating tank
Insulation:  High density polyurethane 50mm
Mounting Frame:  Galvanized steel 1.5mm or 304 SS Fasteners
Max. Pressure: 6 bar






Company Overview
Apricus is a leading designer and manufacturer of solar hot water and hydronic heating products.Founded in 2003 by Australian Mick Humphreys with a specific focus on solar thermal solutions, Apricus has since grown into a global company with distribution and support offices worldwide.

Apricus Quality Policy
Apricus is dedicated to providing families and companies with solar water heating systems that are affordable and meet the requirements of the market.

Apricus products must be of excellent quality meeting relevant industry standards and be backed by a high level of customer service and competitive warranty support.

Apricus as a company strives to play a leading role in the solar thermal industry, with a focus on continual improvement of products, management and service, while minimizing the environmental impact of all products and operations.
