Solar Pool Heating Flat Plate Collector/Flat Plate High Pressure Split Blue Absorber Solar Collector

Product Description

Solar Pool Heating Flat Plate Collector/Flat Plate High Pressure Split Blue Absorber Solar Collector
We are a professional manufacturer of flat plate collector. Flat plate solar collector and household solar hot water systems based on flat plate panel(solar heater collector). With high quality of solar water collector,
flat plate collectors for sale many years. Panel Solar Collector export to Russia, Indonisia and Canada etc.
Solar Pool Heating Flat Plate Collector/Flat Plate High Pressure Split Blue Absorber Solar Collector

We have long time manufacturing experience of renewable energy water heating industry, our production is based on innovated design, advanced technology, and top-quality materials ensure the very best efficiency and long operating life.
Solar Pool Heating Flat Plate Collector/Flat Plate High Pressure Split Blue Absorber Solar Collector

We expect to supply you flat plate collector. Flat plate solar collectors and household solar hot water systems based on flat plate panel. Solar Pool Heating Flat Plate Collector/Flat Plate High Pressure Split Blue Absorber Solar Collector

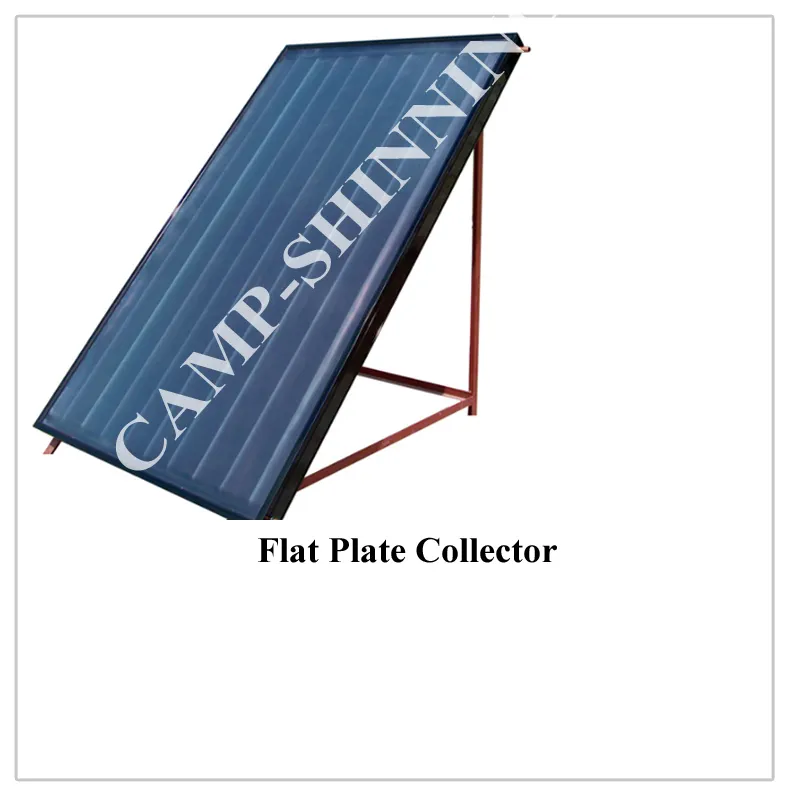

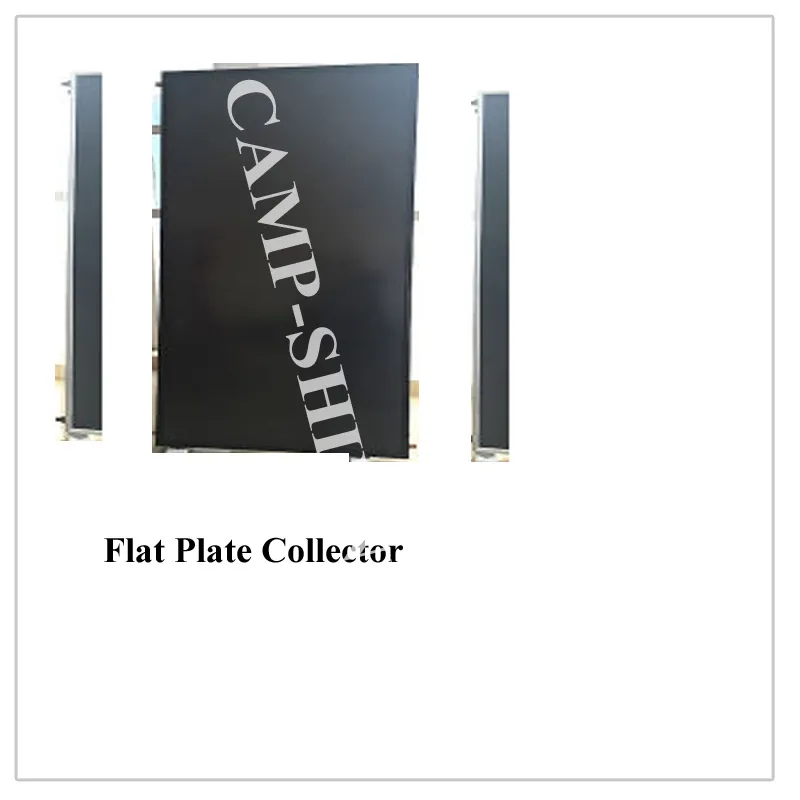

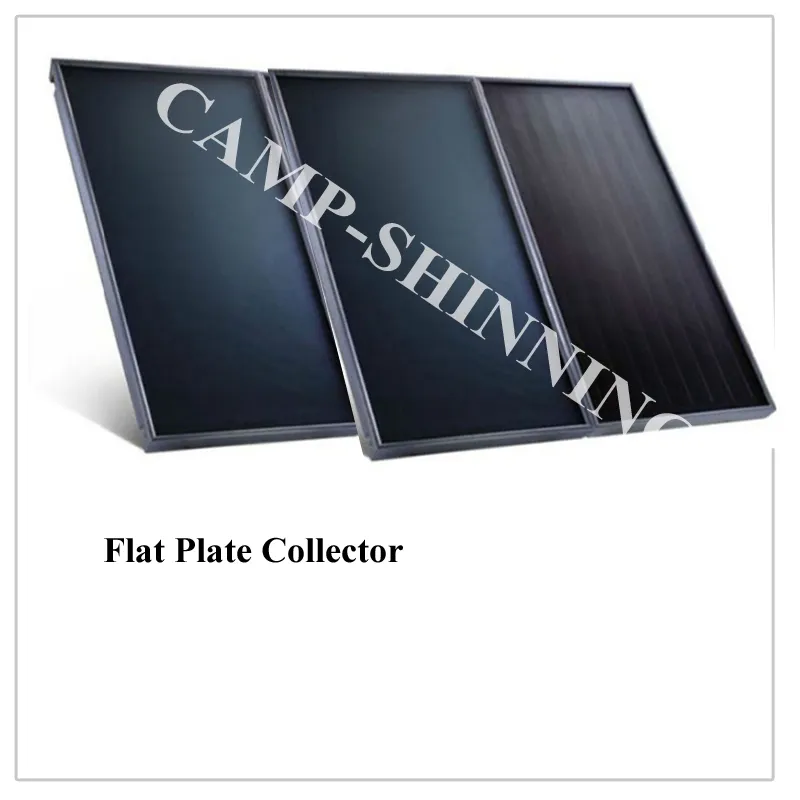

Flat plate collector
Description	Description
Dimension Lx W x T	2000x 1000 x 70 mm
Gross Area	2.00m2
Aperture Area	1.85m2
Absorptivity	95%(+_3%)
Emissivity	18%(+_5%)
Net Weight	34Kg
Max Working Pressure	0.6Mpa
Absorber
Dimension Lx W x T	1850x 140 x 0.41 mm
Materials	Aluminum
Surface Treatment	Anodization
Construction Type	Fin & Tubes( Ultrasonic Welding)
Header Tube Materials	Coopper TP2
Riser tube materials	Coopper TP2
Header Tube Size	22 X 0.6 X 1060mm 2pcs
Riser tube Size	9.5 X 0.4 X 1888 mm 7pcs
Thermal Insulation
Material	24K fibre Glass( Black Backing)
Thickness	Back: 50mm
Conductivity(W/mK)	≤0.048W/mK under test temperature 70C
Casing
Frame	Aluminum Alloy0.9mm
Color	Bronze
Back plate	Galvanized steel Plate 0.3mm
Sealing Gasket	Rubber

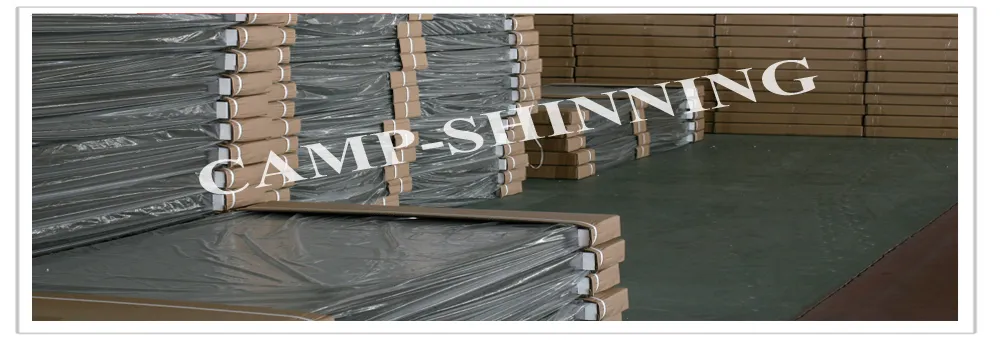

Loading Sets
20GP Container	155pcs
40HQ Container	318pcs
