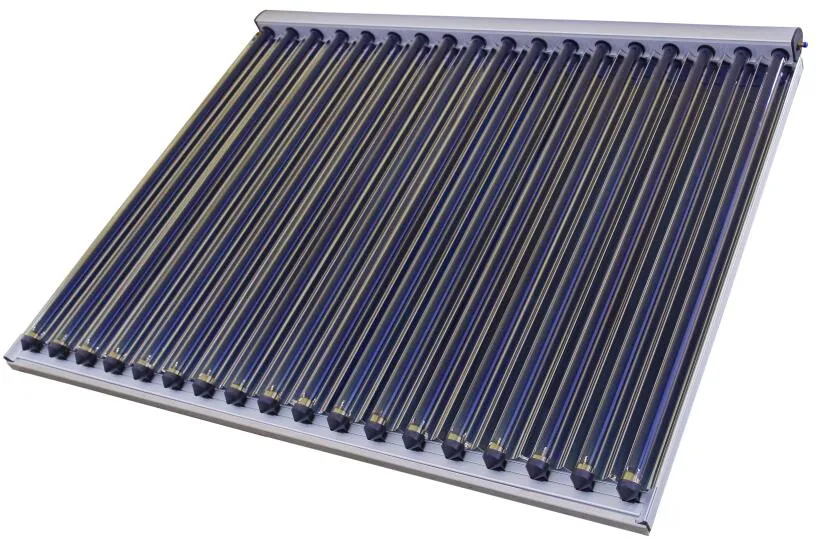

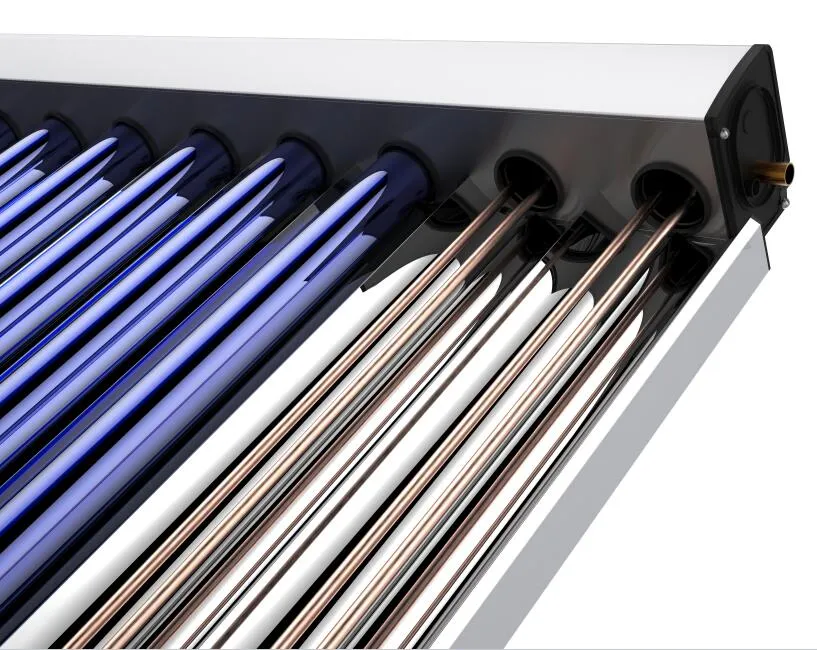

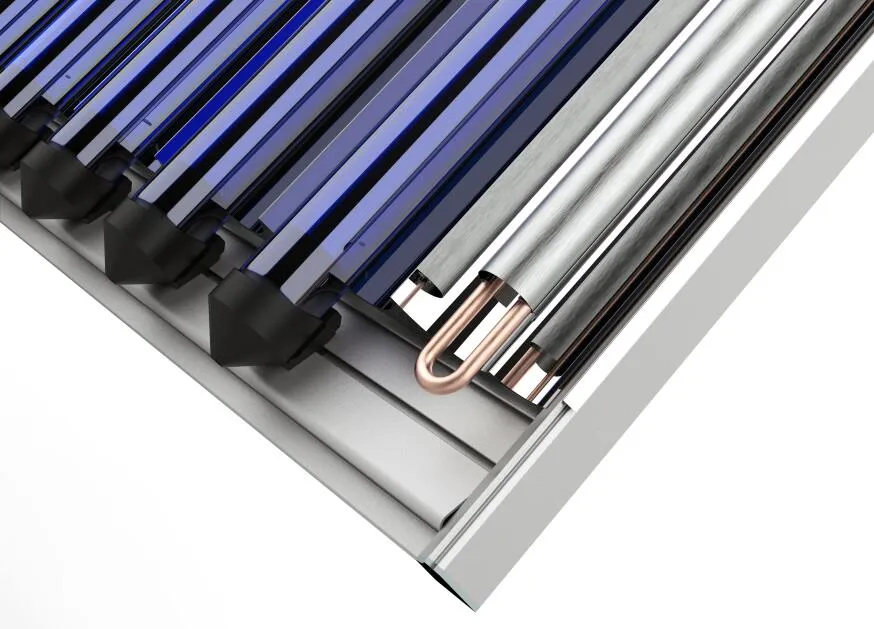

High Energy Yield CPC1518 Solar Collector, Evacuated Tube Type
The CPC1512 solar collector could be applied for household, industrial and commercial areas, providing hot water, room heating, air conditioning, steam-preheating, industrial process heating solutions, supplying hot water up to more than 95 celcius degree, with still high temperature in the medium a......
Send Inquiry
Product Description
The CPC1512 solar collector could be applied for household, industrial and commercial areas, providing hot water, room heating, air conditioning, steam-preheating, industrial process heating solutions, supplying hot water up to more than 95 celcius degree, with still high temperature in the medium and high temperature zone.

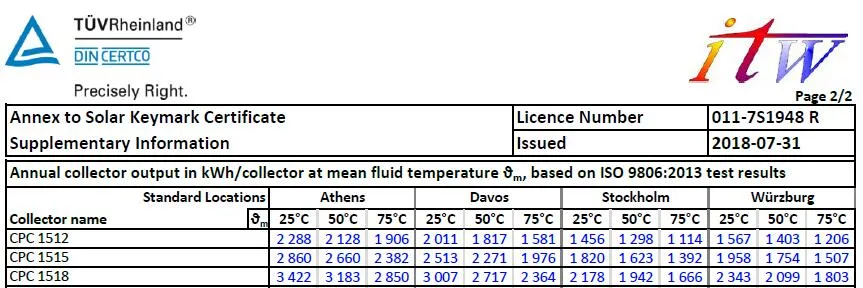

Annual energy yield under Solar Keymark
Main specifications
| CPC1512 | CPC1518 | XL1921 | ||||
| Dimension | 1392*1640*103mm | 2082*1640*103mm | 2427*2057*103mm | |||
| Gross area | 2.28 m2 | 3.41 m2 | 4.99 m2 | |||
| Aperture area | 2 m2 | 3 m2 | 4.47 m2 | |||
| Number of evacuated tube | 12 | 18 | 21 | |||
| Outer diameter / length of evacuated tube | φ47/1500mm | φ47/1500mm | φ47/1900mm | |||
| Insulation | Rock wool | Rock wool | Rock wool | |||
| Efficiency based on gross area, Solar Keymark ISO 9806:2013 | 56.1% | 56.1% | 56% | |||
| Annual collector yield under Solar Keymark, based on ISO 9806:2013 (at mean fluid temperature of 50ºC, location Würzburg) kWh | 1403 | 2099 | 3071 | |||
| Maximum operation pressure, Mpa | 0.8 | 0.8 | 0.8 | |||
| Stagnation temperature | 345ºC | 345ºC | 345ºC | |||
| Collector Contents, L | 1.6 | 2.4 | 3.2 | |||
| Connection diameter, mm | 15 | 15 | 15 | |||
| Allowed heat transfer medium | Water | Water | Water |

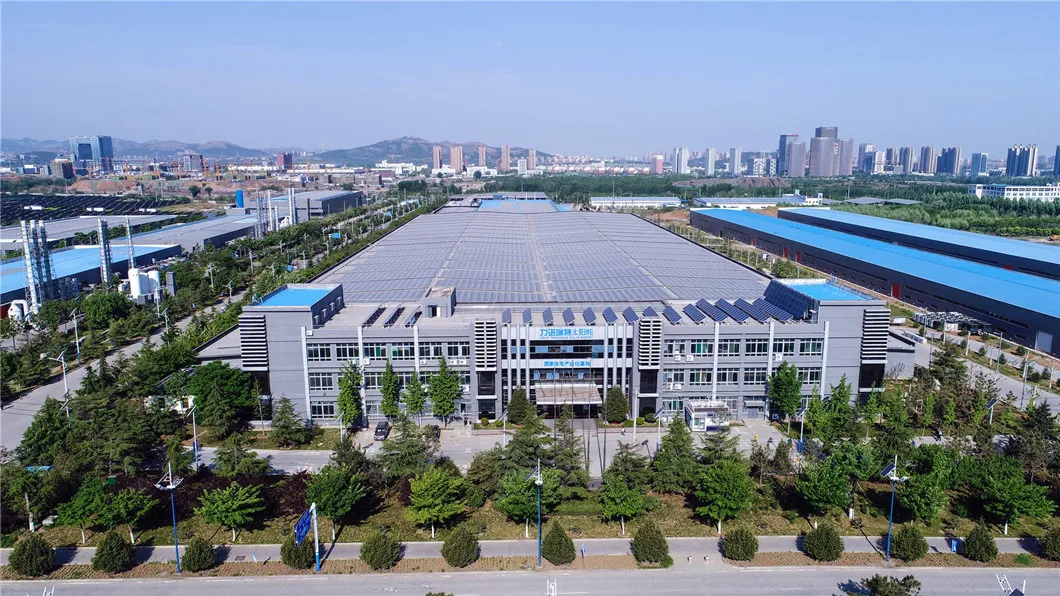

Workshop

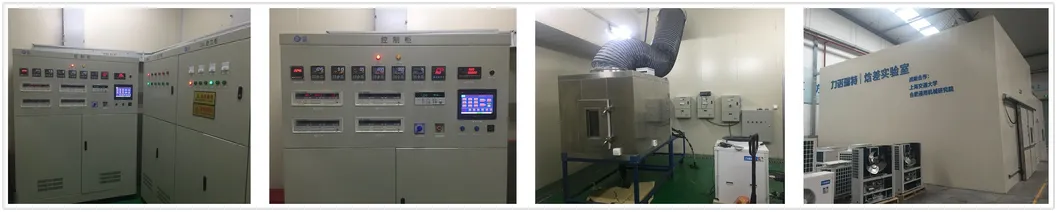

Laboratory

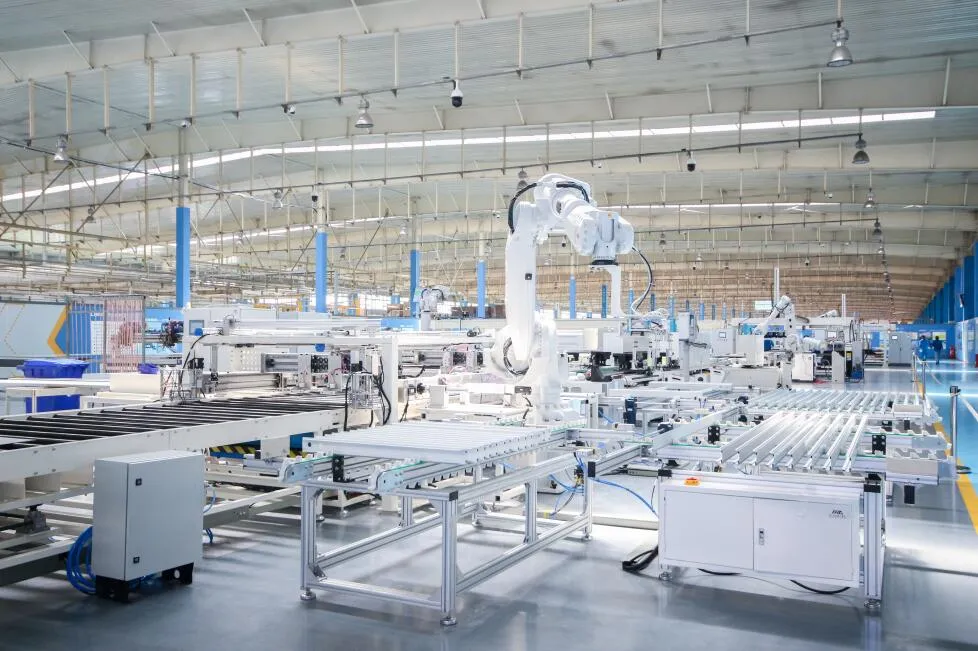

Production line
