21PCS Large Scale OEM XL Evacuated Tube Collectors with CPC Reflector
Scope of DeliveryFully pre-assembled unit comprising- 14, 18 or 21 evacuated tubes based on the thermos flask principle- manifold with direct flow heat conduction unit and dry tube connection- CPC-reflectorCollectors are packed in individual boxes. In addition, there is a sun protection sheet over t......
Send Inquiry
Product Description
Scope of Delivery
Fully pre-assembled unit comprising
- 14, 18 or 21 evacuated tubes based on the thermos flask principle
- manifold with direct flow heat conduction unit and dry tube connection
- CPC-reflector
Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes.
Installation types

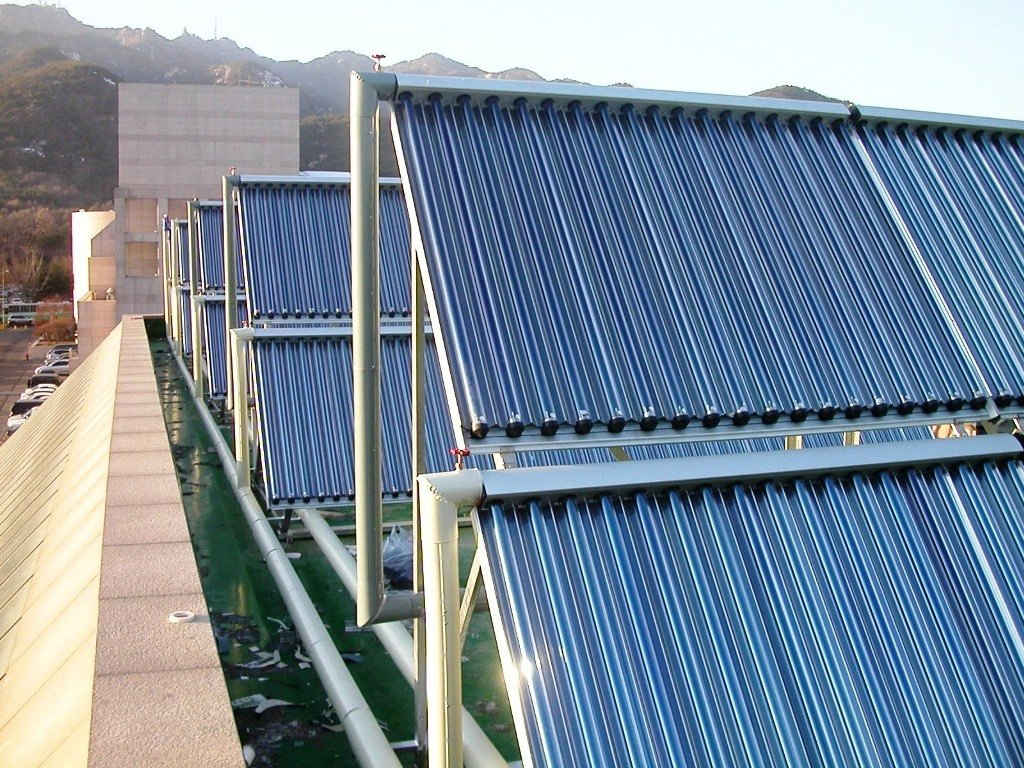

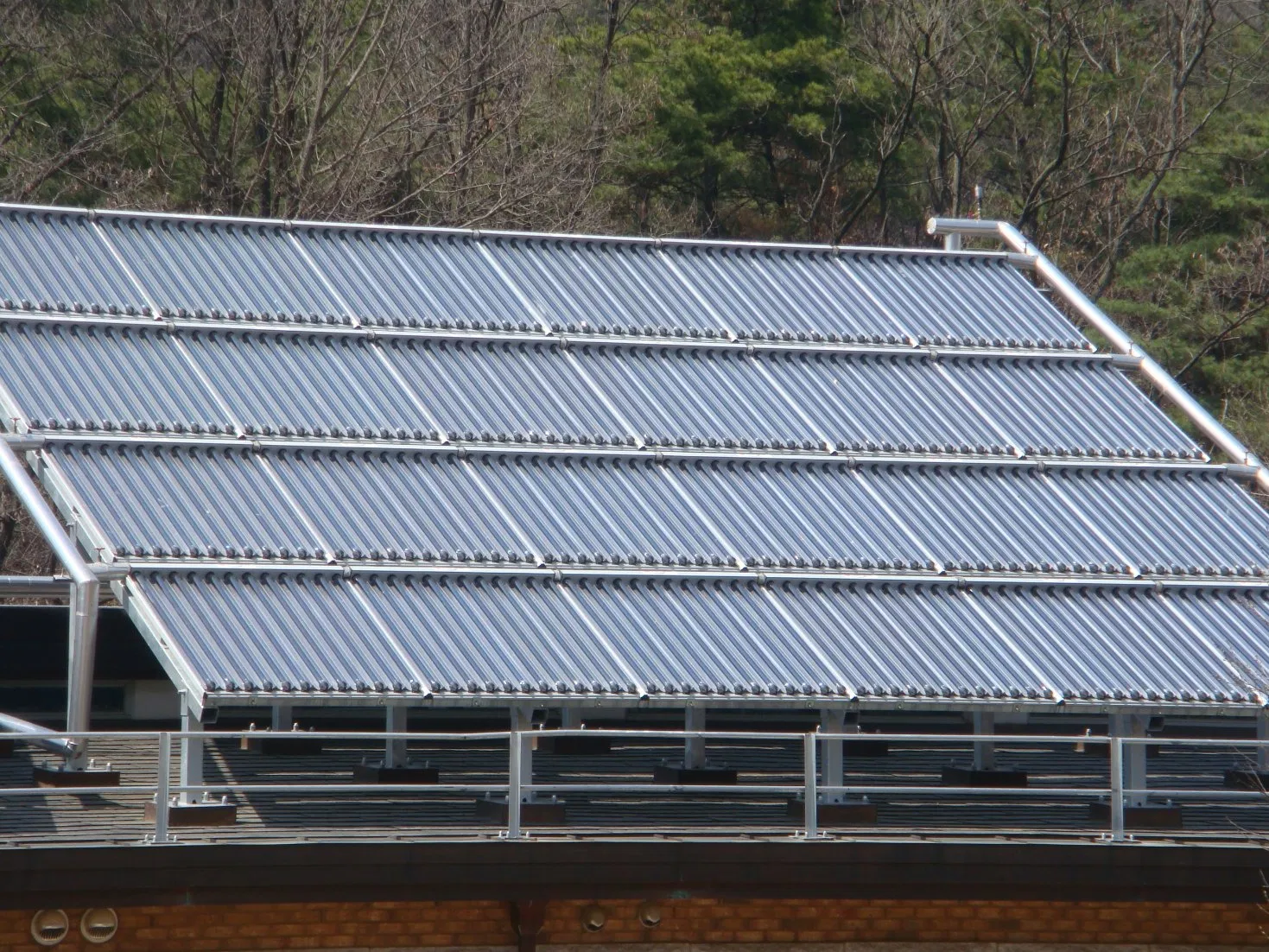

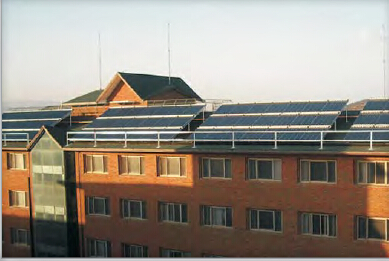

- Pitched roof, flat roof, on-wall
Advantages and benefits
- Short installation times due to complete pre-assembled collectors.
- Simple and reliable connection technology in order to extend several collectors side by side through pre-assembled screw connections. Further tubing and an extensive thermal insulation is not necessary.
- Integrated return pipe and highly efficient thermal insulation.
- Manageable module sizes for a very high performance and a quick and easy installation.
- Flow and return pipes may be fitted on the left or the right side of the manifold.
- High flexibility due to the different widths and lengths of the collectors.
- Quick and easy exchange of the evacuated tubes without using any tools.
Performance characteristics
- Low pressure loss allows several modules to be connected in series
- Minimum of soldering points ensures a high leakage safety
- Well-known indestructibility of Ritter Solar tubes confirmed by the hailstone test DIN EN 12975-2
- High energy yield in the transitional period and winter
- In wintery conditions with a 400 W/m² Irradiation and 0 ° C air temperature at a temperature of 20 ° C, Ritter Solar evacuated tube collectors already have a higher energy yield than flat collectors.
- Extremely low heat loss due to the high vacuum.
- Outstanding design.
Specification
Fully pre-assembled unit comprising
- 14, 18 or 21 evacuated tubes based on the thermos flask principle
- manifold with direct flow heat conduction unit and dry tube connection
- CPC-reflector
Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated tubes.
Installation types
- Pitched roof, flat roof, on-wall
Advantages and benefits
- Short installation times due to complete pre-assembled collectors.
- Simple and reliable connection technology in order to extend several collectors side by side through pre-assembled screw connections. Further tubing and an extensive thermal insulation is not necessary.
- Integrated return pipe and highly efficient thermal insulation.
- Manageable module sizes for a very high performance and a quick and easy installation.
- Flow and return pipes may be fitted on the left or the right side of the manifold.
- High flexibility due to the different widths and lengths of the collectors.
- Quick and easy exchange of the evacuated tubes without using any tools.
Performance characteristics
- Low pressure loss allows several modules to be connected in series
- Minimum of soldering points ensures a high leakage safety
- Well-known indestructibility of Ritter Solar tubes confirmed by the hailstone test DIN EN 12975-2
- High energy yield in the transitional period and winter
- In wintery conditions with a 400 W/m² Irradiation and 0 ° C air temperature at a temperature of 20 ° C, Ritter Solar evacuated tube collectors already have a higher energy yield than flat collectors.
- Extremely low heat loss due to the high vacuum.
- Outstanding design.
Specification
| Series | CPC OEM XL 1521 | |
| Number of evacuated tubes | 21 | |
| η0 in relation to aperture, EN 12975 | % | 64.2 |
| a1 with wind, in relation to aperture | W/(m2k) | 0.89 |
| a2 with wind, in relation to aperture | W/(m2k2) | 0.001 |
| Yield forecast (location Wurzburg, Germany, reference area 3 m2) | kWh/m2a | 651 |
| Yield forecast (location Wurzburg, Germany, reference area 5 m2) | kWh/m2a | 589 |
| Grid dimensions (length x height x depth) | m | 2.42 x 1.64 x 0.1 |
| Gross surface area | m2 | 3.92 |
| Aperture area | m2 | 3.49 |
| Collector contents | l | 2.7 |
| Weight | kg | 61.2 |
| Max. working overpressure | bar | 10 |
| Max. stagnation temperature.1) | °C | 272 |
| Connection diameter, compression fitting | mm | 15 |
| Sensor sleeve | mm | 6 |
| Collector material | Al / Cu / glass / silicone / PBT / EPDM / TPE | |
| Glass tube material | borosilicate glass 3.3 | |
| Selective absorber coating material | aluminium nitride | |
| Glass tube (Ø ext./Ø int./wall thickn./tube lgth.) | mm | 47/37/1.6/1500 |
| Colour (aluminium frame profile, anodised) | aluminium grey | |
| Colour (plastic parts) | black | |
| Thermal shock test / ITW test number | 06COL513/1 | |
| Hailstone test according to DIN EN 12975-2 / TUV test number | 435/142448 | |
| EC type examination | Z-IS-DDK-MUC-07-08-100029919-003 | |
| DIN CERTCO registration number | 011-7S1950 R | |
